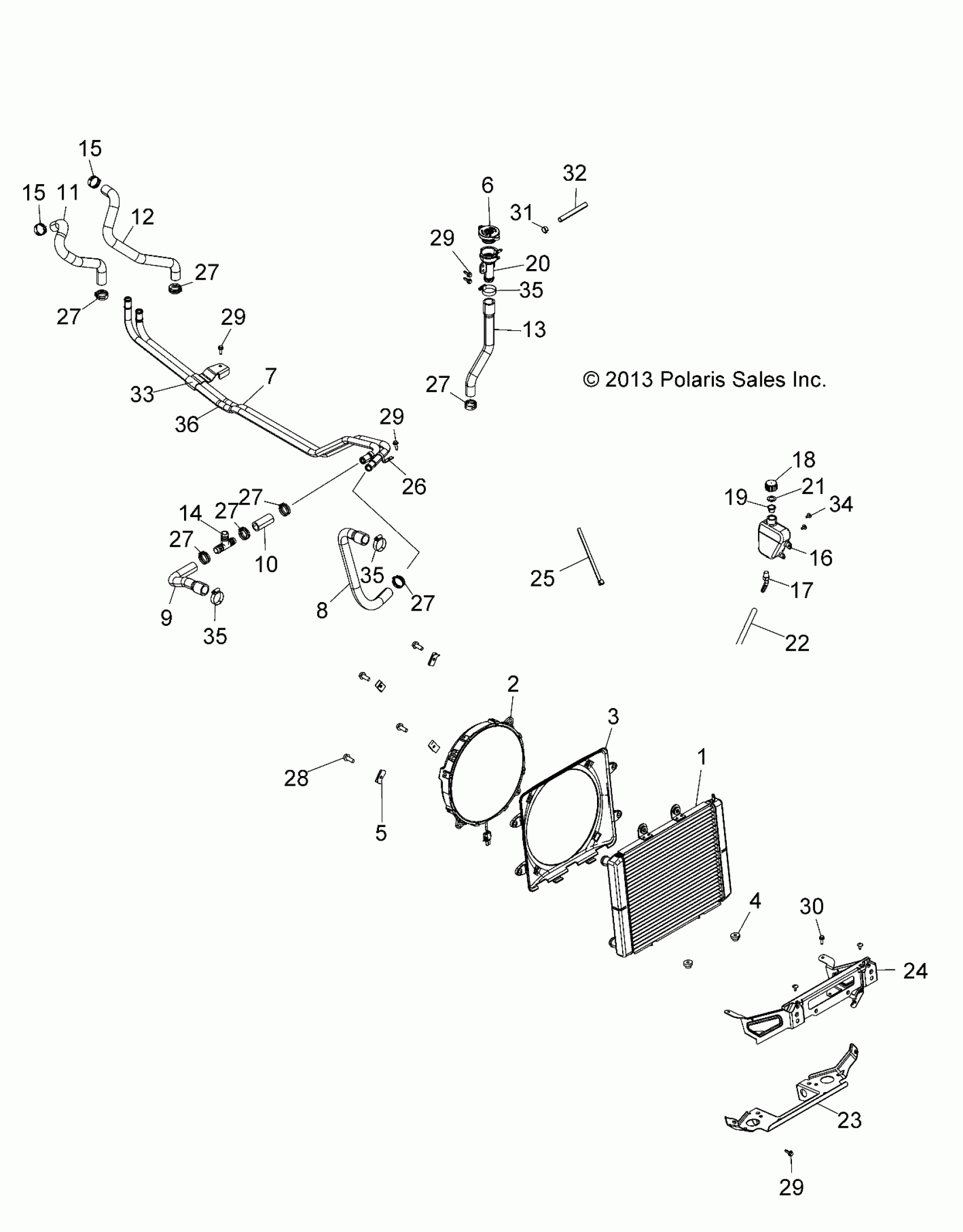

Polaris SPORTSMAN ACE - A14BH33AJ ENGINE, COOLING SYSTEM - A14BH33AJ (49ATVCOOL14325) Diagram

#

Description
Price

1

Asm., Radiator, Core

1240444

$561.57

2

ASM., FAN

2410413

$267.13

3

SHROUD, FAN

5437845

Unavailable

4

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

5

CLIP-"U",M6.0X1.0

7547366

$5.99

6

Cap, Pressure

1240508

$48.56

7

TUBE, COOLANT, ENGINE OUT

5138389

Unavailable

8

HOSE, COOLANT, FLARED

5414632

$56.65

9

HOSE, COOLANT, FLARED

5414633

$44.51

10

HOSE, COOLANT, FRONT

5414634

$15.37

11

HOSE, COOLANT, REAR

5414635

$48.56

12

HOSE, COOLANT, REAR

5414636

$48.56

13

HOSE, COOLANT, FRONT

5414637

$40.46

14

TEE, CONNECTOR

7052093

$8.73

15

CLAMP, HOSE

7080614

$7.14

15

CLAMP, HOSE

7080614

$7.14

16

TANK-SURGE

5436936

$80.94

17

FITTING, BARBED

7052065

$7.14

18

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

19

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

20

FILLER, REMOTE, COOLANT

5438110

Unavailable

21

GASKET-OVERFLOW CAP

5810279

$2.41

22

Line, Fuel

8450003-1525

Unavailable

23

MOUNT, RADIATOR, BLACK

5256171-067

Unavailable

24

MOUNT, RADIATOR, UPPER, BLACK

5256172-067

$106.65

25

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

26

CLAMP, COOLANT LINES

5258642

Unavailable

27

CLAMP, SPRINGBAND

7080841

$7.14

27

CLAMP, SPRINGBAND

7080841

$7.14

27

CLAMP, SPRINGBAND

7080841

$7.14

27

CLAMP, SPRINGBAND

7080841

$7.14

27

CLAMP, SPRINGBAND

7080841

$7.14

27

CLAMP, SPRINGBAND

7080841

$7.14

27

CLAMP, SPRINGBAND

7080841

$7.14

28

SCREW

7516822

$2.38

29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

29

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

30

SCREW

7519342

$1.99

31

HOSE CLAMP, RED

7080003

$1.19

32

HOSE

8450120-600

Unavailable

33

CLAMP, COOLANT LINES

5258169

$11.11

34

Screw

7512084

$1.19

35

Clamp, Springband

7080843

$3.97

35

Clamp, Springband

7080843

$3.97

35

Clamp, Springband

7080843

$3.97

36

TUBE, COOLANT, ENGINE IN

5138390

Unavailable
