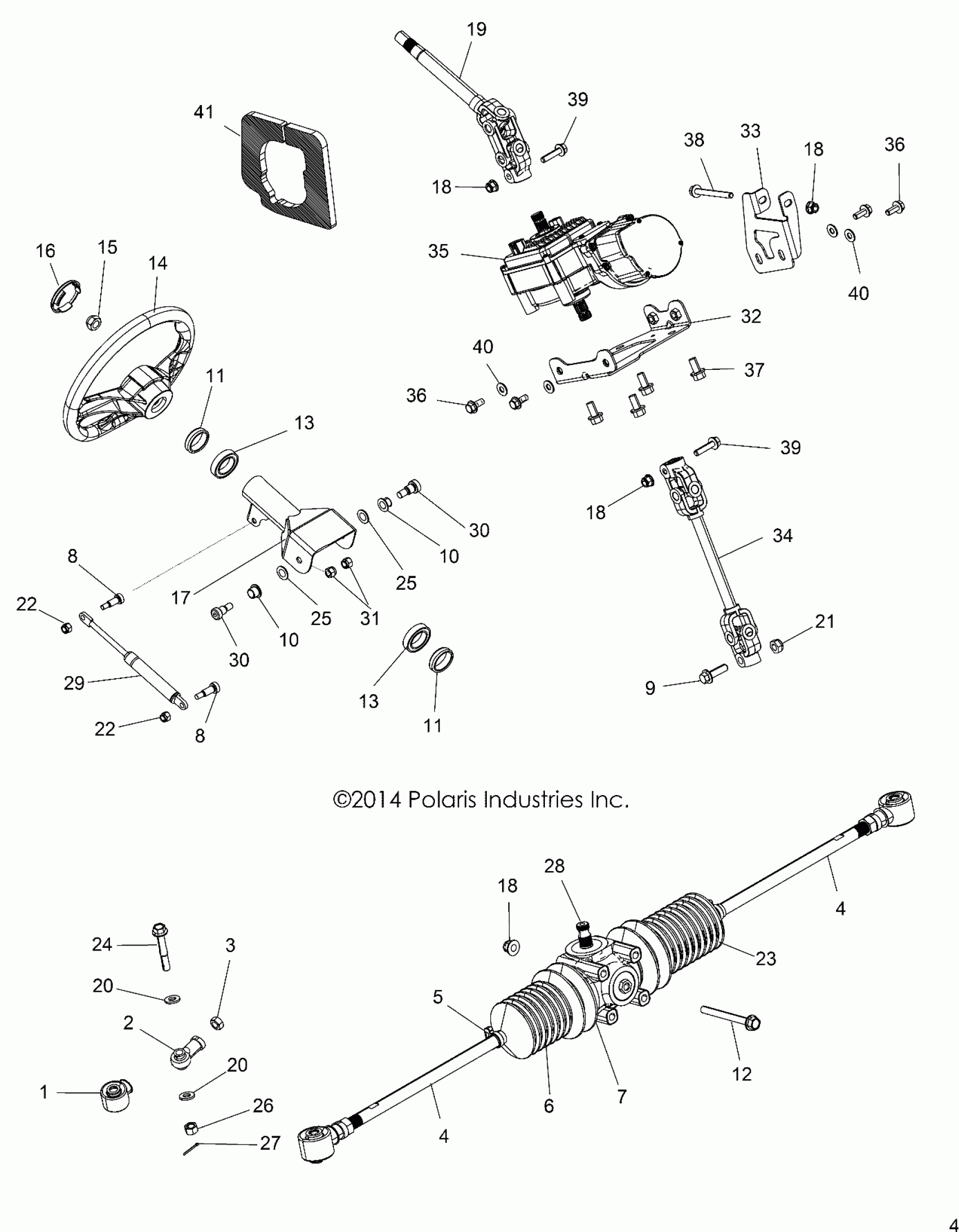

Polaris SPORTSMAN ACE 570 EFI - A15DAA57AJ/AH/EAK STEERING, STEERING ASM. - A15DAE57AK (49ATVSTEERING15570ACE) Diagram

#

Description
Price

1

BOOT, SEAL, ROD END

-------

Unavailable

2

Rod End

7061054

Unavailable

3

Nut, Jam, LH

7547028

$2.39

4

TIE ROD, INNER

-------

Unavailable

4

TIE ROD, INNER

-------

Unavailable

5

CLAMP, BOOT, SMALL

7080978

$2.39

6

BOOT, STEERING RACK

5415572

$47.99

7

CLAMP, BOOT, LARGE

7080979

$5.59

8

BOLT, SHOULDER

7518786

$2.39

8

BOLT, SHOULDER

7518786

$2.39

9

SCREW

7518644

$4.79

10

BUSHING, TILT STEERING

5439154

$3.19

10

BUSHING, TILT STEERING

5439154

$3.19

11

BUSHING-STEERING

7556675

$14.95

11

BUSHING-STEERING

7556675

$14.95

12

SCREW

7519217

$1.59

13

BEARING-STEERING

3514686

$9.59

13

BEARING-STEERING

3514686

$9.59

14

WHEEL-STEERING, 14"

1823623

$123.99

15

NUT

7547506

$4.39

16

CAP-STEERING WHEEL

5436536

$31.99

17

ASM., TUBE, PIVOT, BLACK [INCL. 13]

1017621

$127.99

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

18

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

19

SHAFT, STEERING, EPS, UPPER

1824286

$155.99

20

Washer, Flat

7556099

$1.59

20

Washer, Flat

7556099

$1.59

21

NUT, NYLOK

7547385

$1.49

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

22

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

23

BOOT, STEERING RACK

5415572

$47.99

24

Bolt

7517909

$5.59

25

WASHER

7555919

$4.99

25

WASHER

7555919

$4.99

26

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

27

Pin, Cotter

7661203

$1.49

28

ASM., GEAR BOX, STEERING [INCL. 2-7,23]

1824019

$576.39

29

ASM., SHOCK, OIL LOCKING

7044420

$71.05

30

SCREW

7519355

$10.39

30

SCREW

7519355

$10.39

31

NUT, NYLOK

7547442

$3.99

32

BRACKET, BASE, EPS

1020912-329

$100.31

33

BRACKET, EPS, LH

5260034-329

$39.99

34

SHAFT, STEERING, EPS, LOWER

1824287

$131.99

35

ASM., POWER STEERING

2412390

Unavailable

36

BOLT

7518450

$1.59

36

BOLT

7518450

$1.59

37

BOLT

7518558

$3.99

38

SCREW

7518955

$3.19

39

SCREW

7519052

$1.59

39

SCREW

7519052

$1.59

40

WASHER

7555960

$3.99

40

WASHER

7555960

$3.99

41

FOAM, SHIELD

5814248

$27.99
