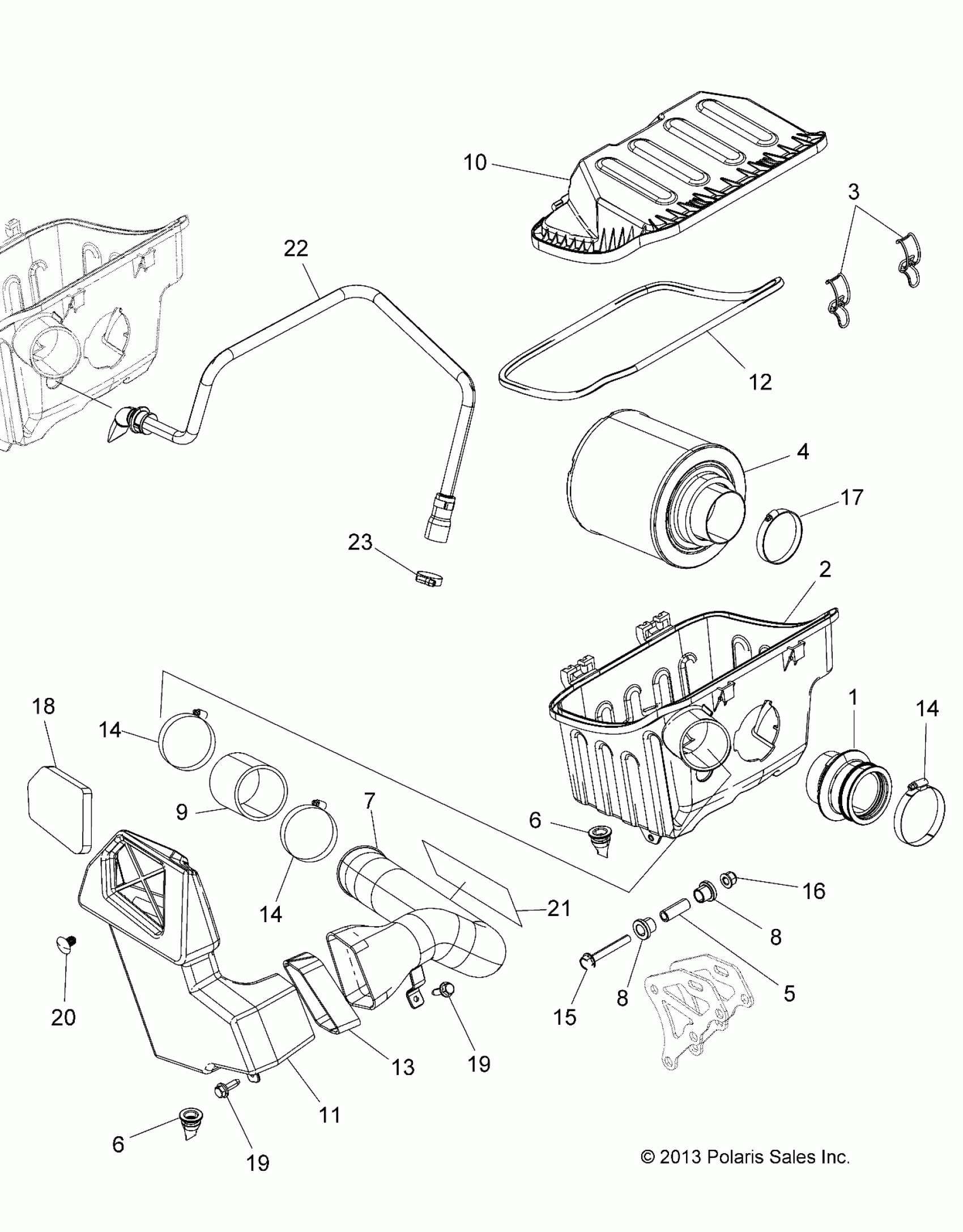

Polaris SPORTSMAN ACE 570 EFI - A15DAA57AJ/AH/EAK ENGINE, AIR INTAKE SYSTEM - A15DAA57AJ/AH/EAK (49ATVAIRINTAKE15ACE570) Diagram

#

Description
Price

1

BOOT, ENGINE, INTAKE

5450494

$35.99

2

BOX, AIR INTAKE

5450495

$127.99

3

CLIP-AIRBOX

7081707

$4.79

4

FILTER-AIR

7082037

$30.39

5

SHAFT, COMPRESSION

5138987

$14.39

6

PLUG-DRAIN

5414472

$5.59

6

PLUG-DRAIN

5414472

$5.59

7

DUCT, INTAKE

5450725

Unavailable

8

BUSHING-MOUNT

5414719

$2.39

8

BUSHING-MOUNT

5414719

$2.39

9

HOSE, INTAKE

5414582

$27.99

10

COVER-AIRBOX

5450175

$19.99

11

BOX, INTAKE, RH

5450728

$101.19

12

SEAL-AIR BOX COVER

5814106

$11.99

13

SEAL, FOAM

5814033

$11.99

14

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.19

14

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.19

14

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.19

15

SCREW

7519298

$3.99

16

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

17

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

18

FILTER, INTAKE, FOAM

5814026

$12.79

19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

20

CLIP-PLASTIC DART, NYLON

7670088

$1.59

21

FOIL, AIRBOX

5813106

$12.31

23

CLAMP, HOSE

7080696

$5.59
