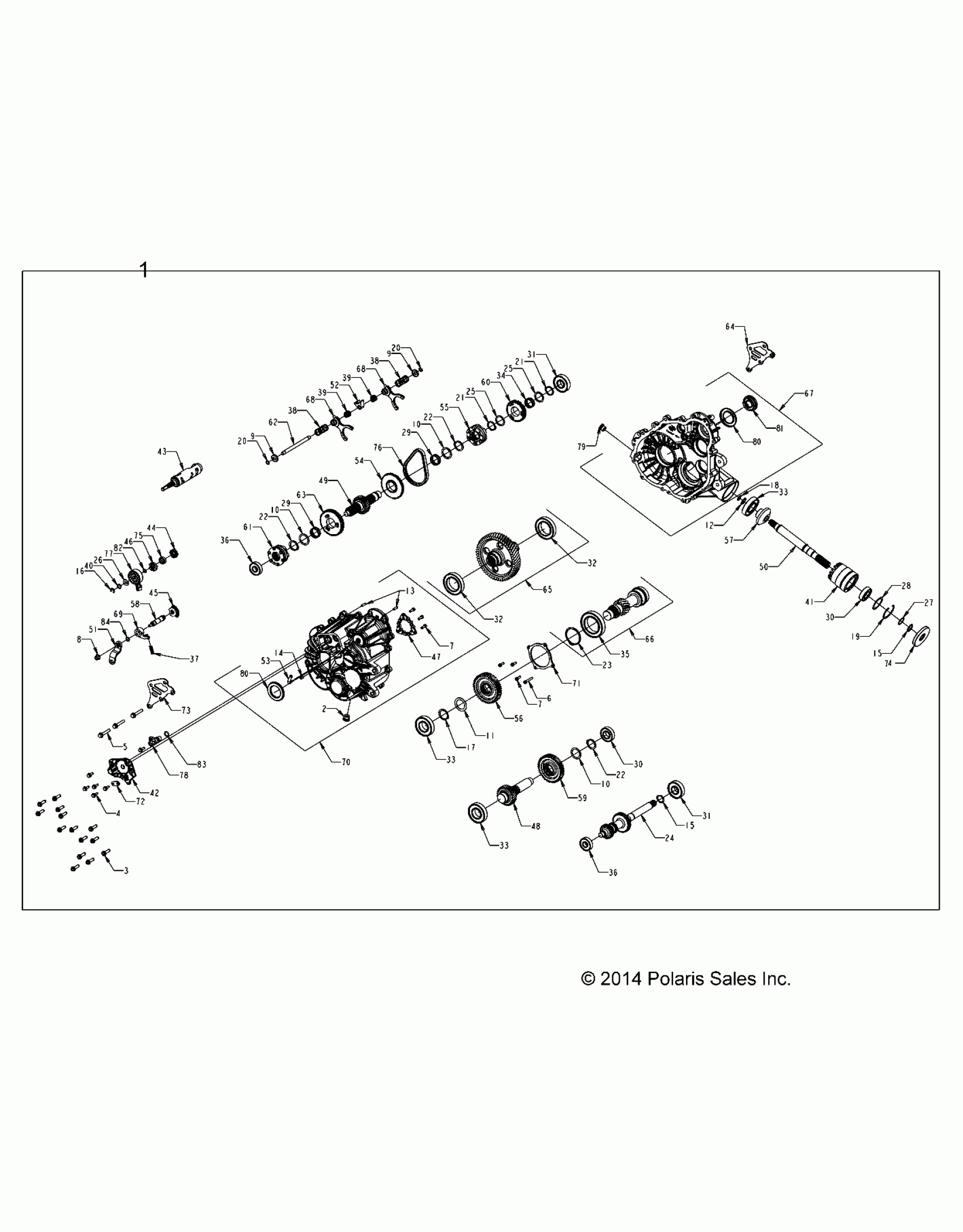

Polaris SPORTSMAN ACE 570 EFI - A15DAA57AJ/AH/EAK DRIVE TRAIN, MAIN GEARCASE - A15DAA57AJ/AH/EAK (49ATVGEARCASE1333143) Diagram

#

Description
Price

1

ASM., GEARCASE, COMPLETE

1333143

Unavailable

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

4

SCREW

3235206

$7.19

5

SCREW

3235207

$10.39

6

SCREW

3235208

$11.19

7

SCREW

3235332

$3.99

7

SCREW

3235332

$3.99

8

NUT

3235210

$7.99

9

WASHER-CUP

3234091

$9.59

9

WASHER-CUP

3234091

$9.59

10

WASHER

3235211

$10.39

10

WASHER

3235211

$10.39

10

WASHER

3235211

$10.39

11

WASHER

3235212

$13.59

12

WASHER

3235213

$15.99

13

PIN, DOWEL

3234340

Unavailable

14

PIN, SPRING, SLOTTED

7043746

$7.19

15

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

15

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

16

RING, SNAP

3233834

$10.39

17

RING, RETAINING, SHAFT

3233364

$6.39

18

RING, RETAINING, EXTERNAL

3234318

$3.19

19

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

20

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

21

RING, RETAINING

3234205

$11.19

21

RING, RETAINING

3234205

$11.19

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

22

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

23

RING, RETAINING

3235216

$10.39

24

SHAFT, BOSS LW UTILITY, INPUT

3235560

$219.99

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

25

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

26

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

27

SHIM

3234272

$31.99

28

SHIM

3234273

$12.79

29

BEARING, NEEDLE

3233014

$43.99

29

BEARING, NEEDLE

3233014

$43.99

30

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

30

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

31

BEARING

3233020

$47.99

31

BEARING

3233020

$47.99

32

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

32

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

33

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

34

BEARING, NEEDLE

3233384

$31.99

35

BEARING, BALL

3235218

$59.99

36

BEARING, BALL

3234652

$15.99

36

BEARING, BALL

3234652

$15.99

37

SPRING, COMPRESSION

3233830

$10.39

38

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

38

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

39

SPRING, COMPRESSION

3234089

$23.99

39

SPRING, COMPRESSION

3234089

$23.99

40

SPRING, WASHER

3235327

$9.59

41

TUBE

3234278

$95.99

42

COVER, GEARS

3234188

$107.99

43

DRUM-SHIFT,MACH.(255289) [INCL. ALL HARDWARE]

3235463

$263.99

44

GEAR, 16T

3233839

$31.99

45

GEAR-SECTOR,31T

3233832

$31.99

46

STAR, DETENT

3235453

Unavailable

47

PLATE, PARK, 12 FACE

3235456

$35.99

48

SHAFT, IDLER, 29T

3235223

$107.99

49

SHAFT-REVERSE,27T(285878)

3235380

$243.99

50

SHAFT, FRONT OUTPUT

3235394

$131.99

51

BELLCRANK

3235532

$31.99

52

COLLAR-SHIFT

3234073

$31.99

53

TUBE, VENT

3234230

$9.59

54

SPROCKET, 48T, 6 FACE

3235231

$79.99

55

ENGAGEMENT DOG, 6 FACE

3235233

$119.99

56

GEAR, 46T, STAGE 3

3235236

$103.99

57

GEAR, 13T, SNORKEL

3235237

$123.99

58

SHAFT-SHIFT(352973)

3235238

$37.61

59

GEAR, 46T, STAGE 2

3235381

$123.99

60

GEAR, 49T

3235396

$123.99

61

SHIFT DOG, PARK

3235457

$135.99

62

RAIL, SHIFT SHAFT

3235542

$27.99

63

GEAR, LOW, 61T

3235561

$79.99

64

BRACKET, REAR MOUNT

3235527

$43.99

65

SUBASM., OUTPUT

3235335

$342.75

66

SUBASM.,SHAFT [INCL. BEARING AND RETAINING RING

3235336

$355.99

67

SUBASM., LH, CASE

3235382

$421.73

68

SUBASM., FORK, SHIFT

3235454

$83.99

68

SUBASM., FORK, SHIFT

3235454

$83.99

69

SUBASM., PAWL, DETENT, ROLLER

3235452

$31.99

70

SUBASM., RH, COVER

3235444

$480.30

71

COVER-BEARING,CNTR DR.

3235241

$43.99

72

BRACKET, WIRE HARNESS

3235350

$8.79

73

BRACKET, REAR MOUNT

3235528

$39.99

74

SEAL, TRIPLE LIP VITON 25 X 80 X 10

3234113

$35.99

75

SPACER

3235243

$9.59

76

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

77

SWITCH, ROTARY, 2 PIN RESISTIVE

7661999

$111.99

78

SENSOR-SPEED,TRANS

4013908

Unavailable

79

PLUG, M18 X 1.5

3234755

$27.99

80

SEAL, TRIPLE LIP

3235052

$31.99

80

SEAL, TRIPLE LIP

3235052

$31.99

81

SEAL, DUAL LIP

3234851

$35.99

82

O-RING

3233076

$6.39

83

O-RING

3234302

$7.19

84

O-RING

3233869

$5.59
