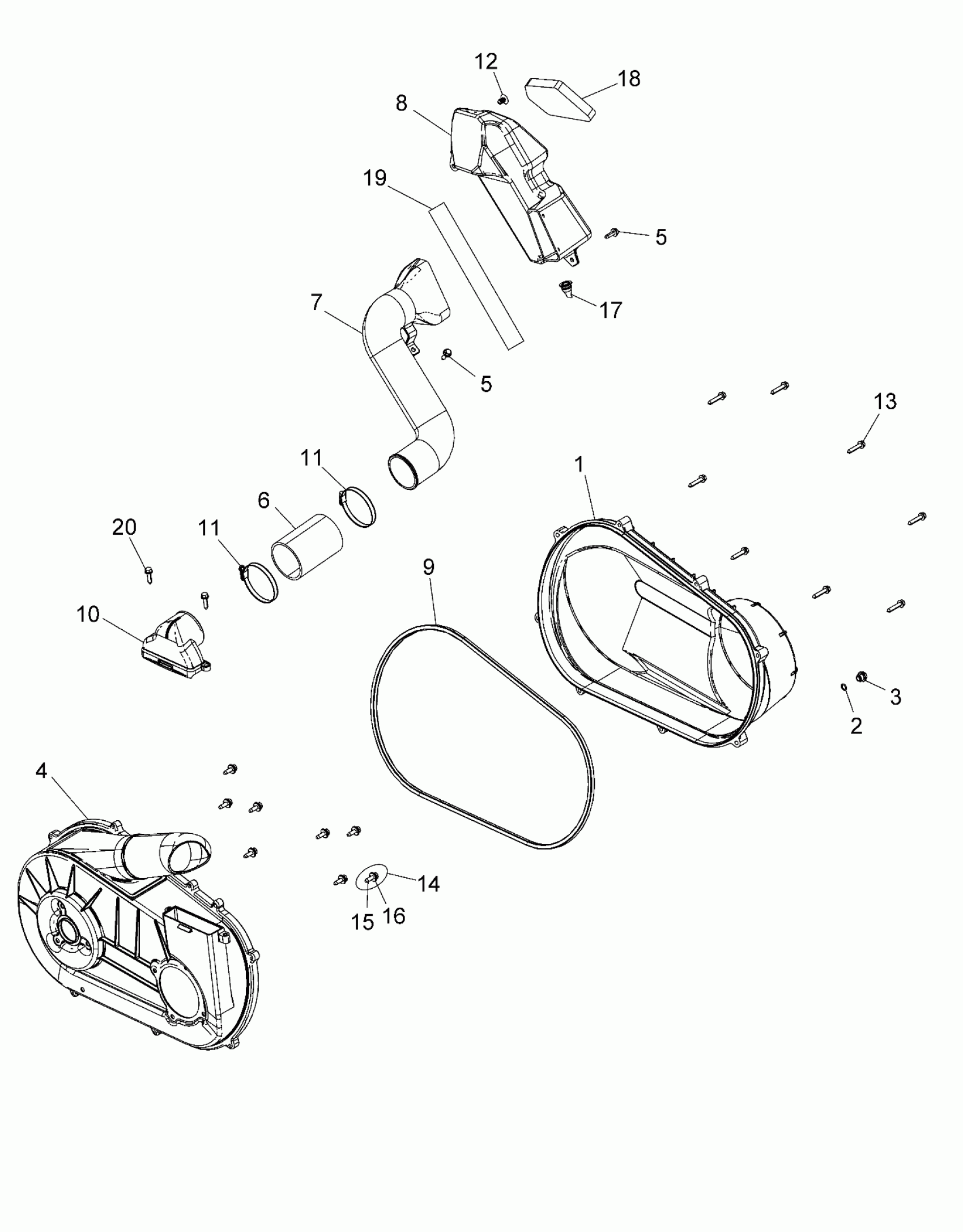

Polaris SPORTSMAN ACE 570 EFI - A15DAA57AJ/AH/EAK DRIVE TRAIN, CLUTCH COVER AND DUCTING - A15DAA57AJ/AH/EAK (49ATVCLUTCHCVR15ACE570) Diagram

#

Description
Price

1

ASM., COVER, CLUTCH, OUTER [INCL. COVER, 2,3]

2634179

$175.99

2

O RING-.364X.504X.07

5410542

Unavailable

3

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

4

ASM., CLUTCH COVER, INNER [INCL. 4,10,20]

2635395

$139.99

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

6

HOSE, INTAKE

5414892

$27.99

7

DUCT, CLUTCH, AIR IN

5450364

Unavailable

8

BOX, INTAKE, LH

5450727

$71.99

9

SEAL, OUTER

5521831

Unavailable

10

DUCT, CLUTCH, AIR IN

5451299

$27.99

11

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

11

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

12

CLIP-PLASTIC DART, NYLON

7670088

$1.59

13

SCREW

7519849

$3.19

14

ASM., BOLT/WASHER

7519278

$4.79

15

SCREW

7519279

$10.39

16

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

17

PLUG-DRAIN

5414472

$5.59

18

FILTER, INTAKE, FOAM

5814026

$12.79

19

SEAL, FOAM

5814033

$11.99

20

Screw

7512098

$1.59
