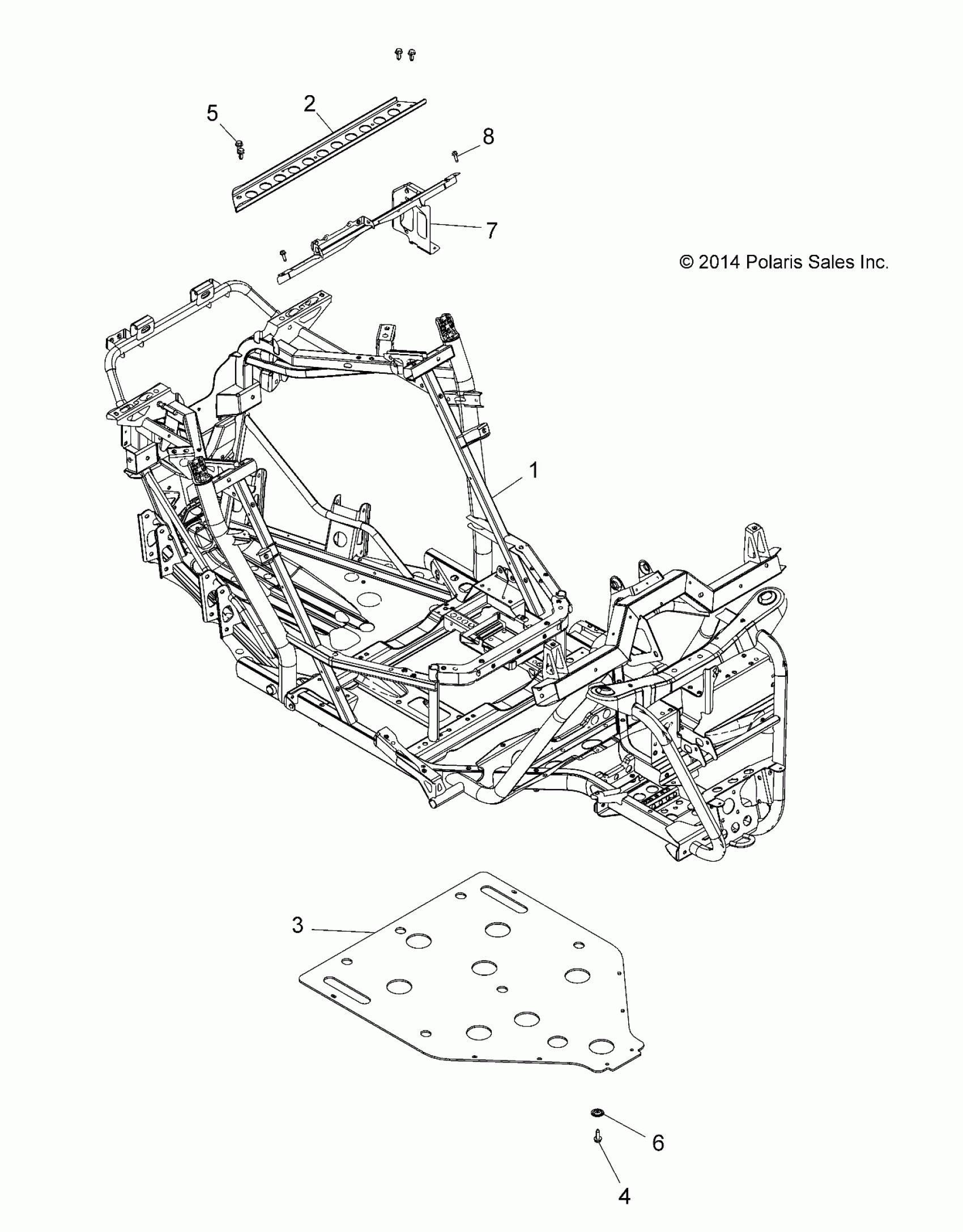

Polaris SPORTSMAN ACE 570 EFI - A15DAA57AJ/AH/EAK CHASSIS, MAIN FRAME AND SKID PLATE - A15DAA57AJ/AH/EAK (49ATVSKIDPLATE15325) Diagram

#

Description

Price

1

FRAME, MAIN, MATTE BLACK

1020900-458

Unavailable

2

BRACKET, BRACE, REAR, BLACK

5254980-329

$131.99

3

PLATE, SKID

5813900

$103.99

4

SCREW

7518936

$3.99

5

BOLT

7518555

$2.39

6

WASHER-SKID PLATE

7556065

$4.79

7

BRACE, BOLT, MOUNT, ECU

1021044-329

Unavailable

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49
