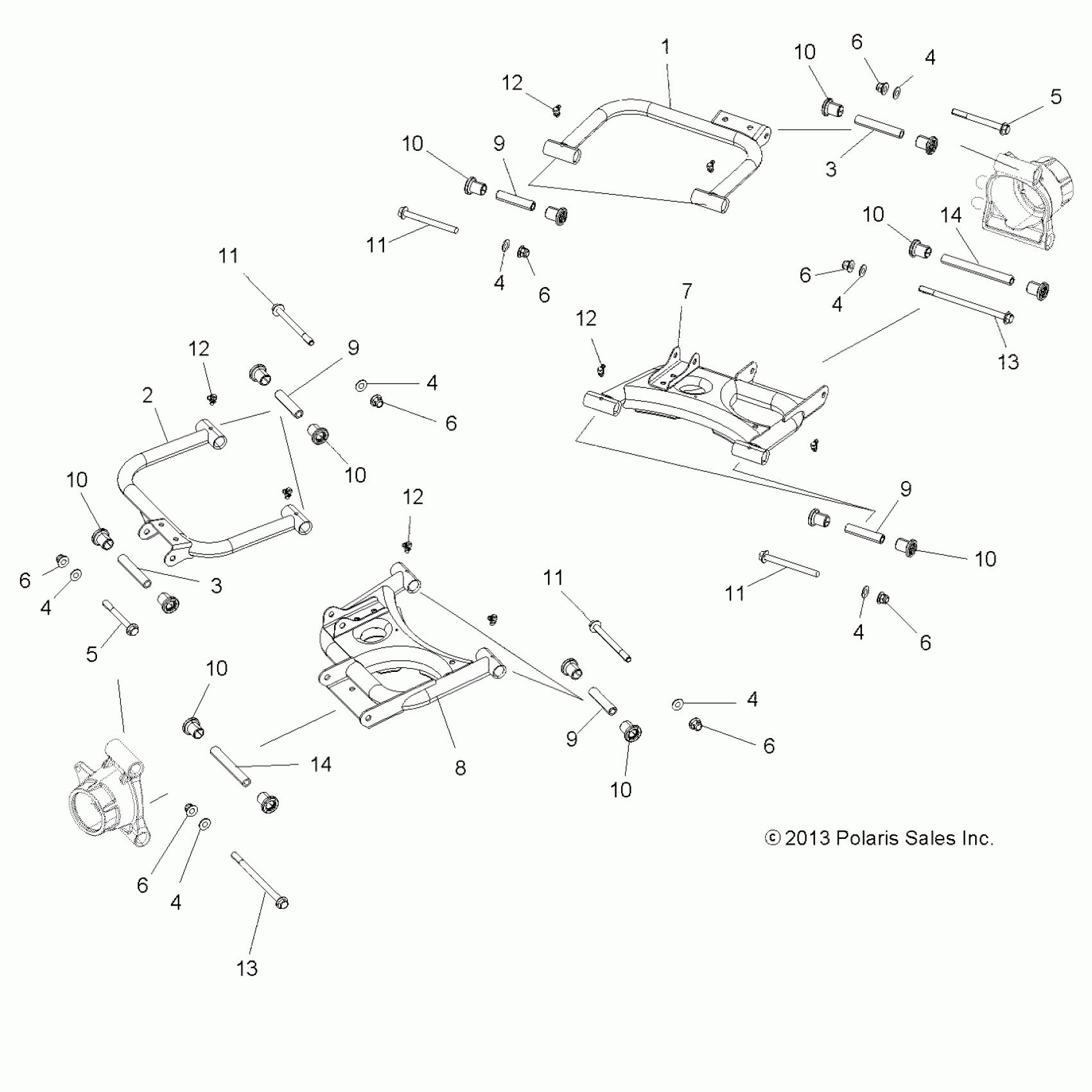

Polaris SPORTSMAN ACE 325 EFI - A15DAA32AA/AJ SUSPENSION, REAR CONTROL ARMS - A15DAA32AA/AJ (49ATVSUSPRR14SP325) Diagram

#

Description
Price

1

ARM, CONTROL, UPPER, REAR, MATTE BLACK, LH

1018121-458

$95.99

2

ARM, CONTROL, UPPER, REAR, MATTE BLACK, RH

1018123-458

$95.99

3

SHAFT, PIVOT

5137592

$6.39

3

SHAFT, PIVOT

5137592

$6.39

4

WASHER

7556153

$1.99

4

WASHER

7556153

$1.99

4

WASHER

7556153

$1.99

4

WASHER

7556153

$1.99

4

WASHER

7556153

$1.99

4

WASHER

7556153

$1.99

4

WASHER

7556153

$1.99

4

WASHER

7556153

$1.99

5

SCR-HXFL-M10X1.25X115 8.8 ZOD

7518566

$7.19

5

SCR-HXFL-M10X1.25X115 8.8 ZOD

7518566

$7.19

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

ARM, CONTROL LOWER, REAR, MATTE BLACK, LH

1018115-458

Unavailable

8

ARM, CONTROL LOWER, REAR, MATTE BLACK, RH

1018116-458

Unavailable

9

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$8.79

9

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$8.79

9

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$8.79

9

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$8.79

10

BUSHING-STANDARD,ORV

5439874

$2.39

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

10

BUSHING-STANDARD,ORV

5439874

$2.39

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

10

BUSHING-STANDARD,ORV

5439874

$2.39

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

10

BUSHING-STANDARD,ORV

5439874

$2.39

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

10

BUSHING-STANDARD,ORV

5439874

$2.39

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

10

BUSHING-STANDARD,ORV

5439874

$2.39

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

10

BUSHING-STANDARD,ORV

5439874

$2.39

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

10

BUSHING-STANDARD,ORV

5439874

$2.39

10

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

11

SCREW

7519043

$9.59

11

SCREW

7519043

$9.59

11

SCREW

7519043

$9.59

11

SCREW

7519043

$9.59

12

FITTING, ZERK

7080510

$5.59

12

FITTING, ZERK

7080510

$5.59

12

FITTING, ZERK

7080510

$5.59

12

FITTING, ZERK

7080510

$5.59

13

SCREW

7519042

$9.59

13

SCREW

7519042

$9.59

14

TUBE, PIVOT

5336724

$23.99

14

TUBE, PIVOT

5336724

$23.99
