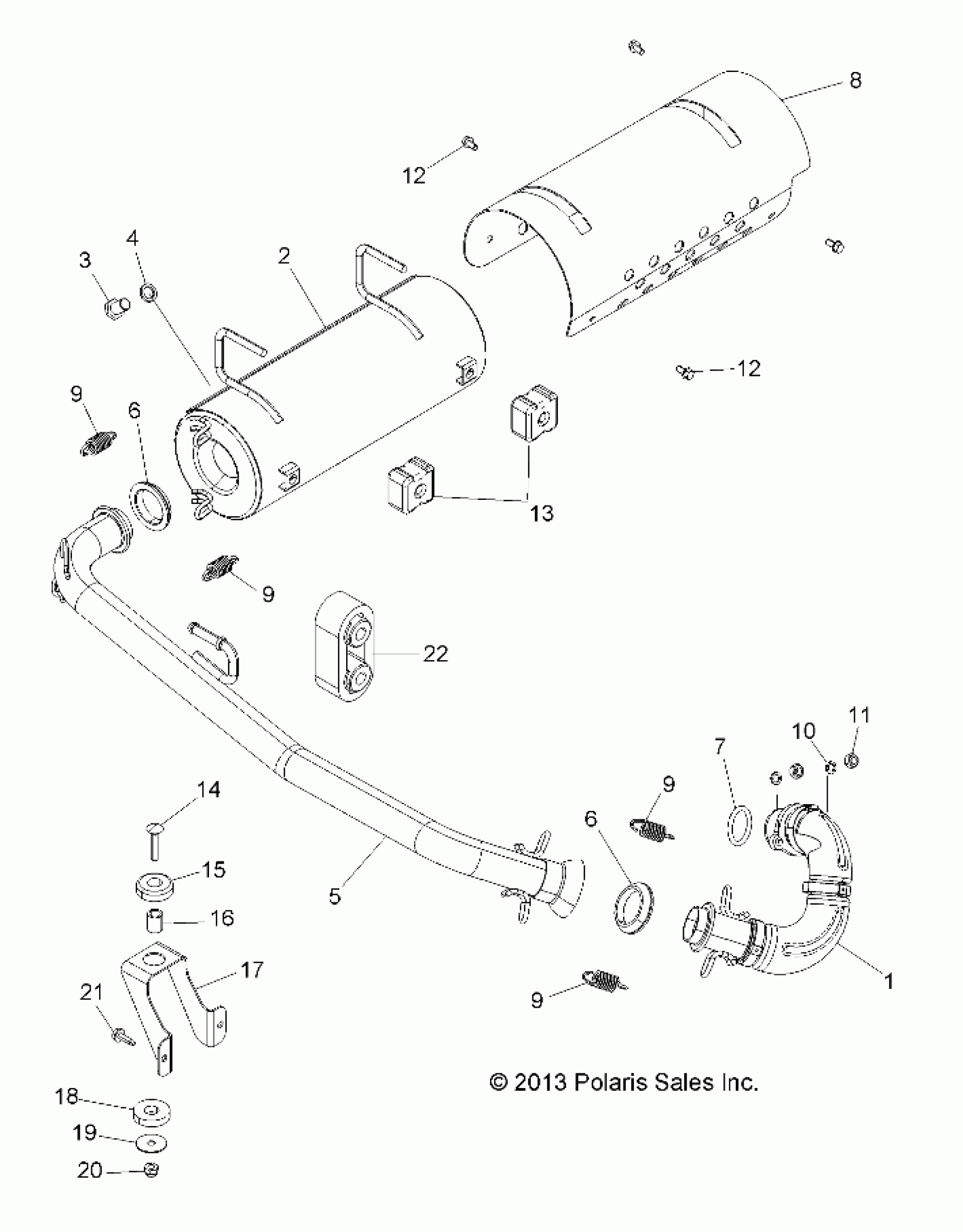

Polaris SPORTSMAN ACE 325 EFI - A15DAA32AA/AJ ENGINE, EXHAUST SYSTEM - A15DAA32AA/AJ (49ATVEXHAUST14325) Diagram

#

Description
Price

1

ASM., HEADPIPE

1262874

Unavailable

2

SILENCER, POWDER BLACK

1262405-489

$266.65

3

BOLT

7512666

$2.38

4

WASHER, CLEAN OUT

7556230

$1.19

5

PIPE, POWDER BLACK

1262406-489

$213.87

6

SEAL

5243517

$16.17

6

SEAL

5243517

$16.17

7

GASKET, SEALING

5256452

$5.65

8

SHIELD, SILENCER

5257792

$48.56

9

SPRING-EXHAUST

7041789

$8.89

9

SPRING-EXHAUST

7041789

$8.89

9

SPRING-EXHAUST

7041789

$8.89

9

SPRING-EXHAUST

7041789

$8.89

10

Washer, Lock

7556111

$1.59

11

NUT

7547076

$2.60

12

Screw

7515197

$1.19

12

Screw

7515197

$1.19

13

GROMMET

5413383

$4.76

14

BOLT, CARRIAGE

7515316

$2.38

15

DAMPENER, VIBRATION

5412659

$3.97

16

BUSHING

5010192

$6.35

17

MOUNT, EXHAUST, LOWER

5258177

$32.37

18

WASHER, RUBBER

5410436

$1.59

19

WASHER

7555716

$1.59

20

NUT-5/16-18 NYLOK-Y

7542324

$0.79

21

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

22

MNT-ISOLATOR

5438965

$28.32
