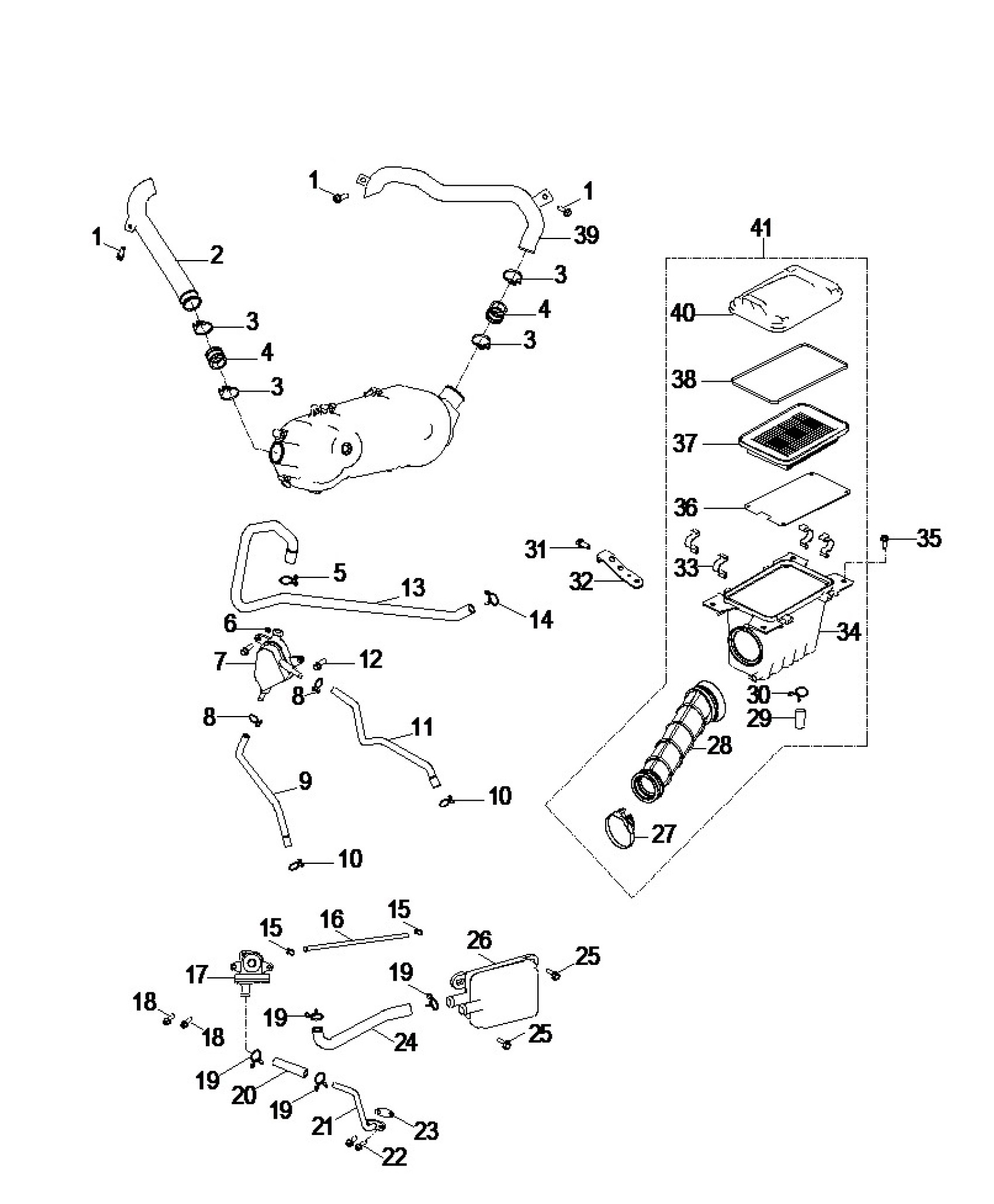

Polaris SPORTSMAN 90 - A14FA09AA ENGINE, AIR INTAKE SYSTEM - A14FA09AA (49ATVAIRBOX14SP90) Diagram

#

Description
Price

1

Bolt w/Washer

0450824

$2.39

1

Bolt w/Washer

0450824

$2.39

1

Bolt w/Washer

0450824

$2.39

2

Duct, Inlet

0453331

$59.99

3

Clamp

0453655

$10.39

3

Clamp

0453655

$10.39

3

Clamp

0453655

$10.39

3

Clamp

0453655

$10.39

4

Boot, Duct

0453656

$9.59

4

Boot, Duct

0453656

$9.59

5

Clip

0453187

Unavailable

6

NUT

0450880

$3.99

7

Separator, Oil

0453184

$63.99

8

Clip

0450865

$11.19

8

Clip

0450865

$11.19

9

TUBE, OIL

0454007

$13.59

10

Clip

0453516

$3.99

10

Clip

0453516

$3.99

11

Tube, Oil

0454006

$23.99

12

BOLT

0452215

$3.99

13

TUBE, BREATHER, VENTILATED

0454008

$39.99

14

Clip

0452795

$3.99

15

CLAMP

0453944

$3.99

15

CLAMP

0453944

$3.99

16

HOSE

0454927

$5.59

17

VALVE, DUAL INTAKE

0454398

$135.99

18

BOLT

0453517

$3.99

18

BOLT

0453517

$3.99

19

Clip

0452795

$3.99

19

Clip

0452795

$3.99

19

Clip

0452795

$3.99

19

Clip

0452795

$3.99

20

HOSE

0454928

$11.19

21

TUBE, DUAL INTAKE

0454929

$35.99

22

BOLT

0452413

$3.99

23

GASKET, AIR INJECTION

0452808

Unavailable

24

HOSE

0454930

Unavailable

25

BOLT

0454785

$3.99

25

BOLT

0454785

$3.99

26

ASM., FILTER, DUAL INTAKE

0454375

$23.99

27

Clamp

0453658

$13.59

28

Boot

0453659

Unavailable

29

Hose, Drain

0453725

$7.19

30

Clip

0453661

$4.79

31

Bolt

0453518

$3.99

32

Bracket, Mount, Air Box

0453666

$27.99

33

Clip

0453660

Unavailable

34

Box, Air Cleaner

0453662

$43.99

35

BOLT

0452215

$3.99

36

Filter, Air Cleaner

0453663

$9.59

37

Foam, Intake, Air Cleaner

0454620

$31.99

38

Gasket

0453484

$3.99

39

Duct, Outlet

0453332

$59.99

40

Cover, Air Cleaner

0453665

$35.99

41

ASM., AIR BOX

0454624

Unavailable
