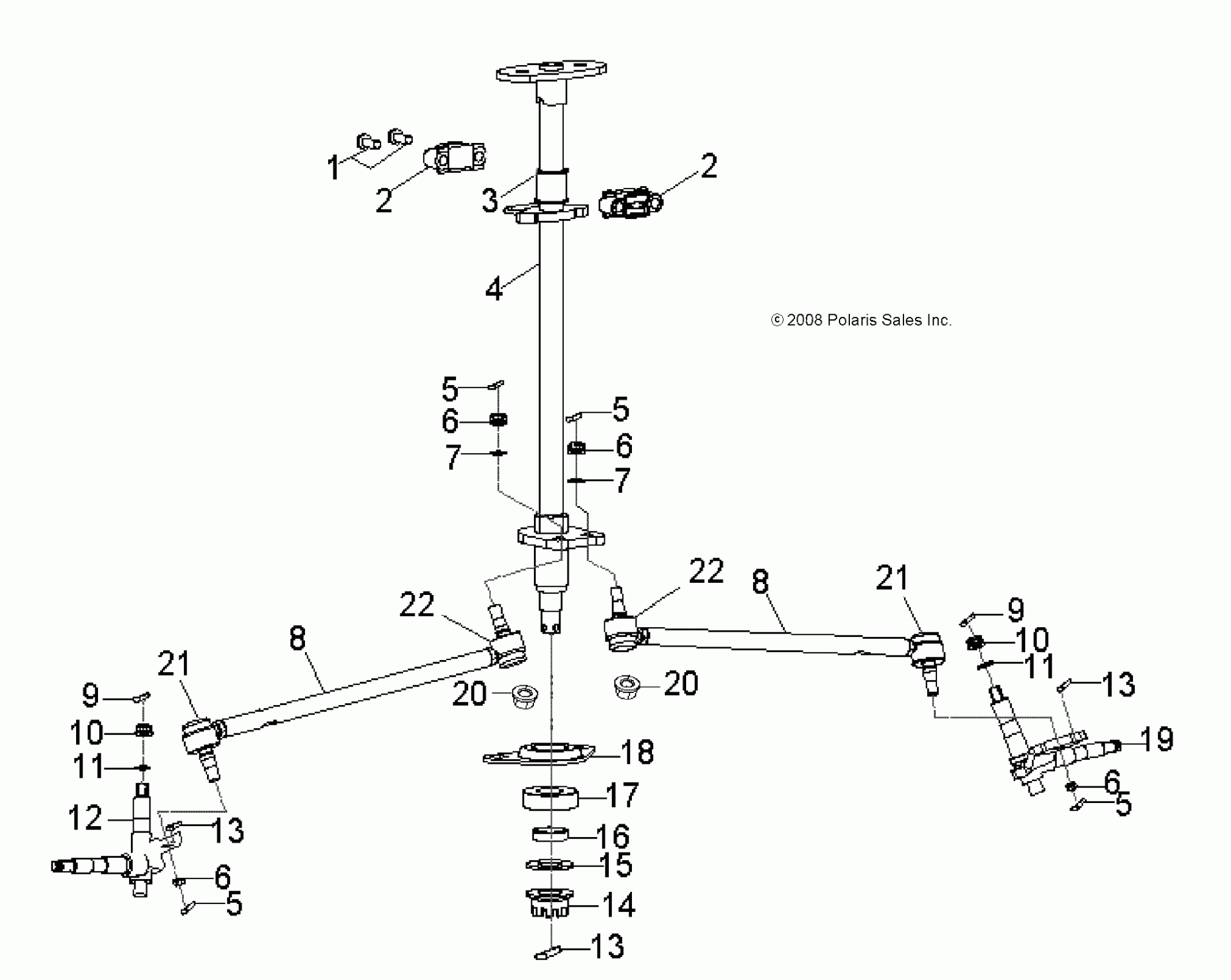

Polaris SPORTSMAN 90 - A09FA09AA/AB STEERING, STEERING POST and TIE ROD ASM. - A09FA09AA/AB (49ATVSTEERING09OTLW90) Diagram

#

Description
Price

1

BOLT

0453730

$7.14

2

HOLDER, STEERING

0450505

$20.22

2

HOLDER, STEERING

0450505

$20.22

3

SLEEVE, STEERING

0450499

$11.11

4

Post, Steering, Black

0454613-067

$129.99

5

PIN, COTTER

0453819

$3.17

5

PIN, COTTER

0453819

$3.17

5

PIN, COTTER

0453819

$3.17

5

PIN, COTTER

0453819

$3.17

6

NUT, LOCK

0453820

$9.52

6

NUT, LOCK

0453820

$9.52

6

NUT, LOCK

0453820

$9.52

6

NUT, LOCK

0453820

$9.52

7

WASHER, SPRING

0453809

$4.76

7

WASHER, SPRING

0453809

$4.76

8

Tie Rod

0454631

Unavailable

8

Tie Rod

0454631

Unavailable

9

PIN, COTTER

0450719

$3.17

9

PIN, COTTER

0450719

$3.17

10

NUT

0450502

$9.52

10

NUT

0450502

$9.52

11

WASHER

0453513

$4.76

11

WASHER

0453513

$4.76

12

KNUCKLE, LH

0453554

$117.37

13

PIN, COTTER

0450395

$3.17

13

PIN, COTTER

0450395

$3.17

13

PIN, COTTER

0450395

$3.17

14

NUT

0453502

$9.52

15

WASHER

0452671

$4.99

16

SPACER

0452719

$8.73

17

BEARING, BALL

0453978

$39.68

18

FLANGETTE

0453494

$20.22

19

KNUCKLE, RH

0453555

$117.37

20

NUT

0453866

$1.59

20

NUT

0453866

$1.59

21

OUTER ROD END (MALE)

0454630

$76.89

21

OUTER ROD END (MALE)

0454630

$76.89

22

INNER ROD END (MALE)

0454629

$76.89

22

INNER ROD END (MALE)

0454629

$76.89
