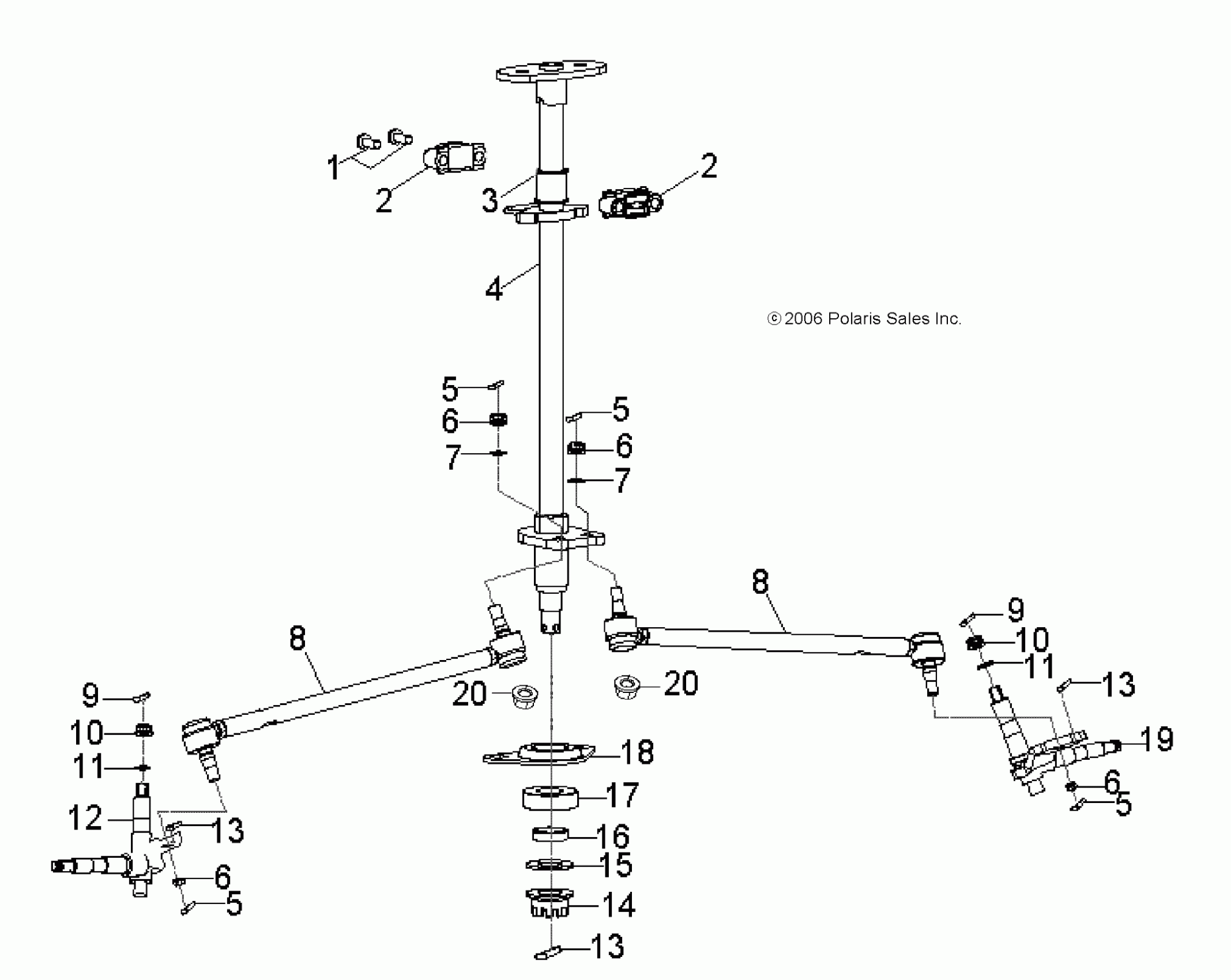

Polaris SPORTSMAN 90 - A08FA09AA/AB/AC STEERING, STEERING POST and TIE ROD ASM. - A08FA09AA/AB/AC (49ATVSTEERING07OTLW90) Diagram

#

Description
Price

1

BOLT

0453730

$7.19

2

HOLDER, STEERING

0450505

$19.99

2

HOLDER, STEERING

0450505

$19.99

3

SLEEVE, STEERING

0450499

$11.19

4

Post, Steering

0453556-067

Unavailable

5

PIN, COTTER

0453819

$3.19

5

PIN, COTTER

0453819

$3.19

5

PIN, COTTER

0453819

$3.19

5

PIN, COTTER

0453819

$3.19

6

NUT, LOCK

0453820

$9.59

6

NUT, LOCK

0453820

$9.59

6

NUT, LOCK

0453820

$9.59

6

NUT, LOCK

0453820

$9.59

7

WASHER, SPRING

0453809

$4.79

7

WASHER, SPRING

0453809

$4.79

8

Asm., Tie Rod

0453544

$124.99

8

Asm., Tie Rod

0453544

$124.99

9

PIN, COTTER

0450719

Unavailable

9

PIN, COTTER

0450719

Unavailable

10

NUT

0450502

$9.59

10

NUT

0450502

$9.59

11

WASHER

0453513

$4.79

11

WASHER

0453513

$4.79

12

KNUCKLE, LH

0453554

$111.99

13

PIN, COTTER

0450395

$3.19

13

PIN, COTTER

0450395

$3.19

13

PIN, COTTER

0450395

$3.19

14

NUT

0453502

$9.59

15

WASHER

0452671

$3.99

16

SPACER

0452719

$8.79

17

BEARING, BALL

0453978

$39.99

18

FLANGETTE

0453494

$19.99

19

KNUCKLE, RH

0453555

$111.99

20

Nut

0450882

Unavailable

20

Nut

0450882

Unavailable
