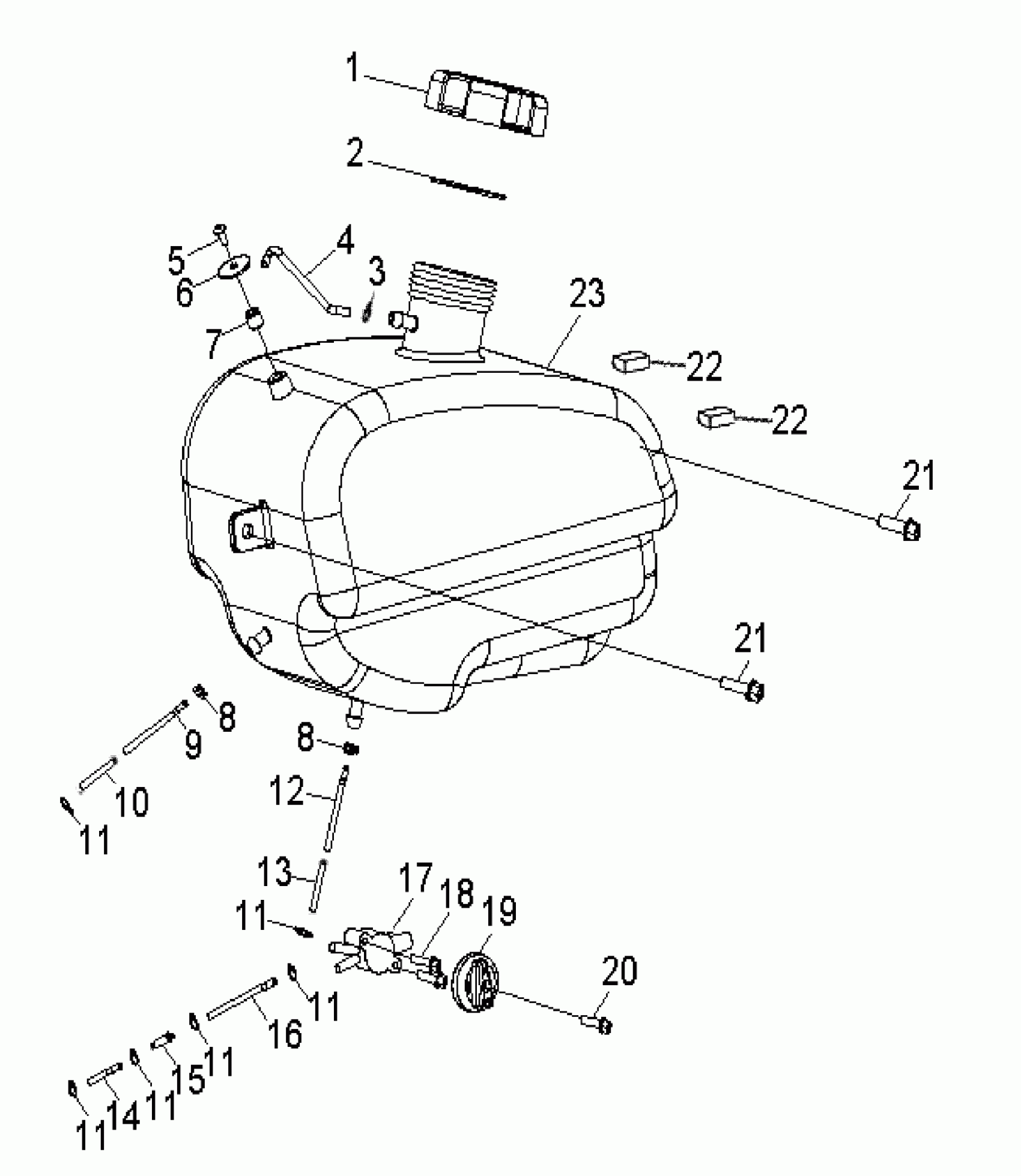

Polaris SPORTSMAN 90 - A08FA09AA/AB/AC BODY, FUEL TANK and HOSES - A08FA09AA/AB/AC (49ATVFUEL07SPRT90) Diagram

#

Description
Price

1

CAP, FUEL

0453691

$28.32

2

Gasket, Cap

0452641

$5.65

3

CLAMP

0453944

$3.97

4

HOSE, VENT

0454031

Unavailable

5

SCREW

0453720

Unavailable

6

WASHER

0453719

Unavailable

7

SPACER

0453716

Unavailable

8

CLAMP

0453693

$4.76

8

CLAMP

0453693

$4.76

9

Hose, Fuel, w/Sleeve

0454121

$36.41

10

Hose, Fuel, w/Sleeve

0454121

$36.41

11

Clip

0450054

$1.19

11

Clip

0450054

$1.19

11

Clip

0450054

$1.19

11

Clip

0450054

$1.19

11

Clip

0450054

$1.19

11

Clip

0450054

$1.19

12

HOSE, FUEL, W/SLEEVE

0454122

$11.32

13

HOSE, FUEL, W/SLEEVE

0454122

$11.32

14

Hose, Fuel

0454026-130

$32.37

15

FILTER, FUEL

0453695

$6.46

16

Hose, Fuel

0454026-105

$32.37

17

Valve, Fuel

0450996

$44.51

18

BOLT

0450866

$4.76

19

KNOB, FUEL SHUT-OFF

0453715

$28.32

20

BOLT

0453717

$4.76

21

Bolt

0450340

$3.97

21

Bolt

0450340

$3.97

22

ADHESIVE, ELECTRIC WIRE

0453696

$3.17

22

ADHESIVE, ELECTRIC WIRE

0453696

$3.17

23

ASM., FUEL TANK

0453718

$125.46
