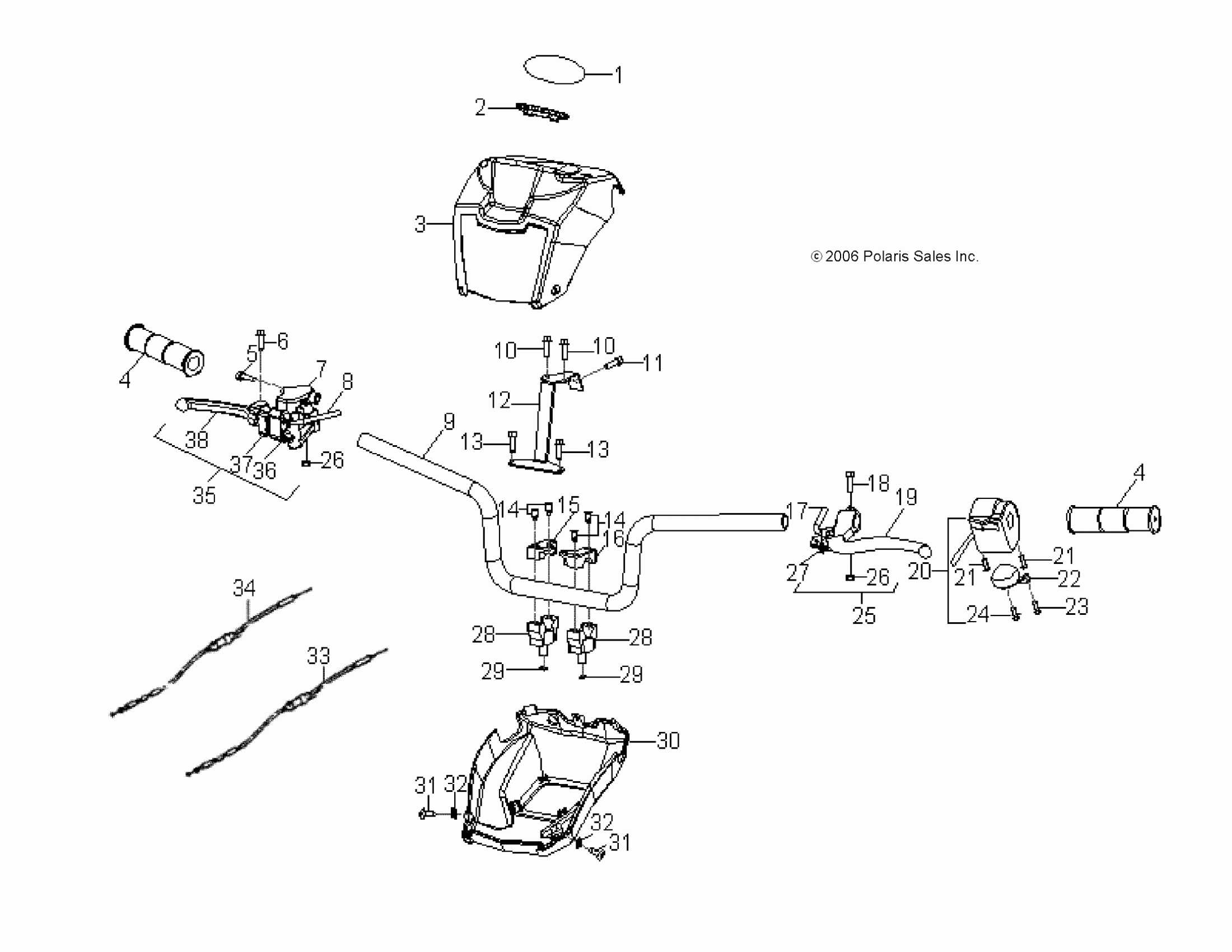

Polaris SPORTSMAN 90 - A07FA09AA/AB HANDLEBAR - A07FA09AA/AB (49ATVHANDLEBAR07SPRT90) Diagram

#

Description
Price

1

Decal, Speedo

7171920

$7.99

2

Bezel, Speedometer

0451707

Unavailable

3

Pod, Upper, Red [AB]

0453734-293

Unavailable

3

Pod, Upper, Green [AA]

0453734-400

Unavailable

4

GRIP, HANDGRIP

0453370

$23.99

4

GRIP, HANDGRIP

0453370

$23.99

5

BOLT

0451788

Unavailable

6

BOLT, BRAKE LEVER, RH

0450806

$2.39

7

MOUNT, LEVER, BRAKE, RH

0453721

$135.99

8

WIRE, BRAKE SWITCH

0453736

$43.99

9

HANDLEBAR, BLACK

0453722-067

$67.99

10

SCREW

0452421

$3.99

10

SCREW

0452421

$3.99

11

SCREW

0450614

$4.79

12

TRIM-HBAR POD BRACKET

0455399

$4.79

12

BRKT-MOUND,POD,BLK W/TRIM

0455329

$39.99

12

TRIM-HBAR POD BRACKT

0455398

$6.39

13

SCREW

0450040

$3.19

13

SCREW

0450040

$3.19

14

BOLT

0450148

$3.99

14

BOLT

0450148

$3.99

15

COVER, CLAMP, RH

0450461

$27.99

16

COVER, CLAMP, LH

0450460

$35.99

17

SENSOR, BRAKE

0453815

$43.99

18

BOLT

0450807

$7.19

19

LEVER, BRAKE, SIDE, BLACK

0450693

$27.99

20

Asm., Switch, LH [Incl. 21-24]

0453816

$159.99

21

SCREW

0451148

$3.19

21

SCREW

0451148

$3.19

22

ASM., MANUAL CHOKE

0453566

$39.99

23

BOLT

0453708

$3.99

24

BOLT

0451149

$3.99

25

ASM., LEVER, BRAKE, LH [INCL. 17-19,26,27]

0454043

$59.99

26

NUT

0450808

$2.39

26

NUT

0450808

$2.39

27

LOCK, HAND BRAKE

0454042

$14.39

28

Saddle, Clamp

0450459

$39.99

28

Saddle, Clamp

0450459

$39.99

29

NUT

0450276

$3.99

29

NUT

0450276

$3.99

30

POD, LOWER, BLACK

0453347-070

Unavailable

31

SCREW

0450514

$1.59

31

SCREW

0450514

$1.59

32

U-NUT, PLATE

0450752

$2.39

32

U-NUT, PLATE

0450752

$2.39

33

CABLE, CHOKE

0453499

$43.99

34

CABLE, THROTTLE

0453500

$51.99

35

ASM., LEVER, RH [INCL. 5-8,26,36-38]

0453740

$147.99

36

ARM, THROTTLE

0452202

$23.99

37

BRACKET, BRAKE CABLE

0450994

$31.99

38

LEVER, BRAKE, SIDE

0450694

$27.99
