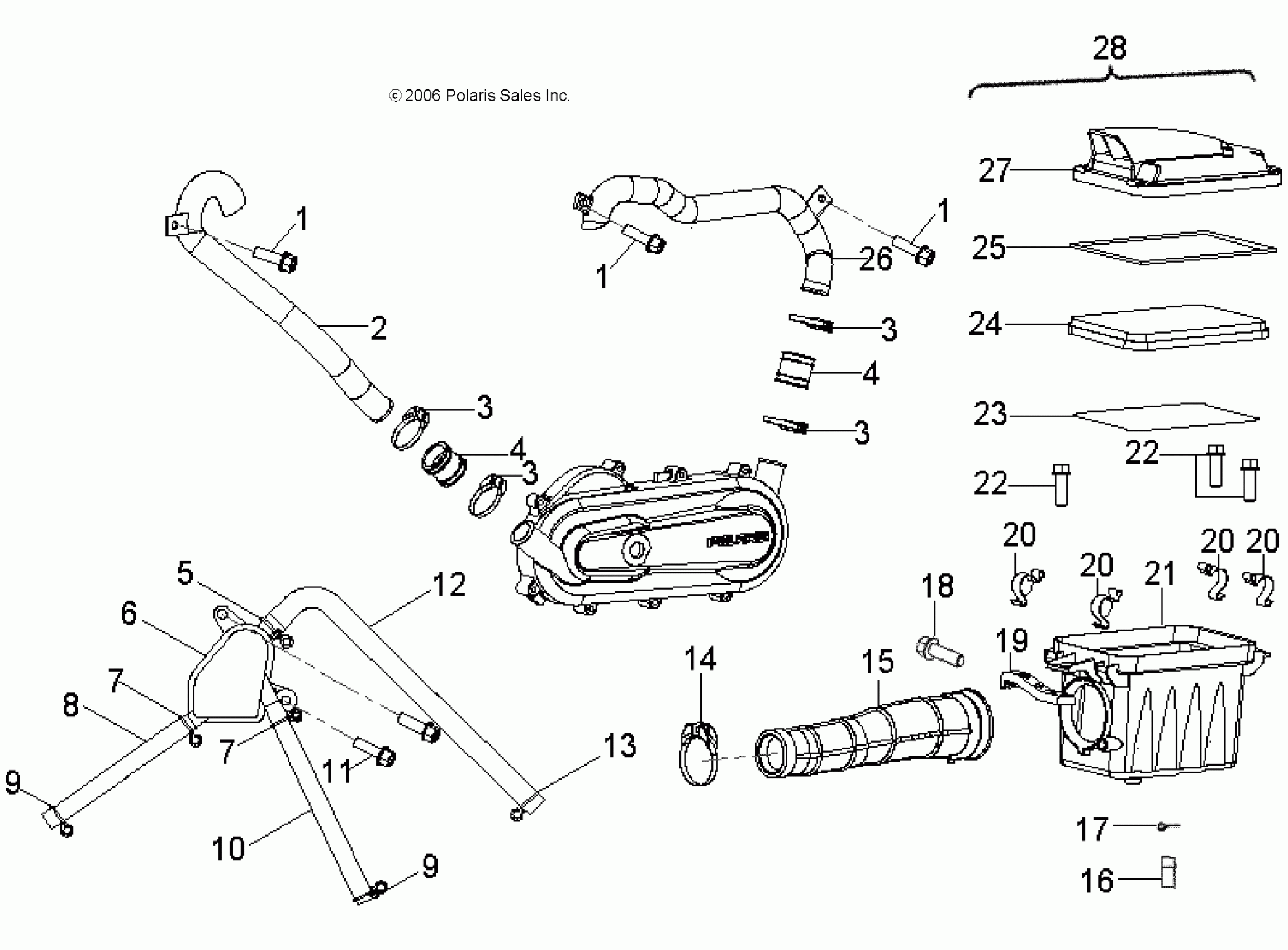

Polaris SPORTSMAN 90 - A07FA09AA/AB AIR CLEANER - A07FA09AA/AB (49ATVAIRBOX07OTLW90) Diagram

#

Description
Price

1

Bolt w/Washer

0450824

$2.39

1

Bolt w/Washer

0450824

$2.39

1

Bolt w/Washer

0450824

$2.39

2

Duct, Inlet

0453331

$59.99

3

Clamp

0453655

$10.39

3

Clamp

0453655

$10.39

3

Clamp

0453655

$10.39

3

Clamp

0453655

$10.39

4

Boot, Duct

0453656

$9.59

4

Boot, Duct

0453656

$9.59

5

Clip

0453187

Unavailable

6

Separator, Oil

0453184

$63.99

7

Clip

0450865

$11.19

7

Clip

0450865

$11.19

8

Tube, Oil

0453674

Unavailable

9

Clip

0453516

$3.99

9

Clip

0453516

$3.99

10

Tube, Oil

0453724

$4.99

11

Bolt

0450899

Unavailable

12

Tube, Breather, Ventilated

0453657

$12.39

13

Clip

0452795

$3.99

14

Clamp

0453658

$13.59

15

Boot

0453659

Unavailable

16

Hose, Drain

0453725

$7.19

17

Clip

0453661

$4.79

18

Bolt

0453518

$3.99

19

Bracket, Mount, Air Box

0453666

$27.99

20

Clip

0453660

Unavailable

20

Clip

0453660

Unavailable

20

Clip

0453660

Unavailable

20

Clip

0453660

Unavailable

21

Box, Air Cleaner

0453662

$43.99

22

Bolt

0450340

Unavailable

22

Bolt

0450340

Unavailable

23

Filter, Air Cleaner

0453663

$9.59

24

Filter, Air Box

0453664

Unavailable

25

Gasket

0453484

$3.99

26

Duct, Outlet

0453332

$59.99

27

Cover, Air Cleaner

0453665

$35.99

28

Asm., Air Box

0453739

Unavailable
