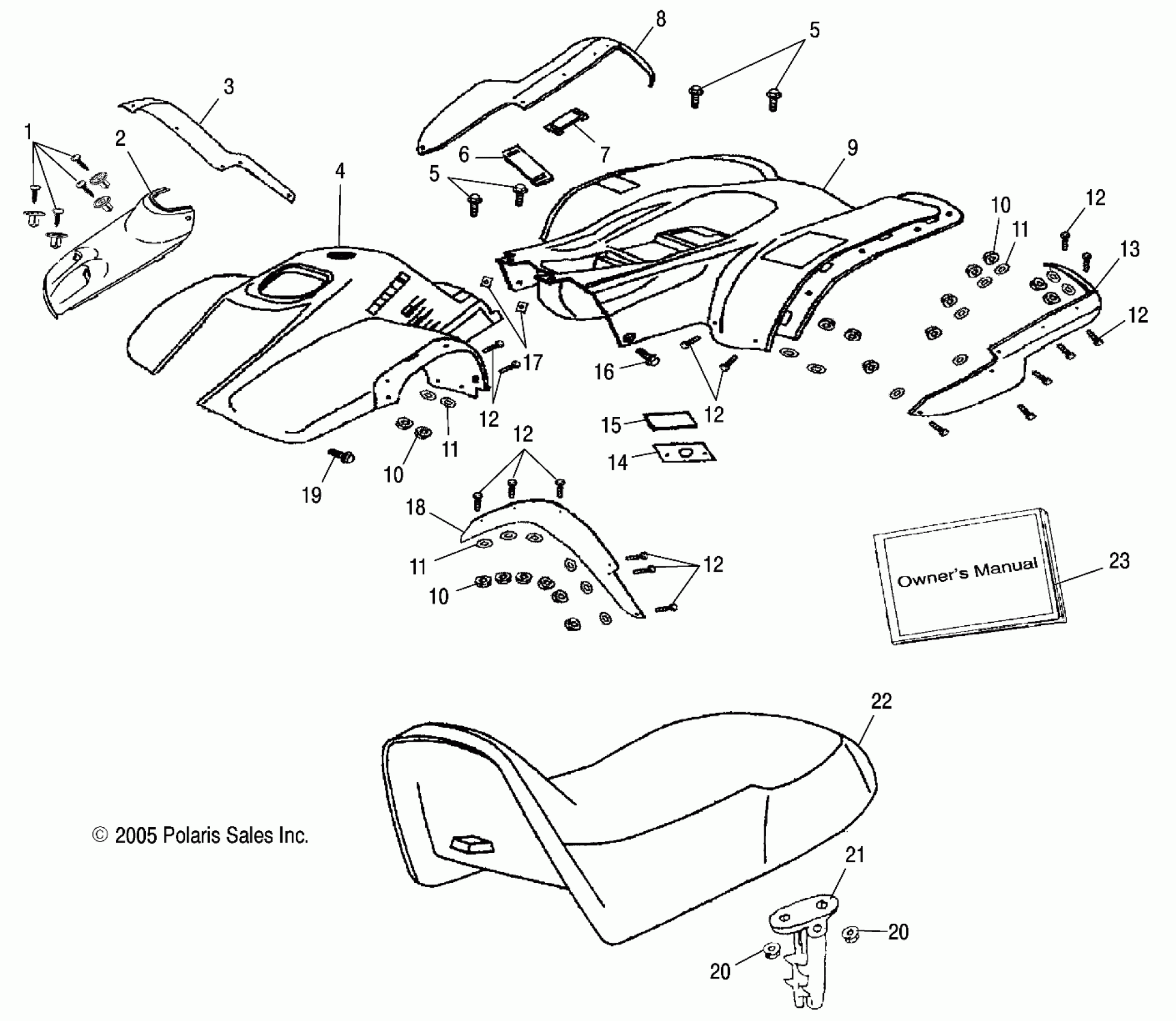

Polaris SPORTSMAN 90 - A06FA09CA CAB/SEAT - A06FA09CA/CB/CC (4999202309920230B06) Diagram

#

Description
Price

1

RIVET

0451076

$1.19

2

Cover, Front, Camo Green Met [CA]

0451164-400

Unavailable

2

Cover, Front, NBU [CC]

0451164-455

$163.49

2

Cover, Front, Indy Red. [CB]

0451164-293

$102.38

3

Mudflap, Front, RH

0451166-070

Unavailable

4

Cab, Front, Camo Green Met [CA]

0451163-400

Unavailable

4

Cab, Front, NBU [CC]

0451163-455

Unavailable

4

Cab, Front, Indy Red [CB]

0451163-293

$253.97

5

Bolt, Hex

0450340

$3.97

5

Bolt, Hex

0450340

$3.97

6

Strap, Battery

0450897

$6.46

7

Strap, Battery, Tool Box

0450898

$5.65

8

Mudflap, Rear, RH

0451168-070

Unavailable

9

Cab, Rear, Camo Green Metallic [CA]

0451144

$223.02

9

Cab, Rear, Indy Red [CB]

0450625-293

Unavailable

9

Cab, Rear, NBU [CC]

0450625-455

Unavailable

10

Nut, Lock

0450741

$3.17

10

Nut, Lock

0450741

$3.17

10

Nut, Lock

0450741

$3.17

11

Washer, Plain

0450710

$1.19

11

Washer, Plain

0450710

$1.19

11

Washer, Plain

0450710

$1.19

12

Bolt, Phillips

0450622

$2.38

12

Bolt, Phillips

0450622

$2.38

12

Bolt, Phillips

0450622

$2.38

12

Bolt, Phillips

0450622

$2.38

12

Bolt, Phillips

0450622

$2.38

12

Bolt, Phillips

0450622

$2.38

13

Mudflap, Rear, LH

0451169-070

Unavailable

14

Pad, Protector

0450345

$44.51

15

Rubber, Battery

0450346

$2.41

16

Bolt, Pan, Phillips

0450297

$4.76

17

Nut, U-Plate

0450342

$4.76

18

Mudflap, Front, LH

0451167-070

Unavailable

19

Bolt, Hex

0450824

$2.38

20

NUT, FLANGE, HEX

0450880

$3.97

20

NUT, FLANGE, HEX

0450880

$3.97

21

Hook, Seat

0450356

$32.37

22

Asm., Seat

0450631

Unavailable

23

Manual, Owner's, 2006 Sportsman 90, Predator 50/90

9920229

$28.99
