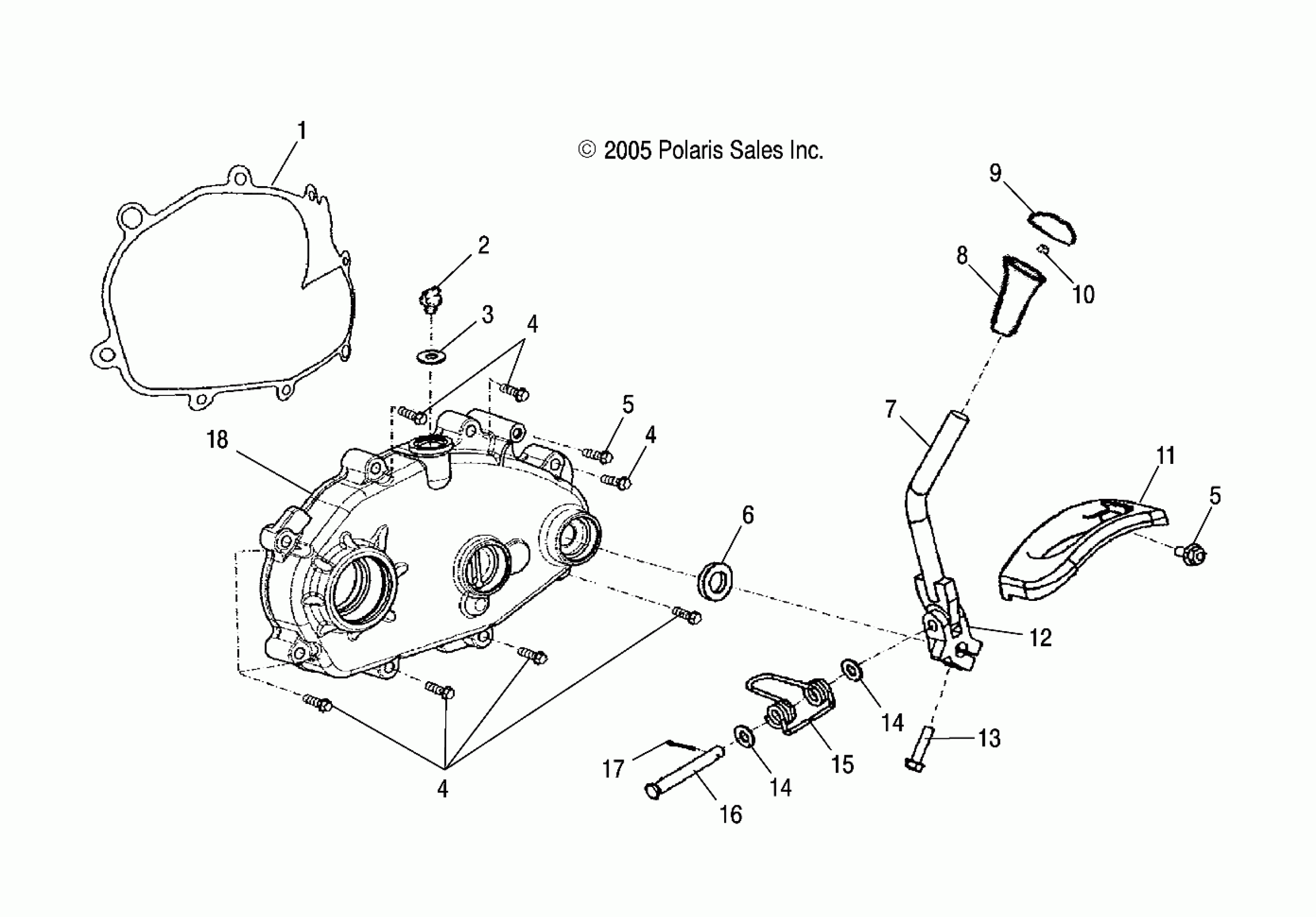

Polaris SPORTSMAN 90 - A05FA09CA TRANSMISSION LEVER - A05FA09CA/CB/CC (4999202399920239B02) Diagram

#

Description
Price

1

Gasket, Transmission Cover

0452169

Unavailable

2

PLUG, OIL

0451813

$5.65

3

O-Ring

0450154

$1.60

4

Bolt, Hex, Flange

0452176

$3.97

4

Bolt, Hex, Flange

0452176

$3.97

4

Bolt, Hex, Flange

0452176

$3.97

5

Bolt, Hex, Washer

0450701

$1.19

5

Bolt, Hex, Washer

0450701

$1.19

6

SEAL, OIL

0452175

$12.13

7

Lever, Transmission

0452166

$15.56

8

KNOB, TRANSMISSION LEVER

0452168

$9.70

9

COVER, TRANSMISSION LEVER KNOB

0450967

$11.32

10

Bolt, Hex

0450309

$3.97

11

Gate, Shift

0452170

$32.37

12

Mount, Shift Lever

0452171

Unavailable

13

Bolt, Hex

0450189

$0.79

14

Washer

0450192

$3.17

14

Washer

0450192

$3.17

15

Spring, Transmission Lever

0452173

$24.27

16

Pin, Transmission Lever

0452174

Unavailable

17

PIN, COTTER

0450719

$3.17

18

Cover, Transmission

0452140

$232.74
