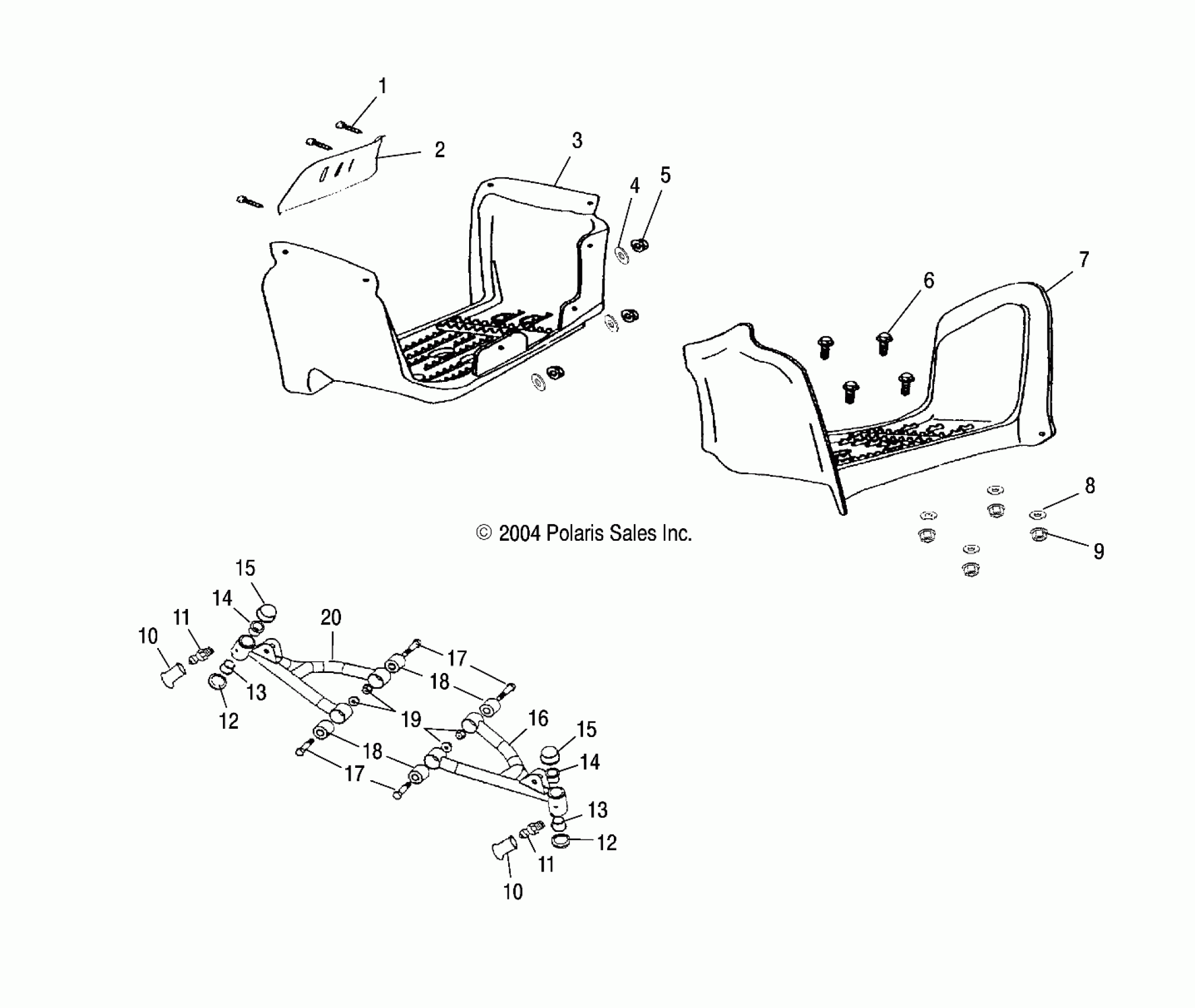

Polaris SPORTSMAN 90 - A05FA09CA SWING ARM/FOOTREST - A05FA09CA/CB/CC (4995069506B04) Diagram

#

Description
Price

1

Bolt, Pan, Phillips

0450622

$2.39

2

Shield, Heat

0450618

Unavailable

3

Footrest, RH

0451170-070

$123.99

4

Washer, Plain

0450710

$1.49

5

Nut, Lock

0450741

$3.19

6

BOLT, HEX

0452215

$3.99

7

Footrest, LH

0451171-070

Unavailable

8

Washer, Plain

0450879

Unavailable

9

NUT, LOCK

0450808

$2.39

10

Cap, Rubber

0450321

$3.19

10

Cap, Rubber

0450321

$3.19

11

Valve, Grease

0450320

$5.59

11

Valve, Grease

0450320

$5.59

12

RUBBER, DUSTPROOF

0450317

$6.39

12

RUBBER, DUSTPROOF

0450317

$6.39

13

Seat, Grease Contain

0450314

$3.99

13

Seat, Grease Contain

0450314

$3.99

14

Seat, Grease Contain

0450313

$3.99

14

Seat, Grease Contain

0450313

$3.99

15

COVER, WATERPROOF

0450316

Unavailable

15

COVER, WATERPROOF

0450316

Unavailable

16

Arm, Suspension, LH

0451705

Unavailable

17

Bolt, Hex

0450820

$5.59

17

Bolt, Hex

0450820

$5.59

18

Bushing

0450288

$8.79

18

Bushing

0450288

$8.79

19

NUT, FLANGE

0450249

$3.99

20

Arm, Suspension, RH

0451706

Unavailable
