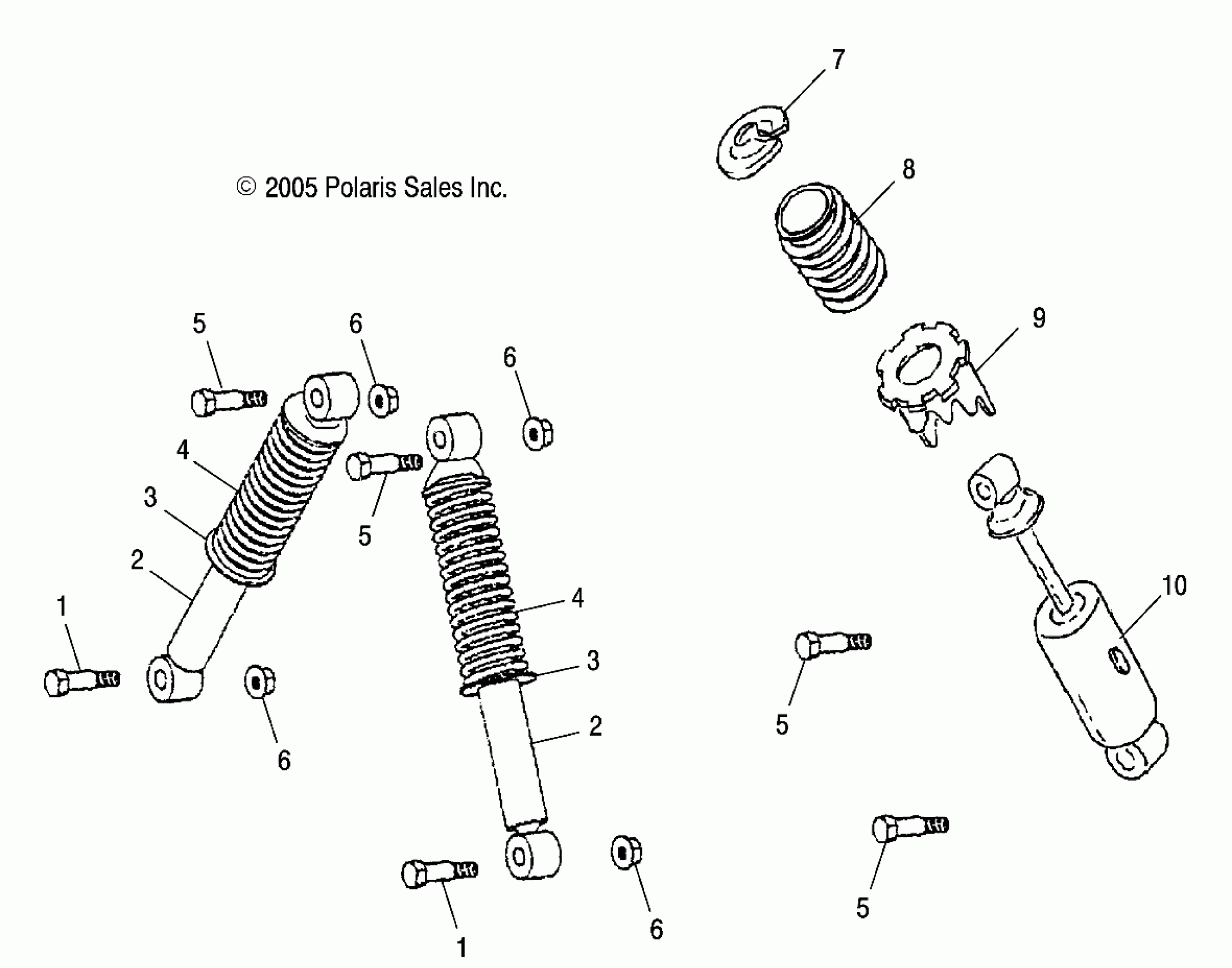

Polaris SPORTSMAN 90 - A05FA09CA SUSPENSION - A05FA09CA/CB/CC (4999202309920230B08) Diagram

#

Description
Price

1

Bolt, Hex

0450868

$5.99

1

Bolt, Hex

0450868

$5.99

2

Tube, Inner, Front

0450738

$94.99

2

Tube, Inner, Front

0450738

$94.99

3

Collar, Adjustment, Front Spring

0451675

Unavailable

3

Collar, Adjustment, Front Spring

0451675

Unavailable

4

Spring, Front Suspension, Indy Red [CC]

0452183-293

Unavailable

4

Spring, Front Suspension, Black [CA][CB]

0452183-067

$50.79

4

Spring, Front Suspension, Indy Red [CC]

0452183-293

Unavailable

4

Spring, Front Suspension, Black [CA][CB]

0452183-067

$50.79

5

BOLT, HEX

0450380

$7.19

5

BOLT, HEX

0450380

$7.19

5

BOLT, HEX

0450380

$7.19

5

BOLT, HEX

0450380

$7.19

6

NUT, FLANGE

0450249

$3.99

6

NUT, FLANGE

0450249

$3.99

6

NUT, FLANGE

0450249

$3.99

6

NUT, FLANGE

0450249

$3.99

7

Retainer, Spring

0450929

$23.81

8

Spring, Rear Suspension, Black

0452181-067

$46.39

9

Collar, Adjustment

0450894

$28.32

10

Shock, Rear

0451078

$133.32
