Description

Price

1

Grip, Hand

0451097

Unavailable

1

Grip, Hand

0451097

Unavailable

2

Wristband

7080891

Unavailable

3

BOLT, BRAKE LEVER, RH

0450806

$2.39

4

Asm., Throttle

0451040

Unavailable

5

Pod, Upper, Camo Green Metallic [CA]

0451165-400

Unavailable

5

Pod, Upper, Indy Red [CC]

0451165-293

Unavailable

5

Pod, Upper, NBU [CB]

0451165-455

Unavailable

6

Bolt, Washer Face, Hex

0450556

$1.99

7

Screw, Socket, Hex

0450148

$3.99

8

Plate, Fixed

0450468

$23.02

9

U-Nut

0450752

$2.39

10

Speedometer, Bezel

0451707

Unavailable

11

Bolt, Brake Lever, LH

0450807

$7.19

12

Asm., Switch, LH

0453359

$127.99

13

Asm., Manual Choke [Incl. 14,15]

0451037

$36.41

14

BOLT

0451148

$3.19

14

BOLT

0451148

$3.19

15

BOLT

0451149

$3.99

16

Lever, Brake, LH

0450693

$27.99

17

NUT, LOCK

0450808

$2.39

17

NUT, LOCK

0450808

$2.39

18

Lock, Park Brake

0450692

Unavailable

19

Harness, Sensor Switch

0451090

Unavailable

20

Asm., Lever, LH (Incl. 13,14,15,23,24)

0450463

$69.99

21

COVER, CLAMP, LH

0450460

$35.99

22

CLAMP, SADDLE

0450459

$39.99

23

WASHER

0450279

$3.19

24

NUT, LOCK

0450276

$3.99

25

Screw, Tapping

0451132

Unavailable

25

Screw, Tapping

0451132

Unavailable

26

Bolt, Pan, Phillips

0450667

$5.59

26

Bolt, Pan, Phillips

0450667

$5.59

27

Pod, Handlebar, Lower

0452185

Unavailable

28

Cable, Throttle

0450471

$51.99

29

COVER, CLAMP, RH

0450461

$27.99

30

Handlebar, Silver

0451161

Unavailable

31

ARM, THROTTLE

0452202

$23.99

32

BRACKET, BRAKE CABLE

0450994

$31.99

33

Bolt

0450309

Unavailable

34

Lever, Brake, RH

0450694

$27.99

35

Asm., Brake Lever, RH [Incl. 4,32-34]

0451096

$174.99

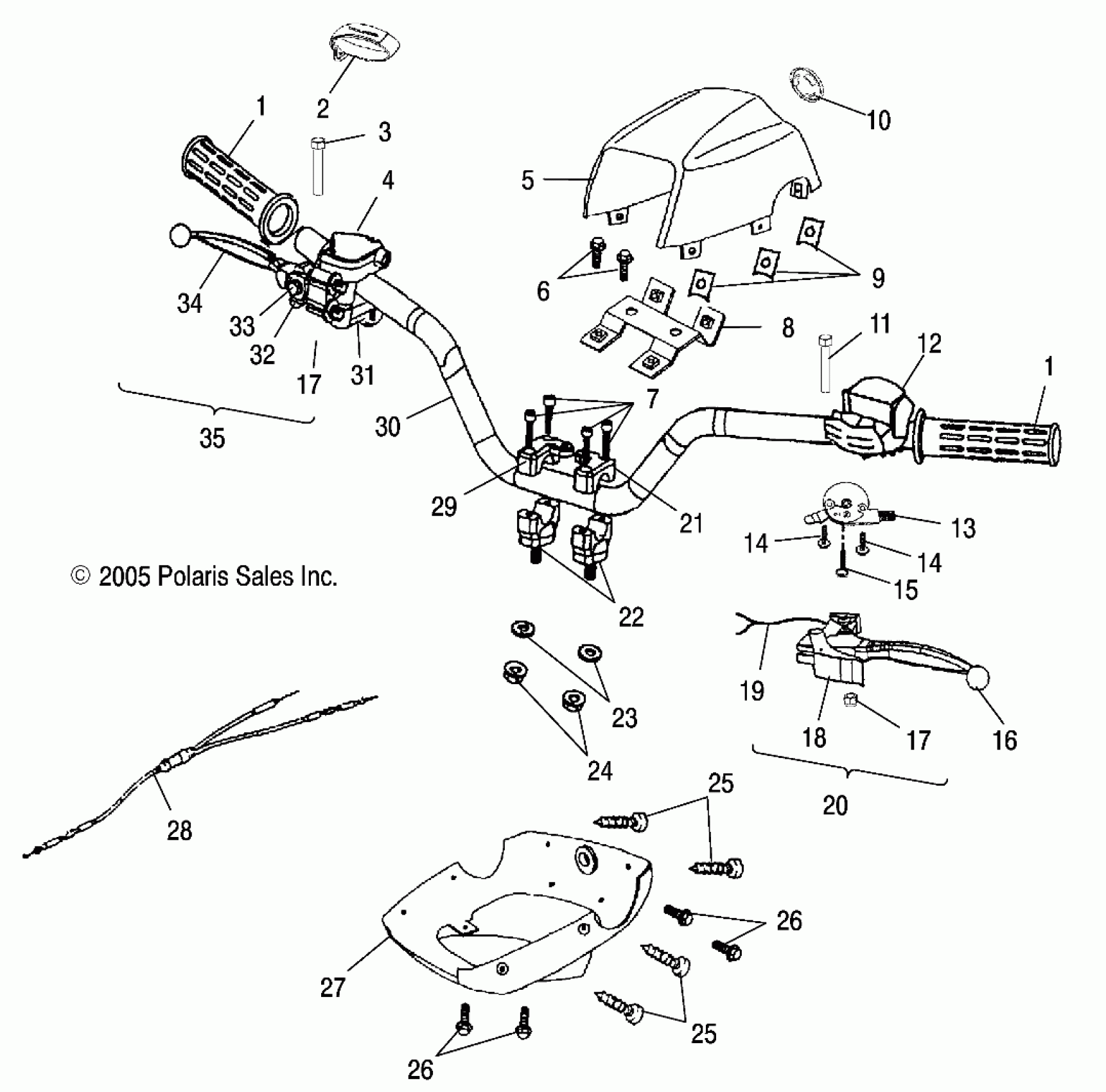

Polaris SPORTSMAN 90 - A05FA09CA HANDLEBAR - A05FA09CA/CB/CC (4999202309920230B13) Diagram
