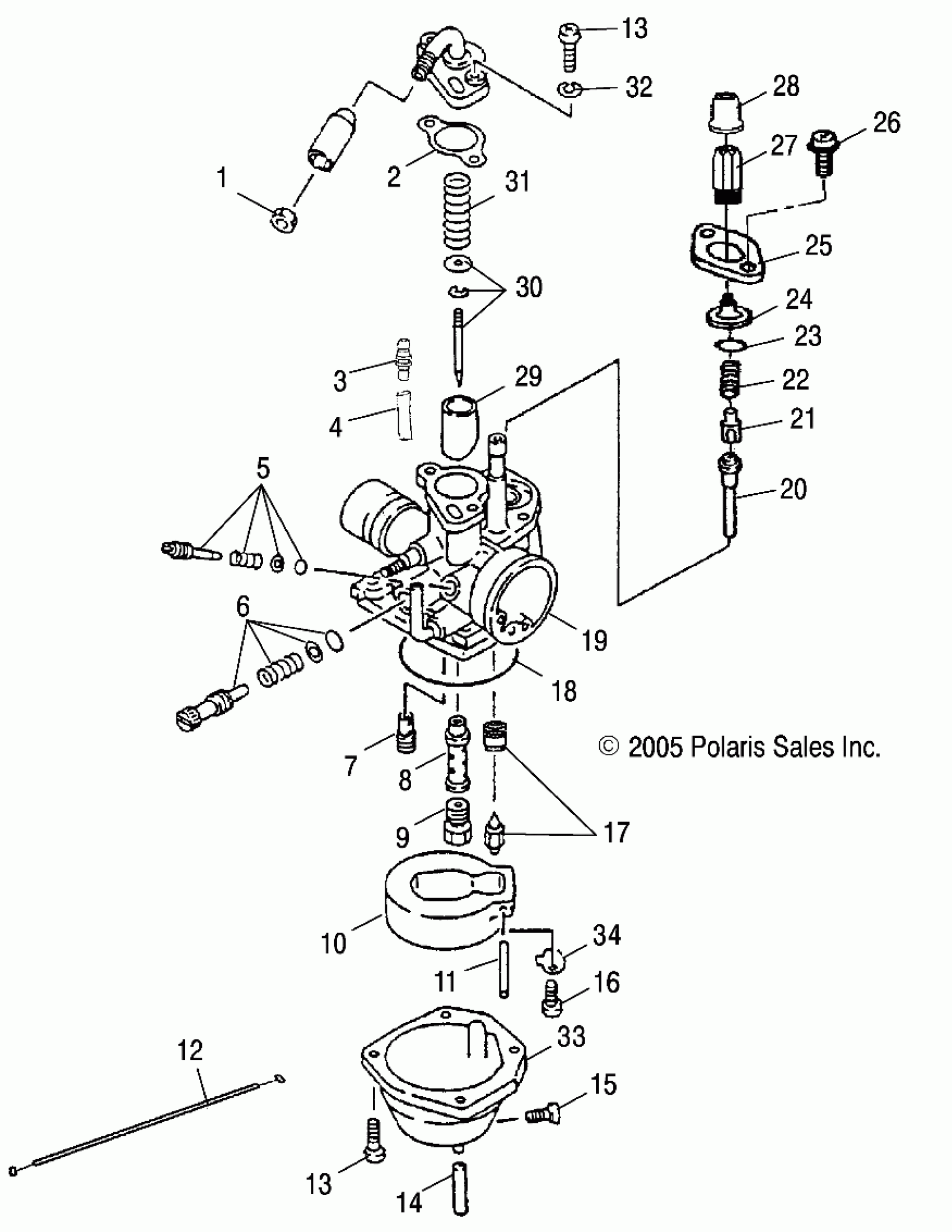

Polaris SPORTSMAN 90 - A05FA09CA CARBURETOR - A05FA09CA/CB/CC (4999202309920230A08) Diagram

#

Description
Price

1

Nut, Cable Adjust

0450119

$2.23

2

Gasket

0450082

$13.75

3

Plug, Oil

0451014

$1.99

4

Pipe, Oil

0451013

$3.99

5

Screw Set, Air Adjust

0450102

Unavailable

6

Screw Set, Throttle

0450113

Unavailable

7

Jet, Pilot

0451024

$39.99

8

Nozzle, Needle

0452197

Unavailable

9

Jet, Main

0450097

Unavailable

10

Float, Carb

0450976

$59.99

11

Pin, Float

0450117

Unavailable

12

Cable, Choke

0451032

Unavailable

13

Bolt, Pan, Phillips

0450086

$5.59

13

Bolt, Pan, Phillips

0450086

$5.59

14

Tube, Overflow

0450098

Unavailable

15

Plug, Drain

0450104

$10.39

16

Bolt, Pan, Phillips

0450108

Unavailable

17

Valve Set, Needle

0451669

$63.99

18

Seal, Float Chamber

0451054

$13.75

19

Asm., Carburetor [Incl. All Less 12]

0451668

$367.99

20

Nozzle, Choke

0450923

Unavailable

21

Valve, Choke

0451055

$13.75

22

Spring, Choke Return

0451057

$9.59

23

O-Ring

0451028

$7.99

24

Base, Manual Choke

0451058

Unavailable

25

Bracket, Manual Choke

0451056

Unavailable

26

Bolt, Pan, Phillips

0450106

$5.99

27

Support, Cable

0451060

$10.51

28

Cover, Cable Support

0451059

Unavailable

29

Slide, Carburetor

0451051

$35.71

30

Needle Set

0452196

Unavailable

31

Spring, Carb Slide

0451050

Unavailable

32

Washer, Spring

0450087

Unavailable

33

Bowl, Float

0453374

$48.40

34

Bracket, Valve, Fuel Inlet

0453807

Unavailable
