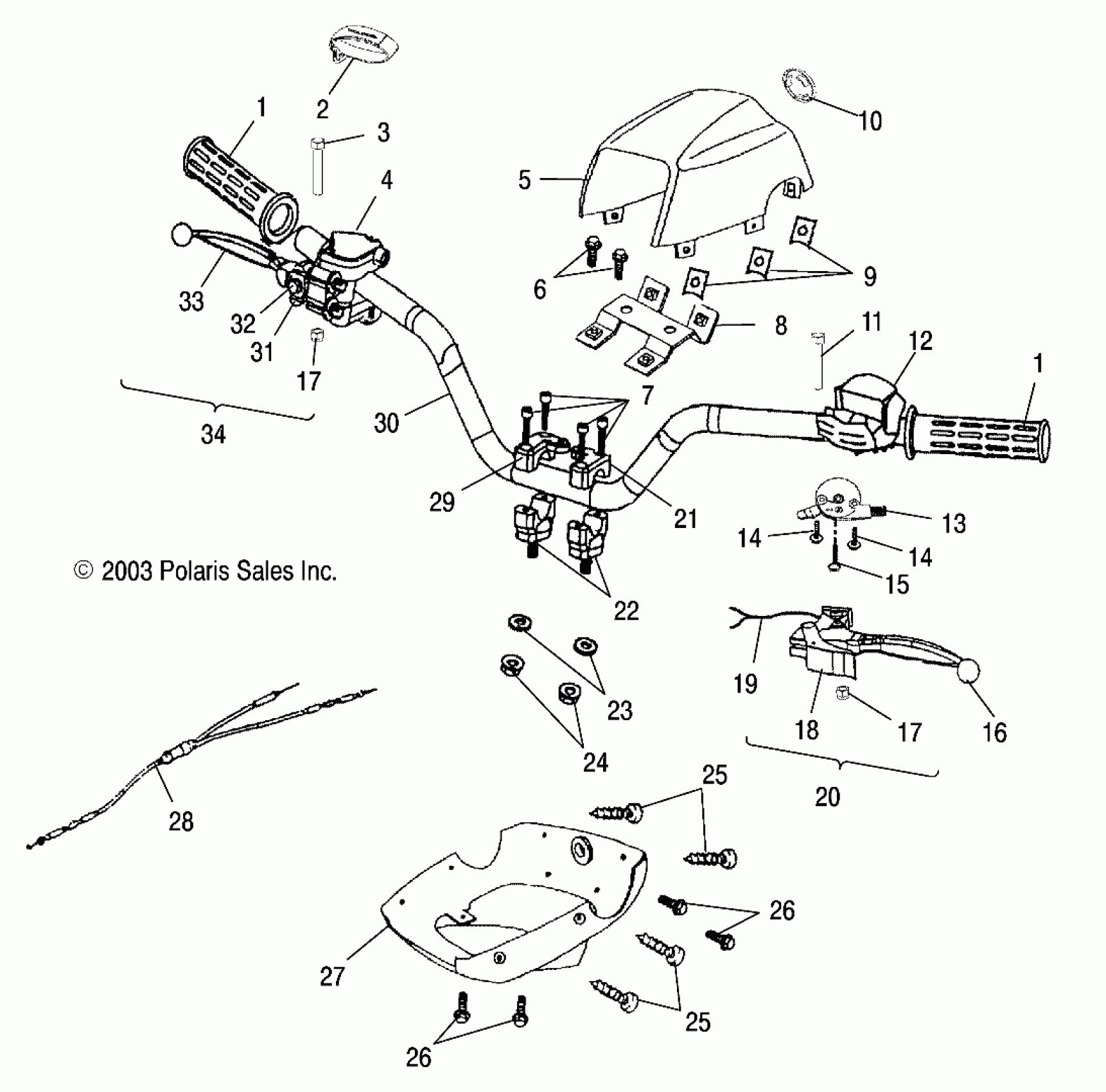

Polaris SPORTSMAN 90 - A04FA09CA HANDLEBAR - A04FA09CA/CB (4987808780B11) Diagram

#

Description
Price

1

Grip, Hand

0451097

$28.32

1

Grip, Hand

0451097

$28.32

2

Wristband

7080891

Unavailable

3

BOLT, BRAKE LEVER, RH

0450806

$2.38

4

Asm., Throttle

0451040

Unavailable

5

Pod, Upper [CA]

0451165-400

Unavailable

5

Pod, Upper, N.B.U. [CB]

0451165-473

Unavailable

6

Bolt, Washer Face, Hex

0450556

Unavailable

7

Screw, Socket, Hex

0450148

$3.97

8

Plate, Fixed

0450468

$23.02

9

U-Nut

0450752

$2.38

10

Speedometer, Bezel

0451707

$48.40

11

Bolt, Brake Lever, LH

0450807

$7.14

12

Asm., Switch, LH

0453359

$151.99

13

Asm., Manual Choke [Incl. 14,15]

0451037

$40.46

14

BOLT

0451148

$3.17

14

BOLT

0451148

$3.17

15

BOLT

0451149

$3.97

16

Lever, Brake, LH

0450693

$28.32

17

NUT, LOCK

0450808

$2.38

17

NUT, LOCK

0450808

$2.38

18

Lock, Park Brake

0450692

Unavailable

19

Harness, Sensor Switch

0451090

$48.56

20

Asm., Lever, LH (Incl. 13,14,15,23,24)

0450463

$69.99

21

COVER, CLAMP, LH

0450460

$35.71

22

CLAMP, SADDLE

0450459

$39.68

23

WASHER

0450279

$3.17

24

NUT, LOCK

0450276

$3.97

25

Screw, Tapping

0451132

$1.59

25

Screw, Tapping

0451132

$1.59

26

Bolt, Pan, Phillips

0450667

$5.56

26

Bolt, Pan, Phillips

0450667

$5.56

27

Pod, Lower, Handlebar

0450669

Unavailable

28

Cable, Throttle

0450471

$52.60

29

COVER, CLAMP, RH

0450461

$27.78

30

Handlebar, Silver

0451161

Unavailable

31

BRACKET, BRAKE CABLE

0450994

$32.37

32

Bolt

0450309

$3.97

33

Lever, Brake, RH

0450694

$28.32

34

Asm., Brake Lever, RH [Incl. 4,31-33]

0451096

$174.99
