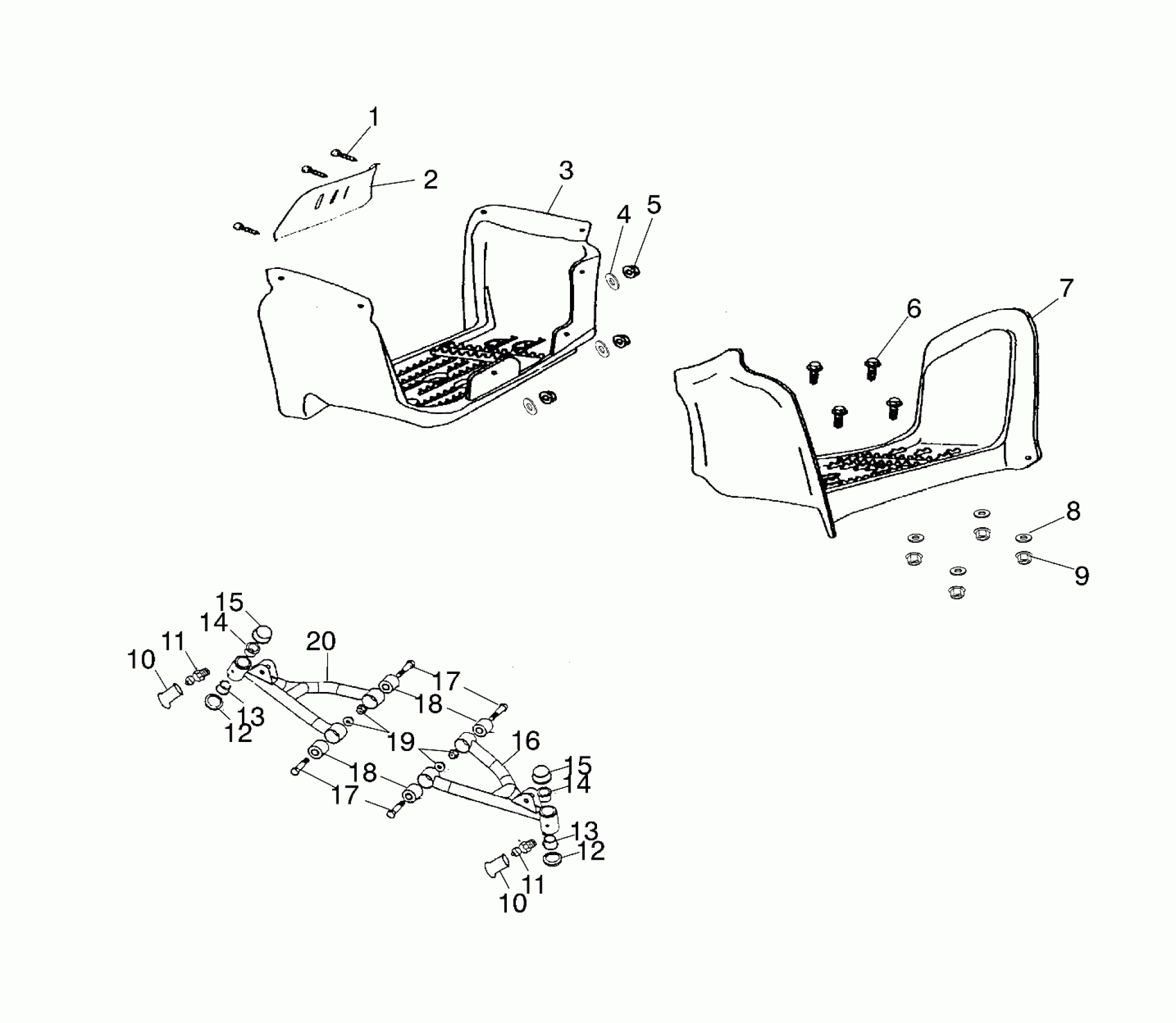

Polaris SPORTSMAN 90 - A02FA09CB SWING ARM/FOOTREST - A02FA09CA/CB/CC (4970887088B03) Diagram

#

Description
Price

1

Bolt, Pan, Phillips

0450622

$2.38

2

Shield, Heat

0450618

Unavailable

3

Footrest, RH

0450617

Unavailable

4

Washer, Plain

0450710

$1.19

5

Nut, Lock

0450741

$3.17

6

Bolt, Hex

0450340

$3.97

7

Footrest, LH

0450616

Unavailable

8

Washer, Plain

0450879

Unavailable

9

NUT, LOCK

0450808

$2.38

10

Cap, Rubber

0450321

$3.22

10

Cap, Rubber

0450321

$3.22

11

Valve, Grease

0450320

$6.46

11

Valve, Grease

0450320

$6.46

12

RUBBER, DUSTPROOF

0450317

$6.46

12

RUBBER, DUSTPROOF

0450317

$6.46

13

Seat, Grease Contain

0450314

$3.97

13

Seat, Grease Contain

0450314

$3.97

14

Seat, Grease Contain

0450313

$3.97

14

Seat, Grease Contain

0450313

$3.97

15

COVER, WATERPROOF

0450316

$7.27

15

COVER, WATERPROOF

0450316

$7.27

16

Arm, Suspension, LH

0450902

Unavailable

17

Bolt, Hex

0450820

$5.56

17

Bolt, Hex

0450820

$5.56

18

Bushing

0450288

$8.73

18

Bushing

0450288

$8.73

19

NUT, FLANGE

0450249

$3.97

20

Arm, Suspension, RH

0450901

Unavailable
