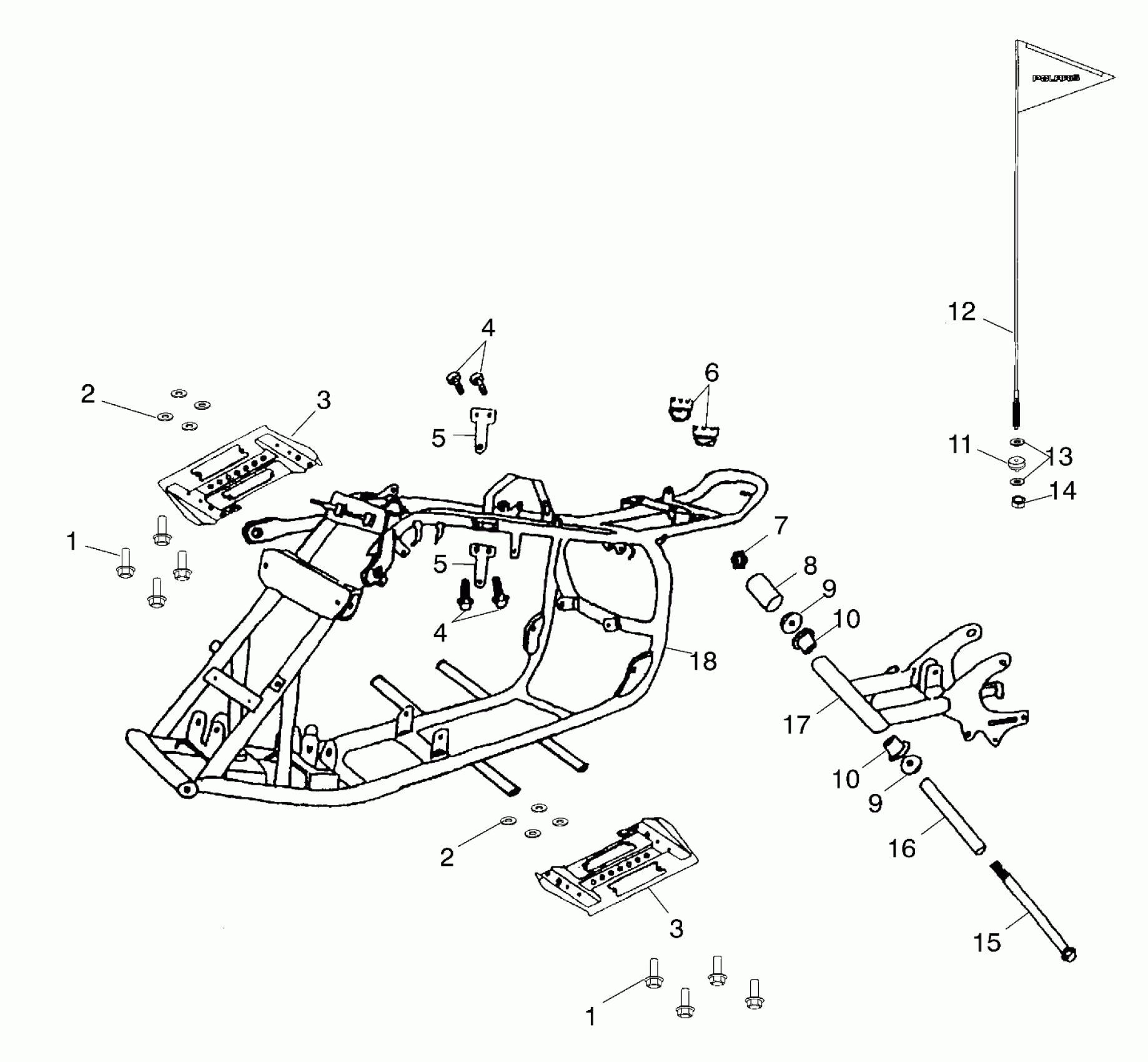

Polaris SPORTSMAN 90 - A02FA09CB FRAME BODY - A02FA09CA/CB/CC (4970887088B01) Diagram

#

Description
Price

1

Bolt, Hex, Washer Face

0450325

Unavailable

1

Bolt, Hex, Washer Face

0450325

Unavailable

2

Grommet

0450613

$1.59

2

Grommet

0450613

$1.59

3

Board, Bottom, Footwell

0450591

Unavailable

3

Board, Bottom, Footwell

0450591

Unavailable

4

Bolt, Hex, Washer Face

0450887

$3.99

4

Bolt, Hex, Washer Face

0450887

$3.99

5

Plate, Engine Bracket

0450299

$9.84

5

Plate, Engine Bracket

0450299

$9.84

6

Rubber, Seat

0450290

$7.19

7

Nut, Lock

0450878

$10.39

8

Sleeve, Rubber

0450304

$10.39

9

COVER, SWING ARM SEAL

0450303

$10.39

9

COVER, SWING ARM SEAL

0450303

$10.39

10

SEAT, GREASE CONTAIN

0450302

$6.39

10

SEAT, GREASE CONTAIN

0450302

$6.39

11

Spacer, Threaded

0450944

Unavailable

12

Flag

0450900

Unavailable

13

Washer, Spring

0450844

$3.19

14

Nut, Hex

0450845

$1.98

15

Bolt, Hex

0450305

$35.99

16

Tube, Spacer

0450301

$36.41

17

Subasm., Swing Arm

0450943

Unavailable

18

Frame CB

0450989

Unavailable

18

Frame CA

0450861

Unavailable
