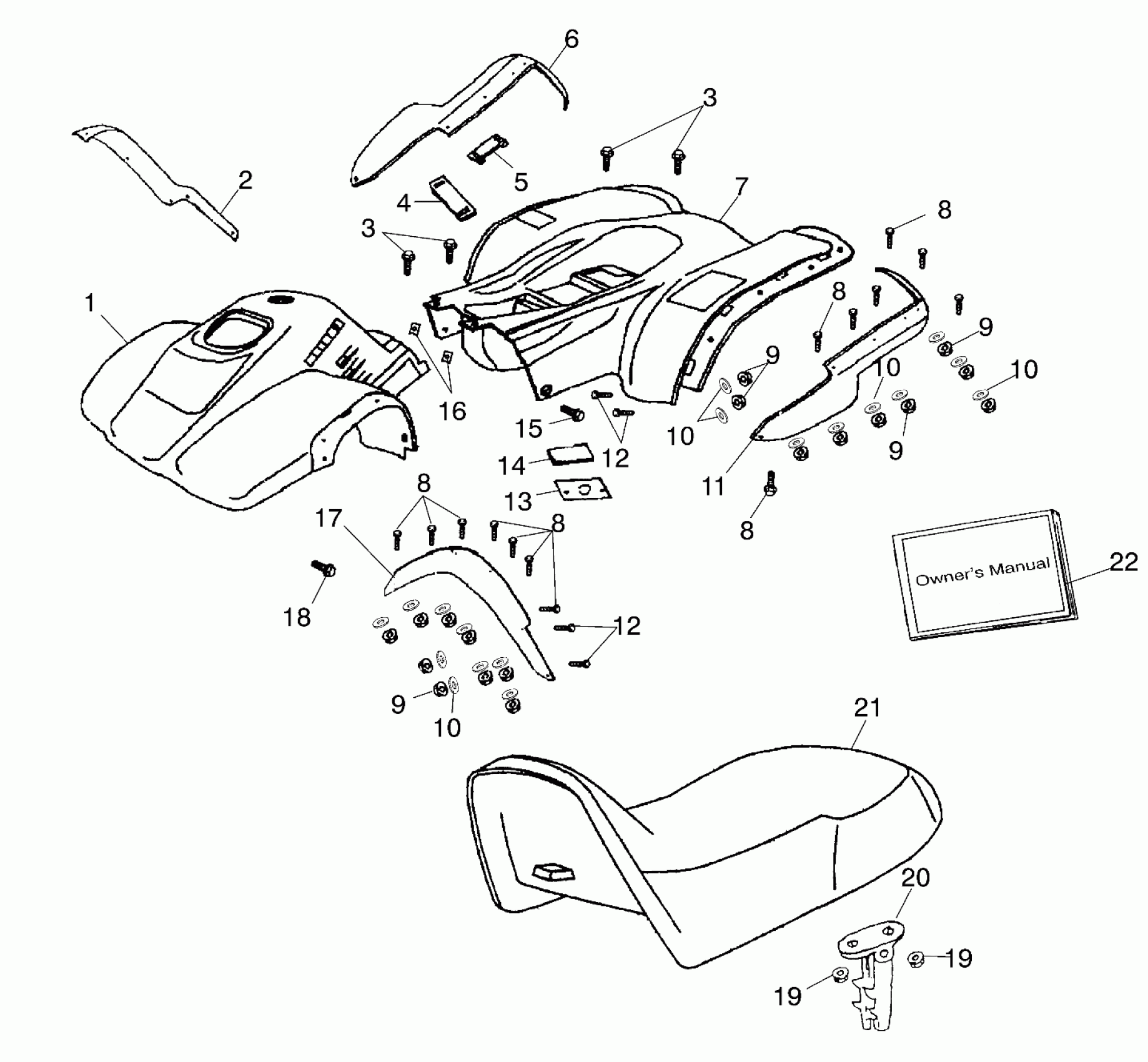

Polaris SPORTSMAN 90 - A02FA09CB CAB/SEAT - A02FA09CA/CB/CC (4970887088B04) Diagram

#

Description
Price

1

Cab, Front CA

0450946

$123.99

1

Cab, Front CB

0450990

$212.70

1

Cab, Front CC

0451010

$221.43

2

Mudflap, Front, RH

0450627

Unavailable

3

Bolt, Hex

0450340

$3.97

3

Bolt, Hex

0450340

$3.97

4

Strap, Battery

0450897

$6.46

5

Strap, Battery, Tool Box

0450898

$5.65

6

Mudflap, Rear, RH

0450629

Unavailable

7

Cab, Rear CA

0450947

Unavailable

7

Cab, Rear CB

0450991

$199.21

7

Cab, Rear CC

0451011

$221.43

8

Bolt, Pan, Phillips

0450667

$5.56

8

Bolt, Pan, Phillips

0450667

$5.56

8

Bolt, Pan, Phillips

0450667

$5.56

8

Bolt, Pan, Phillips

0450667

$5.56

8

Bolt, Pan, Phillips

0450667

$5.56

9

Nut, Lock

0450741

$3.17

9

Nut, Lock

0450741

$3.17

9

Nut, Lock

0450741

$3.17

9

Nut, Lock

0450741

$3.17

10

Washer, Plain

0450710

$1.19

10

Washer, Plain

0450710

$1.19

10

Washer, Plain

0450710

$1.19

10

Washer, Plain

0450710

$1.19

11

Mudflap, Rear, LH

0450628

Unavailable

12

Bolt, Phillips

0450622

$2.38

12

Bolt, Phillips

0450622

$2.38

13

Pad, Protector

0450345

$44.51

14

Rubber, Battery

0450346

$2.41

15

Bolt, Pan, Phillips

0450297

$4.76

16

Nut, U-Plate

0450342

$4.76

17

Mudflap, Front, LH

0450626

Unavailable

18

Bolt, Hex

0450824

$2.38

19

NUT, FLANGE, HEX

0450880

$3.97

19

NUT, FLANGE, HEX

0450880

$3.97

20

Hook, Seat

0450356

$32.37

21

Asm., Seat

0450631

Unavailable

22

Manual, Owner's, 2002 Youth ATV

9917080

$27.99
