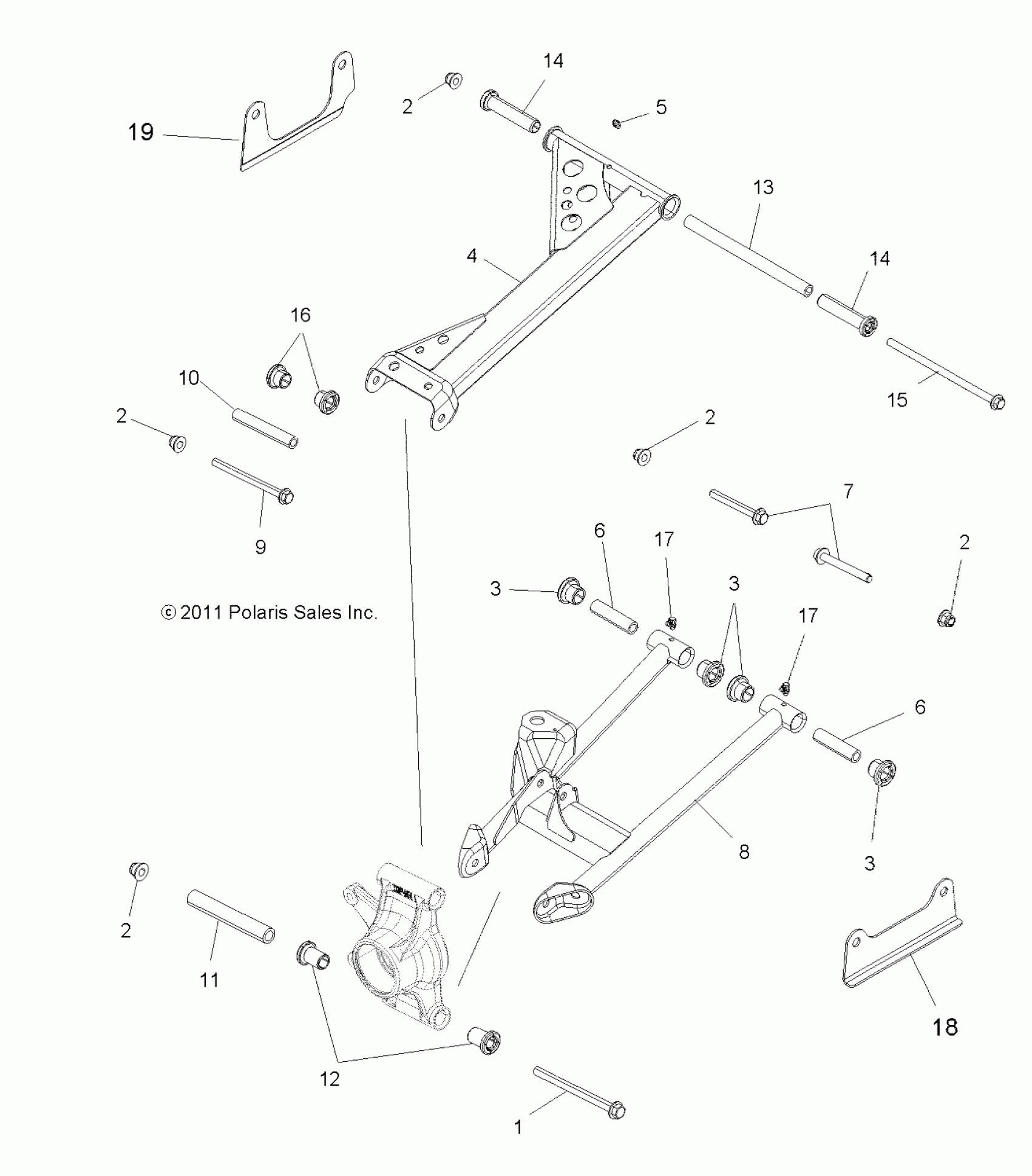

Polaris SPORTSMAN 850 WV - A14YN8EAJ/EAT SUSPENSION, REAR - A14YN8EAJ/EAT (49MVSUSPRR12SP850) Diagram

#

Description
Price

1

BOLT, FLANGE

7518467

$5.59

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

3

BUSHING-STANDARD,ORV

5439874

$2.39

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

3

BUSHING-STANDARD,ORV

5439874

$2.39

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

3

BUSHING-STANDARD,ORV

5439874

$2.39

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

4

ARM, CONTROL, LOWER, FRONT, LH, M BLK

1019810-458

$123.99

4

ARM, CONTROL, UPPER, REAR, RH, MATTE BLK

1018218-458

Unavailable

5

FITTING, LUBRICATING

7080433

$1.49

6

SHAFT, A-ARM

5137346

$14.39

6

SHAFT, A-ARM

5137346

$14.39

7

SCREW

7519016

$6.35

8

ARM, CONTROL, LOWER, REAR, LH, BLACK

1018846-458

$155.99

8

ARM, CONTROL, LOWER, REAR, RH, BLACK

1018847-458

$92.55

9

BOLT, FLANGE

7518675

$5.59

10

SHAFT, PIVOT

5137590

$8.79

11

SHAFT, A-ARM, LOWER CONTROL ARM

5136473

Unavailable

12

BUSHING, LOWER CONTROL ARM

5437651

$6.39

13

SHAFT, PIVOT

5137594

$8.79

14

BUSHING, A-ARM, LONG

5436973

$5.19

14

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

14

BUSHING, A-ARM, LONG

5436973

$5.19

14

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

15

SCREW

7519198

$29.99

16

BUSHING-STANDARD,ORV

5439874

$2.39

16

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

17

FITTING, ZERK

7080510

$5.59

17

FITTING, ZERK

7080510

$5.59

18

BRACE, LOWER CONTROL ARM, FRONT, BLACK

5257067-067

$28.97

19

BRACE, LOWER CONTROL ARM, REAR, BLACK

5257068-067

$14.95
