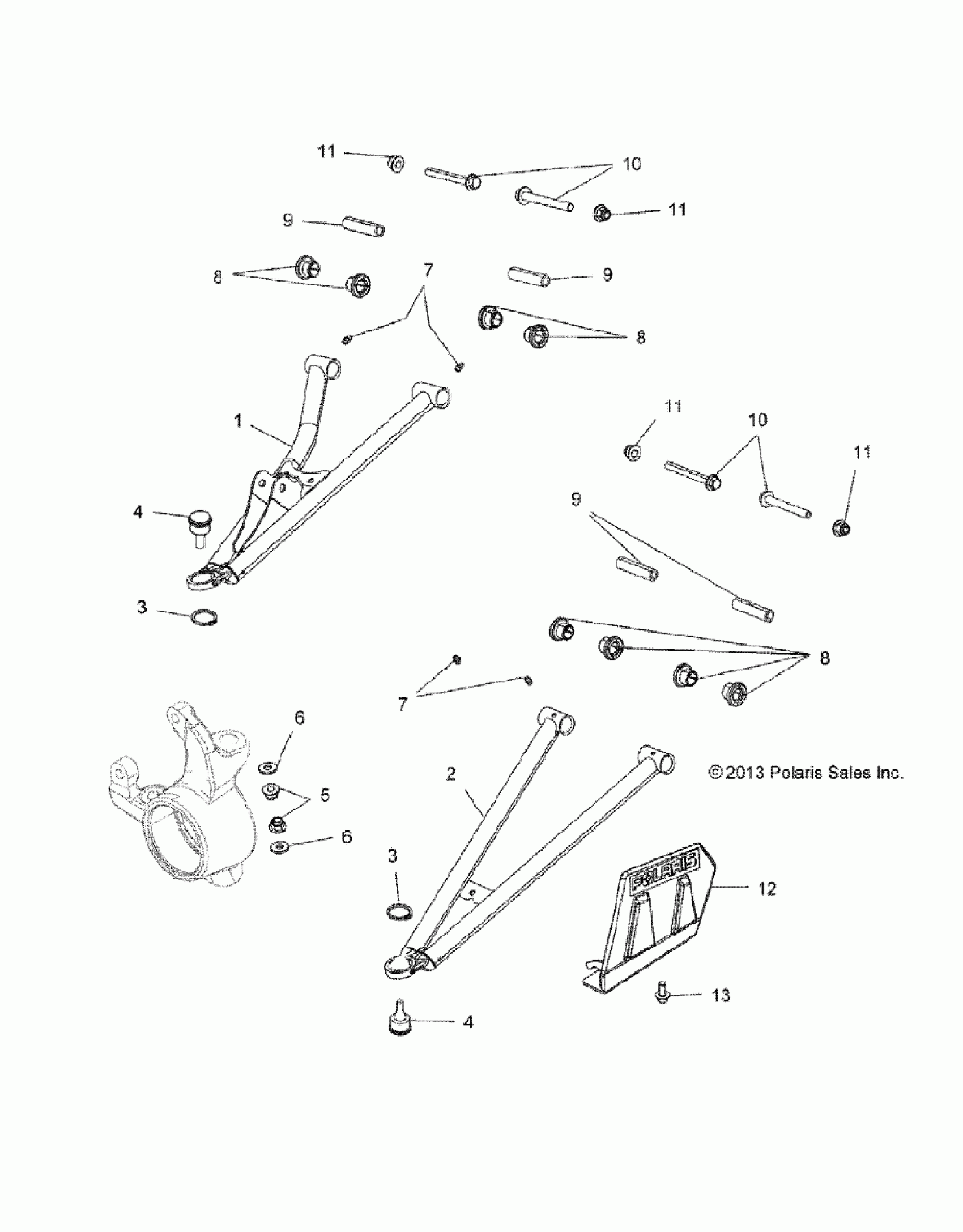

Polaris SPORTSMAN 850 WV - A14YN8EAJ/EAT SUSPENSION, FRONT A-ARMS - A14YN8EAJ/EAT (49MVSUSPFRT14850WV) Diagram

#

Description
Price

1

ARM, CONTROL, UPPER, FRONT, LH, MATTE BLACK

1020189-458

$110.32

1

ARM, CONTROL, UPPER, FRONT, RH, MATTE BLACK

1020190-458

$110.32

2

ARM, CONTROL, LOWER, FRONT, LH, M BLK

1019810-458

$123.99

2

ARM, CONTROL, LOWER, FRONT, RH, M BLK

1019811-458

$123.99

3

RING, RETAINING

7710533

$2.39

3

RING, RETAINING

7710533

$2.39

4

JOINT, BALL

7061192

$75.99

4

JOINT, BALL

7061192

$75.99

5

NUT

7547695

$7.19

6

WASHER

7556376

$3.19

6

WASHER

7556376

$3.19

7

FITTING, LUBRICATING

7080433

$1.49

7

FITTING, LUBRICATING

7080433

$1.49

8

BUSHING-STANDARD,ORV

5439874

$2.39

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

8

BUSHING-STANDARD,ORV

5439874

$2.39

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

8

BUSHING-STANDARD,ORV

5439874

$2.39

8

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

9

SHAFT, A-ARM

5137346

$14.39

9

SHAFT, A-ARM

5137346

$14.39

9

SHAFT, A-ARM

5137346

$14.39

10

BOLT, FLANGE

7518466

$4.79

10

BOLT, FLANGE

7518466

$4.79

11

Nut, Flange

7547313

$1.49

11

Nut, Flange

7547313

$1.49

11

Nut, Flange

7547313

$1.49

11

Nut, Flange

7547313

$1.49

12

SHIELD, CV, FRONT, LH, BLACK

5436657-070

$12.79

12

SHIELD, CV, FRONT, RH, BLACK

5436658-070

$12.79

13

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49
