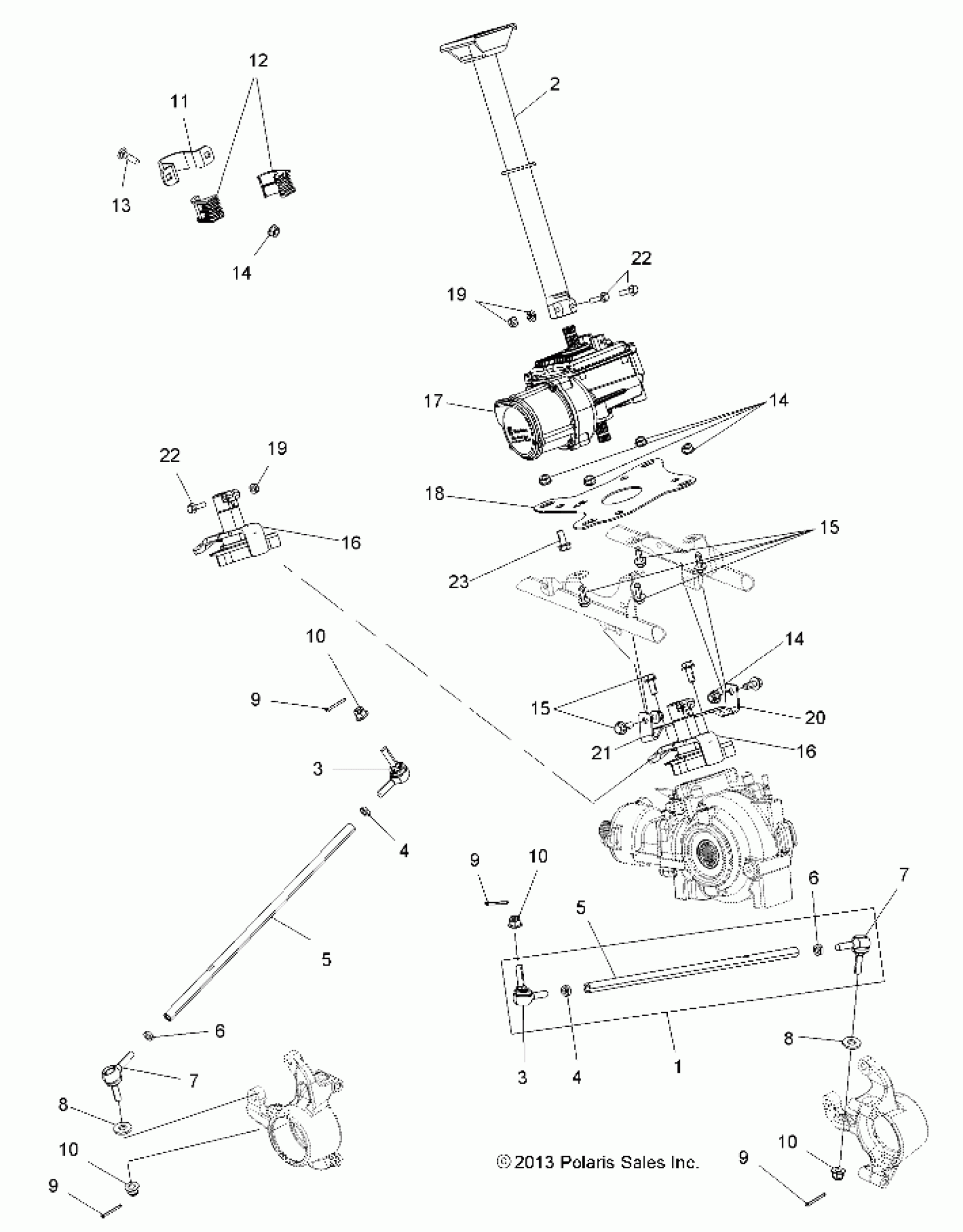

Polaris SPORTSMAN 850 WV - A14YN8EAJ/EAT STEERING, STEERING POST ASM. - A14YN8EAJ/EAT (49ATVSTEERING14SP850) Diagram

#

Description
Price

1

ASM., TIE ROD [INCL. 3-7]

1824007

$99.99

2

POST, STEERING, UPPER, BLACK

1823781-329

$111.99

3

Rod End, RH

-------

Unavailable

3

Rod End, RH

-------

Unavailable

4

NUT, JAM, RH

-------

Unavailable

4

NUT, JAM, RH

-------

Unavailable

5

Tie Rod

-------

Unavailable

5

Tie Rod

-------

Unavailable

6

NUT, JAM, LH

-------

Unavailable

6

NUT, JAM, LH

-------

Unavailable

7

Rod End, LH

-------

Unavailable

7

Rod End, LH

-------

Unavailable

8

WASHER

7556153

$1.99

8

WASHER

7556153

$1.99

9

Pin, Cotter

7661205

$1.49

9

Pin, Cotter

7661205

$1.49

9

Pin, Cotter

7661205

$1.49

9

Pin, Cotter

7661205

$1.49

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

BRACKET, STEERING, UPPER [BUILT 3/13/14 AND AFTER]

5259997

$27.99

11

BRACKET, STEERING, UPPER [BUILT 3/12/14 AND BEFORE]

5249143

Unavailable

12

BUSHING, STEERING, UPPER

5438904

$4.79

13

BOLT, CARRIAGE

7518479

$3.99

14

Nut, Flange

7547317

Unavailable

14

Nut, Flange

7547317

Unavailable

14

Nut, Flange

7547317

Unavailable

15

Bolt, Flange

7518450

$1.59

15

Bolt, Flange

7518450

$1.59

16

KIT, STEERING POST, LOWER, BOLTED [INCL. POST, HARDWARE]

2205364

$151.99

16

KIT, STEERING POST, LOWER, BOLTED [INCL. POST, HARDWARE]

2205364

$151.99

17

ASM., POWER STEERING

2412743

$1,222.99

18

BRACKET, POWER STEERING, BLACK

5254633-329

$39.99

19

NUT-M6 FLANGE,NYLOC

7547274

$1.49

19

NUT-M6 FLANGE,NYLOC

7547274

$1.49

20

BRACKET, FRONT DRIVE, LH, BLACK

5253166-329

$79.19

21

BRACKET, FRONT DRIVE, RH, BLACK

5253167-329

Unavailable

22

SCREW, FLANGE

7516827

$6.39

22

SCREW, FLANGE

7516827

$6.39

23

BOLT, FLANGE

7518558

$3.99
