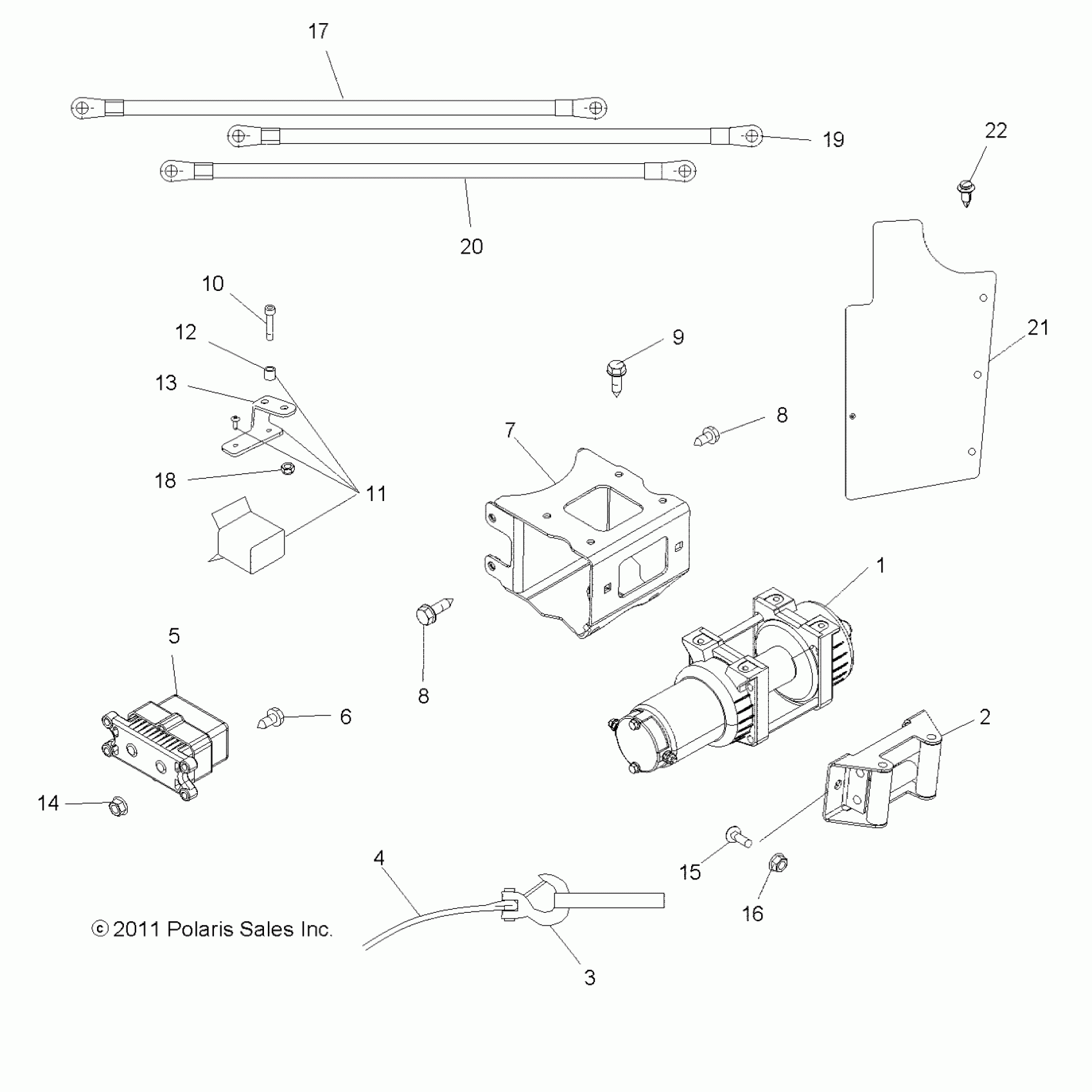

Polaris SPORTSMAN 850 WV - A14YN8EAJ/EAT OPTIONS, WINCH - A14YN8EAJ/EAT (49MVWINCH12SP850) Diagram

#

Description
Price

1

WINCH, FRONT [INCL. BLUE/YELLOW WIRES ATTACHED TO MOTOR, BOOTS, FAIRLEAD, HOOK, CABLE AND MOUNTING HARDWARE]

2203614

$879.99

2

ROLLER, FAIRLEAD [INCL. BRACKET AND ROLLERS]

2411848

$79.99

3

HOOK-LATCH,WINCH

2411836

$10.99

4

CABLE, WINCH

2878890

$39.99

5

CONTACTOR

4011165

Unavailable

6

SCREW

7512242

$2.39

7

MOUNT, WINCH

1018438

Unavailable

8

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

8

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

9

BOLT

7518702

$3.99

10

SCREW

7519220

$1.59

11

ASM., SWITCH, WINCH [INCL. SWITCH, BRACKET, SPACERS]

4013608

$37.99

12

SPACER

5334334

$21.99

13

BRACKET, SWITCH, WINCH

5250830

Unavailable

14

Nut, Nylok, Flange

7542153

$1.59

15

KIT, WINCH HARDWARE

2878899

Unavailable

16

NUT, NYLOK

2876802

Unavailable

17

HARNESS, MULTI MOUNT, BLUE/YELLOW

4013605

$47.67

18

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

19

CABLE, BLACK, GROUND

4013606

$9.99

20

CABLE, RED, POWER

4013607

$9.99

21

COVER, WIRE, RUBBER

5813760

$15.99

22

Rivet

7661855

$1.49
