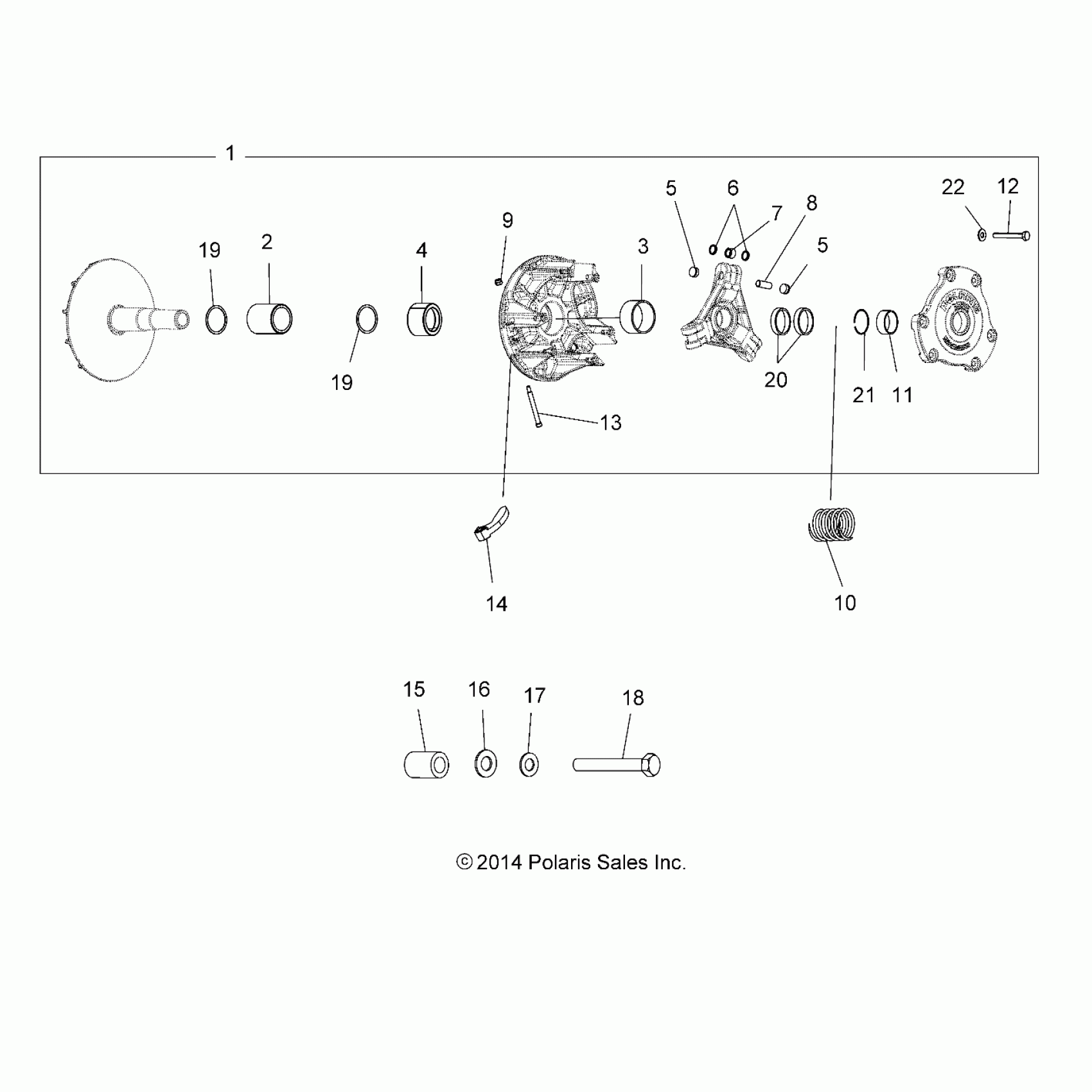

Polaris SPORTSMAN 850 WV - A14YN8EAJ/EAT DRIVE TRAIN, PRIMARY CLUTCH - A14YN8EAJ/EAT (49MVCLUTCHDRV12SP850) Diagram

#

Description
Price

1

CLUTCH, DRIVE, BASIC, EBS [INCL. 1-9,11-13,19,21,22]

1323020

$341.99

2

ASM., CLUTCH, ONEWAY

1521667

$60.70

3

BEARING

3514492

$31.75

4

SPACER, CLUTCH, PM

5632328

$33.24

5

BUTTON, CLUTCH

5439254

$8.08

5

BUTTON, CLUTCH

5439254

$8.08

6

WASHER-CLUTCH,SPIDER ROLLER

5438247

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

PIN-ROLLER

5020422

$2.38

9

NUT, FLEXLOC

7541906

$3.17

10

SPRING, CLUTCH, 63-226

7043500

$39.99

11

COVER, BEARING

3576510

$9.52

12

SCREW

7517238

$4.76

13

BOLT, SHOULDER

7512266

$3.17

14

ASM., WEIGHT, BUSHING, 27-93

1323009

$49.99

15

BUSHING-.475X.770X.50

5437682

$4.84

16

WASHER, FLAT

7556468

$3.97

17

WASHER, INTERLOCK

7556377

$3.17

18

BOLT

7518868

$9.52

19

WASHER-CLUTCH,VESPEL

7556335

$6.35

19

WASHER-CLUTCH,VESPEL

7556335

$6.35

20

SPACER, CLUTCH LIMITER

5438737

$3.97

21

RING-RETAINING,COVER

7710417

$1.19

22

Washer, Flat

7558301

$1.19
