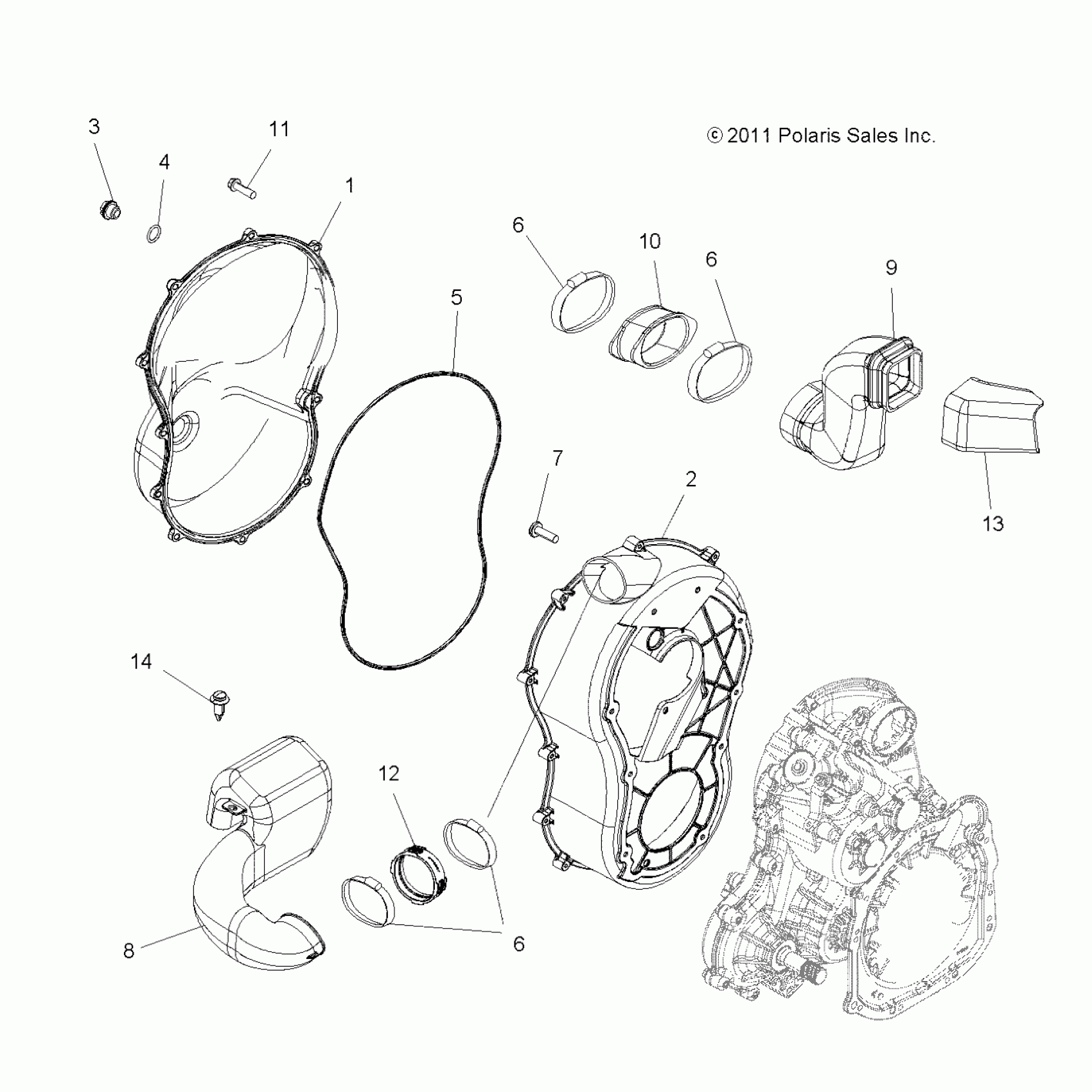

Polaris SPORTSMAN 850 WV - A14YN8EAJ/EAT BODY, CLUTCH COVER - A14YN8EAJ/EAT (49MVCLUTCHCVR12SP850) Diagram

Description

Price

ASM., COVER, OUTER [INCL. OUTER COVER,3,4]

2633919

$149.75

COVER, CLUTCH INNER

5438127

$178.08

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

O RING-.364X.504X.07

5410542

$4.84

SEAL, COVER, CLUTCH

5521802

$36.41

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

CLAMP-BAND,NARROW 70-90MM

7081279

$3.17

SCREW

7518914

$3.17

DUCT, OUTLET

5439157

$31.99

DUCT, AIR INLET

5436820

$48.56

Boot, Clutch, Inlet

5413177

$40.46

SCREW

7519849

$3.17

BOOT, OUTLET, DUCT

5413667

$8.08

BOOT, INLET, DUCT

5413516

$9.70

Rivet

7661855

$1.19
