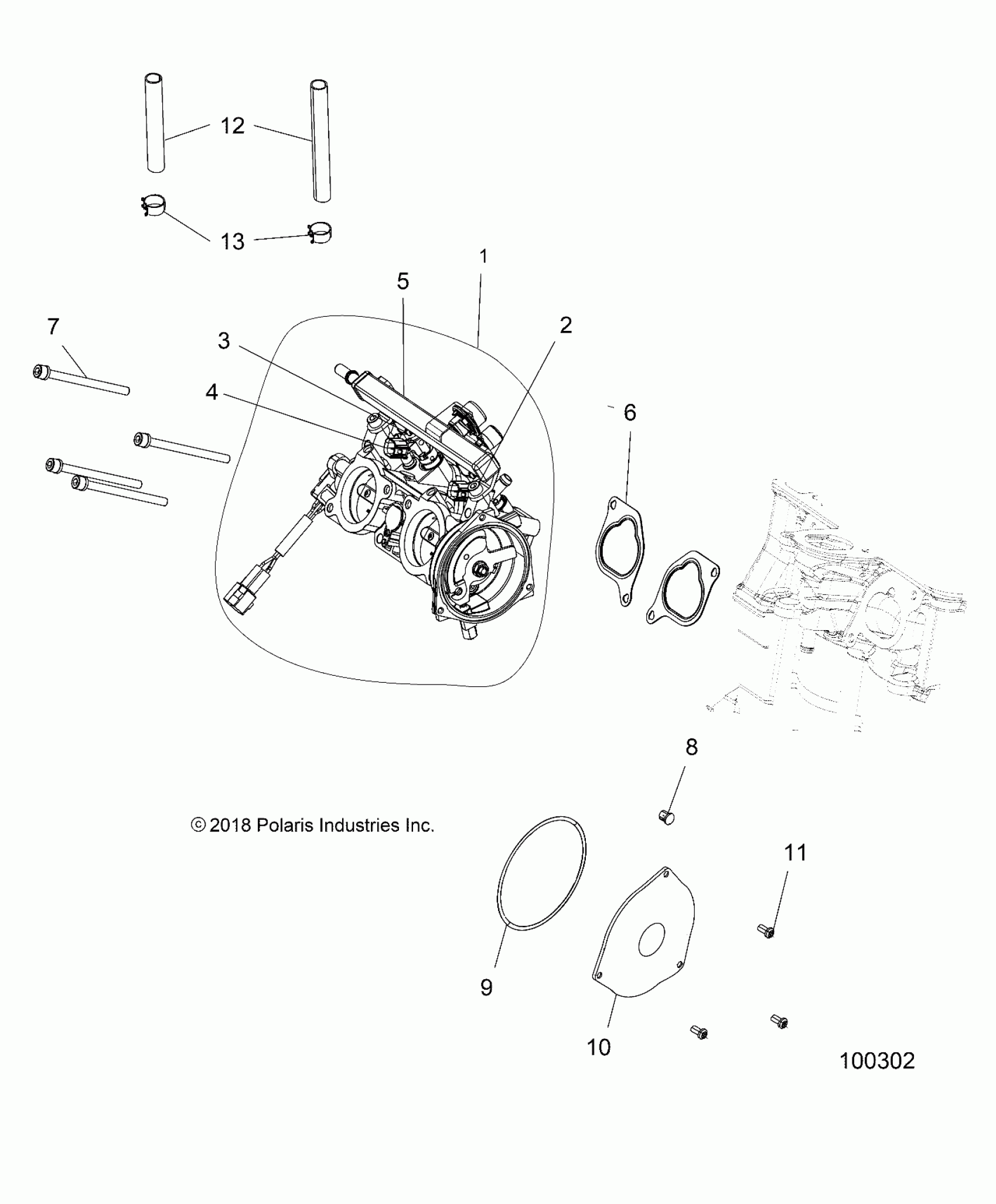

Polaris SPORTSMAN 850 SP (R13) - A18SXA85B1/B7/SXE85BM/BS/B9 ENGINE, THROTTLE BODY - A18SXA85B1/B7/SXE85BM/BS/B9 Diagram

#

Description
Price

1

K-THROTTLE BODY [INCL. THROTTLE BODY, 1-5, SENSOR, DAMPER CLAMP W/SCREW]

2208004

$710.70

2

BOLT, FUEL RAIL

3131716

$4.79

3

CLIP-INJECTOR

3131725

$10.39

4

INJECTOR-180G/MIN SINGLE CONE

1203568

$95.99

5

ASM., FUEL RAIL

-------

Unavailable

6

GASKET, ITB

5814296

$13.59

7

SCREW

5137620

$5.59

8

GUIDE, CABLE

3130543

$27.99

9

O-RING, THROTTLE CAM COVER

5413599

$11.99

10

COVER, THROTTLE CAM

5262110

$14.39

11

SCREW

7519292

$1.49

12

HOSE, FUEL

8450123-56

Unavailable

12

HOSE, FUEL

8450123-71

Unavailable

13

Clamp, Hose

7080534

$1.59
