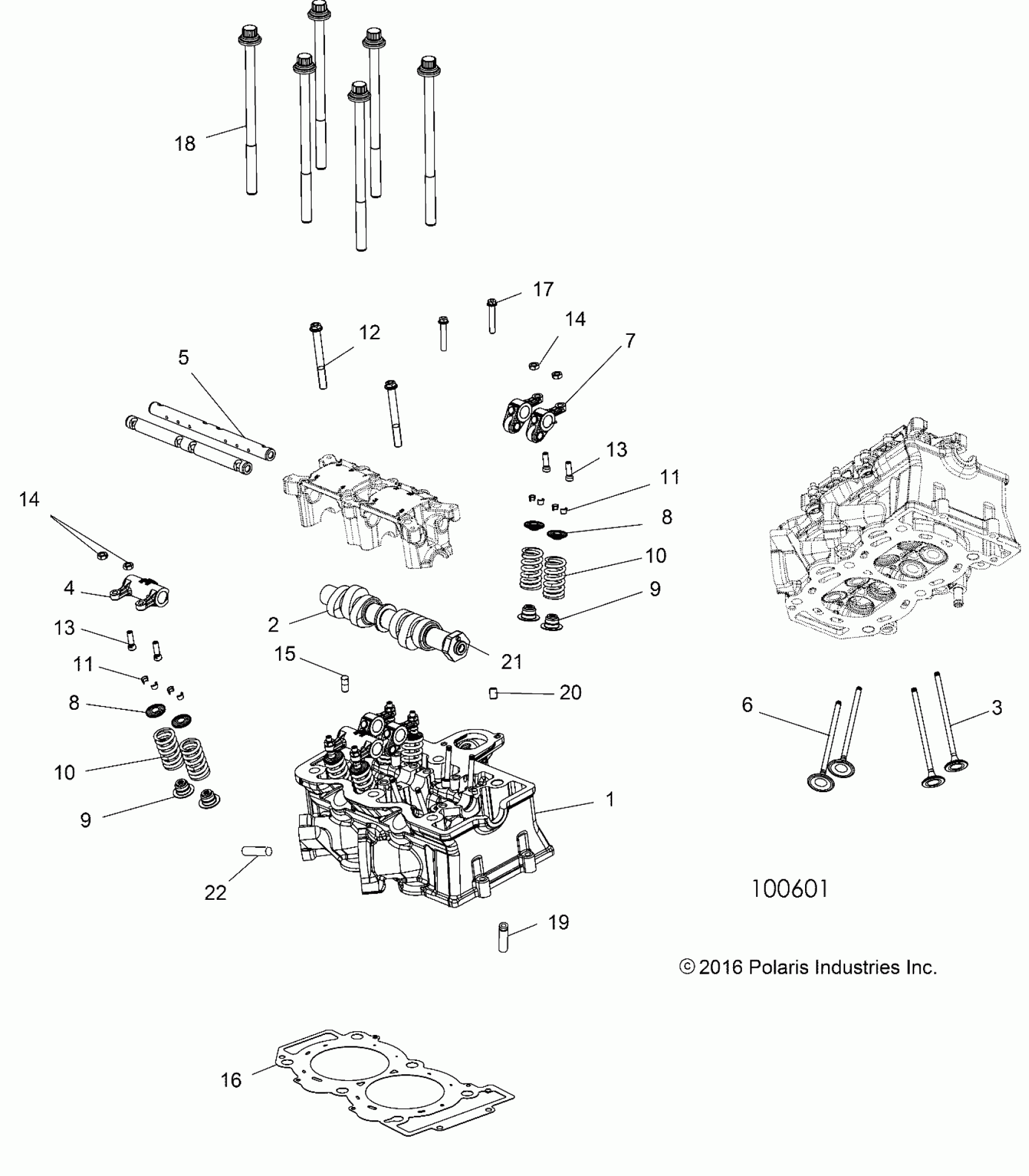

Polaris SPORTSMAN 850 SP (R13) - A18SXA85B1/B7/SXE85BM/BS/B9 ENGINE, CYLINDER HEAD, CAM and VALVES - A18SXA85B1/B7/SXE85BM/BS/B9 Diagram

#

Description
Price

1

ASM-CYLINDER HEAD 850XP [INCL. GUIDES, CAMSHAFT CARRIER, PLUG]

3022821

$1,099.99

1

PLUG

7052532

$27.78

2

ASM., CAMSHAFT [INCL. 21]

3022643

$474.43

3

VALVE, EXHAUST

3022272

$32.37

4

ASM-ROCKER ARM,EXH,IC [INCL. ARM, SCREW, NUT]

1204589

$137.60

5

ASM., SHAFT, ROCKER [TO 7/1/2018]

3022728

$74.99

5

ASM-ROCKER SHAFT [FROM 7/1/2018]

3023036

$84.99

6

VALVE, INTAKE

3022099

$56.65

7

ASM-ROCKER ARM,INT,IC [INCL. ARM, SCREW, NUT]

1204588

$119.99

8

RETAINER, VALVE

3021865

$4.76

8

RETAINER, VALVE

3021865

$4.76

9

SEAL

3610165

$7.94

9

SEAL

3610165

$7.94

10

SPRING, VALVE

7043947

$28.32

10

SPRING, VALVE

7043947

$28.32

11

KEEPER-VALVE

7081470

$4.84

11

KEEPER-VALVE

7081470

$4.84

12

SCREW

7519293

$7.14

13

SCREW, LASH ADJUSTER

5136463

$8.08

13

SCREW, LASH ADJUSTER

5136463

$8.08

14

NUT, LOCK

7547335

$3.17

14

NUT, LOCK

7547335

$3.17

15

JET-OIL,OIL PUMP

2540080

$10.46

16

GASKET, CYLINDER HEAD

5813345

$56.65

17

SCREW

7518578

$3.97

18

BOLT

7519219

$10.32

19

GUIDE, VALVE

3022348

$9.76

20

PIN-DOWEL,M6X10

5137624

$8.99

21

Pin, Dowel

----

Unavailable

22

STUD-EXH MNT M8X1.25X45

5132040

$5.56
