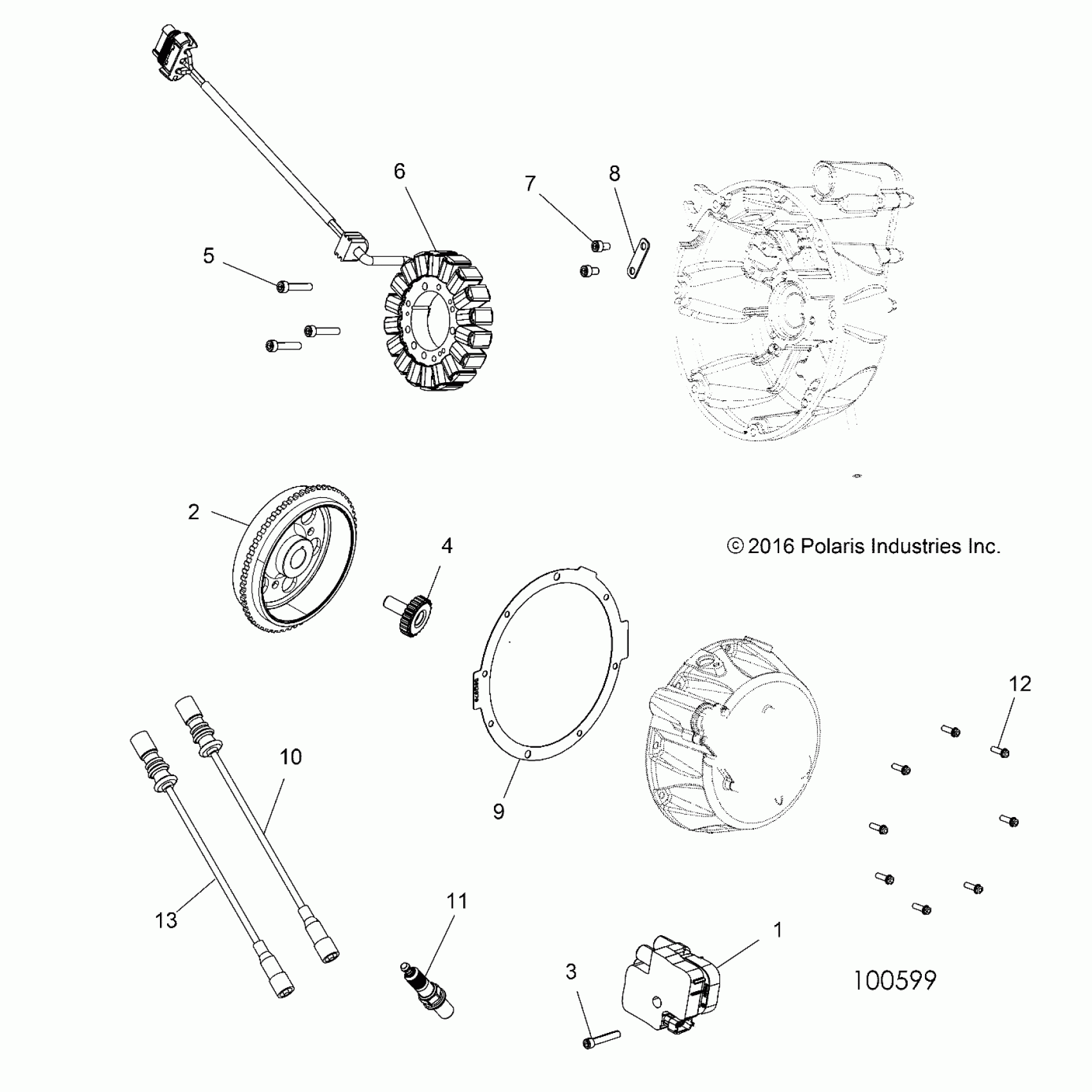

Polaris SPORTSMAN 850 SP (R13) - A18SXA85B1/B7/SXE85BM/BS/B9 ELECTRICAL, IGNITION SYSTEM - A18SXA85B1/B7/SXE85BM/BS/B9 Diagram

#

Description
Price

1

COIL-EFI

4010425

Unavailable

2

FLYWHEEL

4015703

Unavailable

3

SCREW

7518922

$3.19

4

BOLT-WATERPUMP DRIVE,LH

5140078

$31.99

5

SCREW

7518544

$5.59

6

STATOR,560W

4014406

$467.99

7

SCREW

7518765

$3.99

8

RETAINER-STATOR WIRE

5261146

$5.59

9

GASKET, STATOR COVER

5813680

$39.99

10

WIRE, SPARK PLUG, PTO

4013328

$55.99

11

PLUG, SPARK

3022438

$6.39

12

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

13

WIRE, SPARK PLUG, MAG

4013327

$47.99
