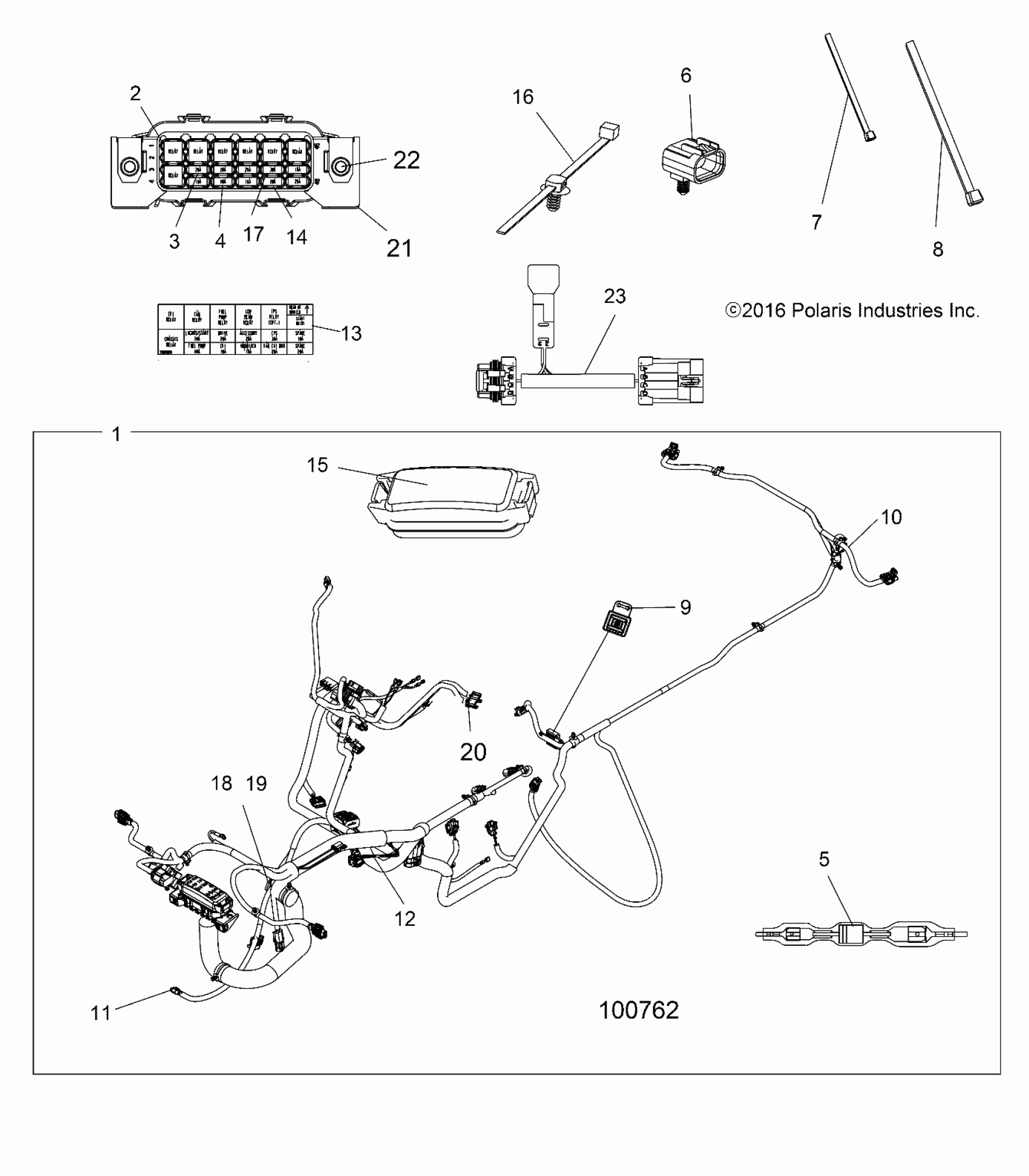

Polaris SPORTSMAN 850 SP (R13) - A17SXA85A1/A7/SXE85AB/AM/AS/A9 ELECTRICAL, HARNESS - A17SXA85A1/A7/SXE85AB/AM/AS/A9 (100762) Diagram

#

Description
Price

1

HARNESS-MAIN,SPXP NON-ETC [TO 9/26/2016]

2413428

$1,199.99

1

HARNESS-MAIN,SPXP NON-ETC [FROM 9/26/2016]

2413823

$1,149.99

1

KIT, HARNESS, ENGINE TEMP

2878496

$79.99

1

KIT, HARNESS, TPS

2878498

$117.37

2

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

3

FUSE-PARK,20 AMP

2434017

$8.08

4

FUSE-IGNITION,10 AMP

2434016

$5.65

5

DIODE, 6AMP

2411035

$56.65

6

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

9

MODULE, RESISTOR

4014055

$161.49

10

COVER, TAILLIGHT, LED W/CLIP

4016259

$8.70

11

CAP, WINCH CONTACTOR

4014891

$9.76

12

Kit, Fusible Link, .8 MM

2202607

$39.68

12

Kit, Fusible Link, 1.0 mm

2202670

$44.99

13

LABEL, FUSE BOX

7185159

Unavailable

14

BREAKER-CIRCUIT,20 AMP

4011372

$44.51

15

COVER, FUSEBOX

4015011

$60.70

15

SEAL, FUSE CENTER

5415598

$8.73

16

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

17

FUSE-MAIN,30 AMP

2434015

$8.87

18

CONNECTOR, CAP, EPS POWER [A1][A7]

4014236

$10.46

19

CONNECTOR, CAP, EPS SIGNAL [A1][A7]

4014235

$8.71

20

CAP, WINCH SWITCH

4014890

$10.65

21

BASE, FUSEBOX

4015457

$214.99

22

SCREW

7518914

$3.17

23

HARNESS-JUMPER,TAILLIGHT [TO 9/26/2016]

2413796

$49.99
