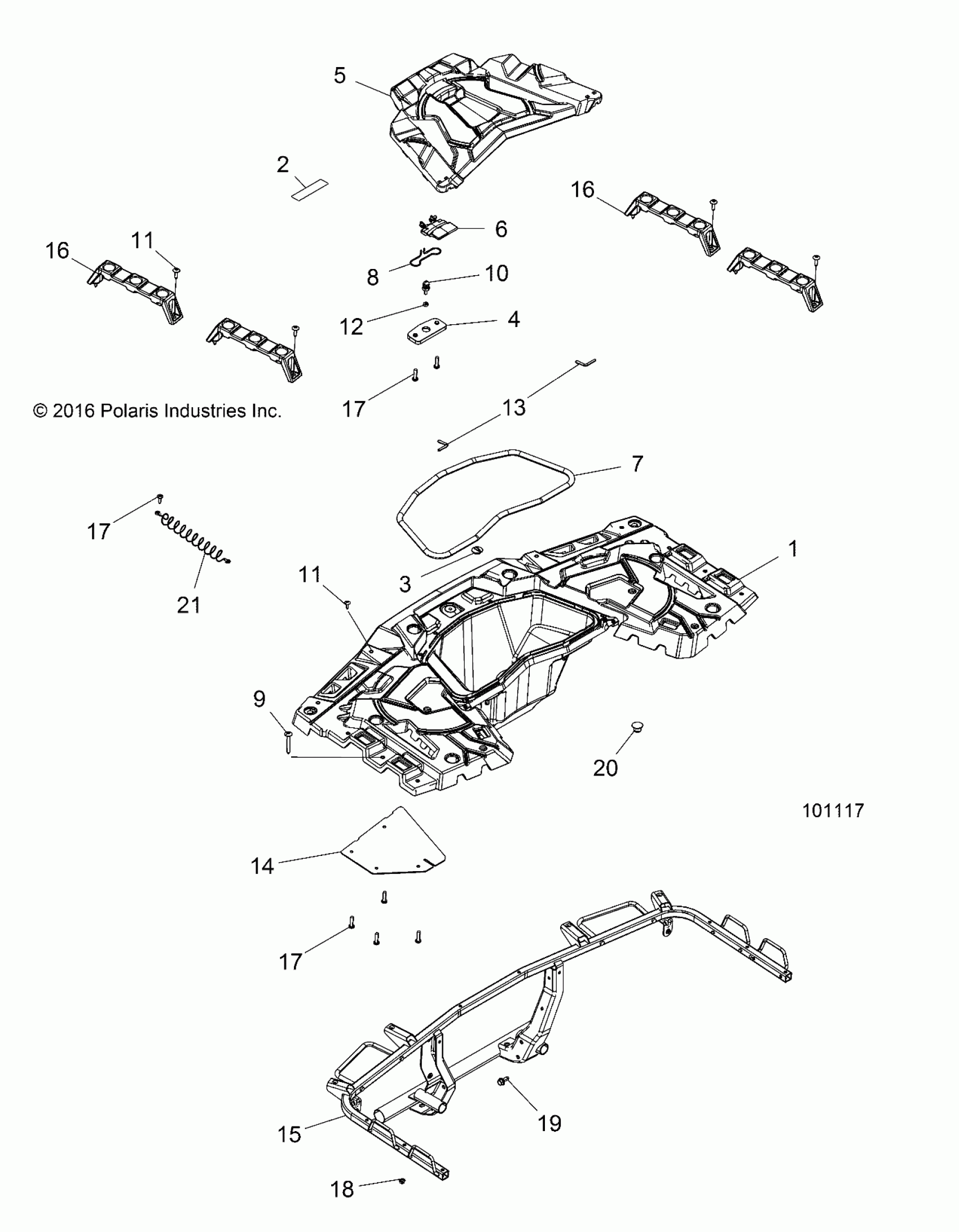

Polaris SPORTSMAN 850 SP (R13) - A17SXA85A1/A7/SXE85AB/AM/AS/A9 BODY, REAR RACK - A17SXA85A1/A7/SXE85AB/AM/AS/A9 (101117) Diagram

ASM-RACK,REAR,BLK [INCL. RACK, STORAGE, & CABLES]

2636153-070

$230.16

RACK-REAR,BLK

5452936-070

$230.16

DECAL-WARN,FR&RR RACK,120/240

7185251

Unavailable

PLUG-COMPARTMENT

5412981

$3.79

LATCH-COVER PLATE,BLK

5450510-070

$5.65

COVER-STORAGE,REAR,BLK

5452955-070

$53.24

LATCH-REAR STORAGE

5452964

$16.14

SEAL-BOX,REAR

5522202

$28.32

SPRING-LATCH,SEAT

7081466

$39.99

SCR-M6X1X60,TX TR,BLK

7518882

$3.97

PLUNGER-LATCH,6MM

7520527

$13.49

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

PIN-HINGE,5MM

7662307

$10.32

SHIELD-HEAT,REAR CAB

5262917

$20.22

WELD-RR RACK,SUPPORT,SPMN,BLK

1022355-067

$214.99

EXTENDER-RACK,M.BLK

5633722-458

$49.99

EXTENDER-RACK,M.BLK

5633722-458

$49.99

SCR-TXPH-#14X3/4 HI/LO CLR

7519290

$3.97

SCR-TXPH-#14X3/4 HI/LO CLR

7519290

$3.97

SCR-TXPH-#14X3/4 HI/LO CLR

7519290

$3.97

NUT-M6 FLANGE,NYLOC

7547274

$1.19

BOLT-M8X1.25X20,HXFLG

7518555

$2.38

PLUG-END CAP,1.25" DIA,RIBBED

5450305

$4.84

CABLE-COVER,BOX,PRE-COIL [TO 5/8/2023]

7081741

$36.41

CABLE-COVER,BOX,PRE-COIL [FRM 5/8/2023]

7083055

$36.41
