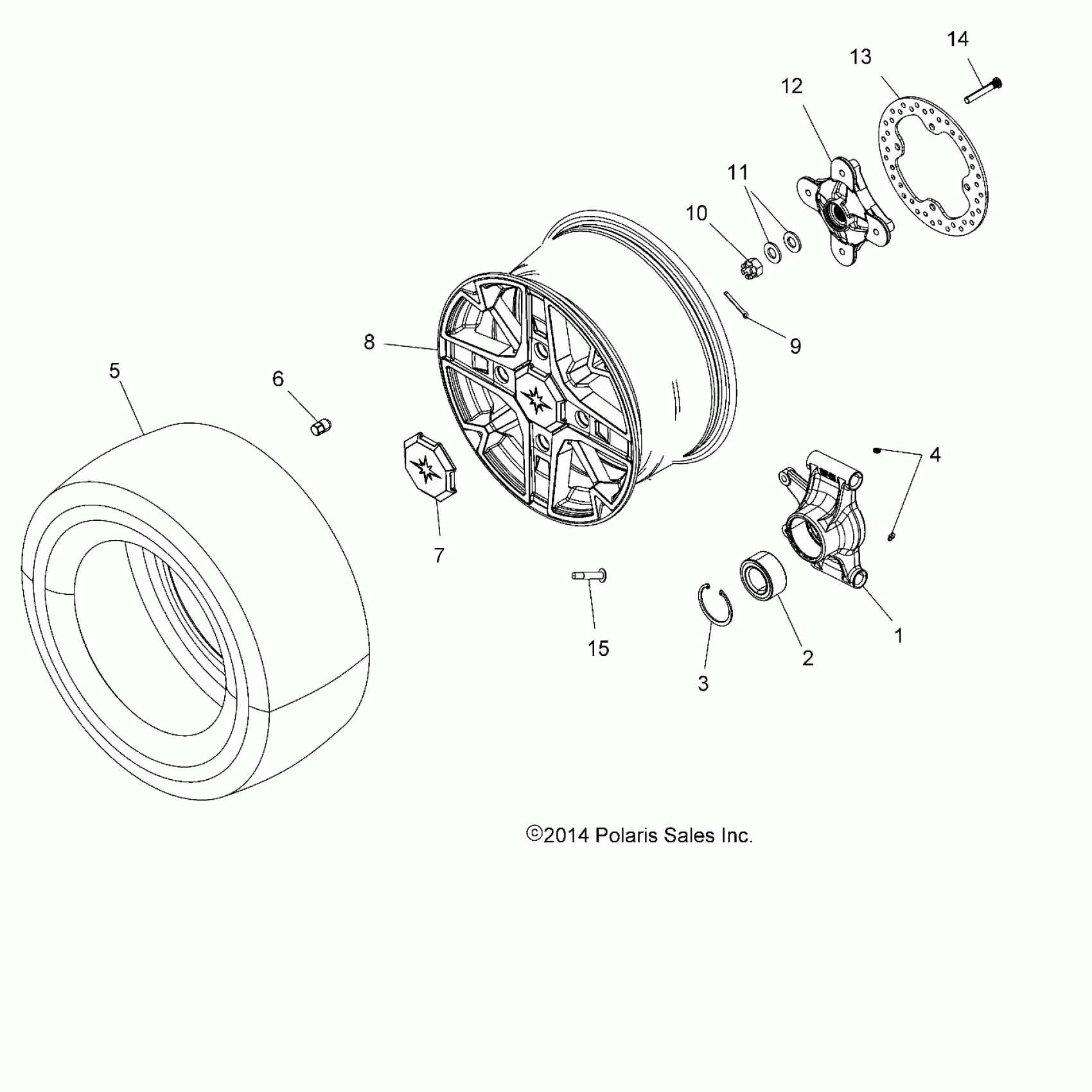

Polaris SPORTSMAN 850 SP (R08) - A16SXE85AS/AM/AB/A85A1/A2/A9 WHEELS, REAR and HUB - A16SXE85AS/AM/AB (49ATVWHEELRR15850SP) Diagram

#

Description
Price

1

CARRIER, BEARING, RH

5136690

$85.49

1

CARRIER, BEARING, LH

5136689

$85.49

2

BEARING, BALL, SEALED

3514699

$39.68

3

RING, RETAINING

7710440

$10.32

4

FITTING-LUBRICATION 1/4-28

7080424

$4.76

5

TIRE-26X10-14

5415601

$157.49

6

NUT, WHEEL

7547361

$2.38

7

CAP, RIM

1521999

$39.99

8

RIM, REAR, CAST, BLACK [INCL. 7]

1522101-067

$227.99

9

PIN, COTTER

7661404

$4.76

10

NUT, CASTLE

7547406

$4.76

11

WASHER, CONE

7555796

$7.94

12

HUB, WHEEL

5136946

$97.13

13

DISC, BRAKE

5250205

$76.89

14

STUD, WHEEL

7518671

$1.59

15

VALVE-RIM

1525017

$6.46
