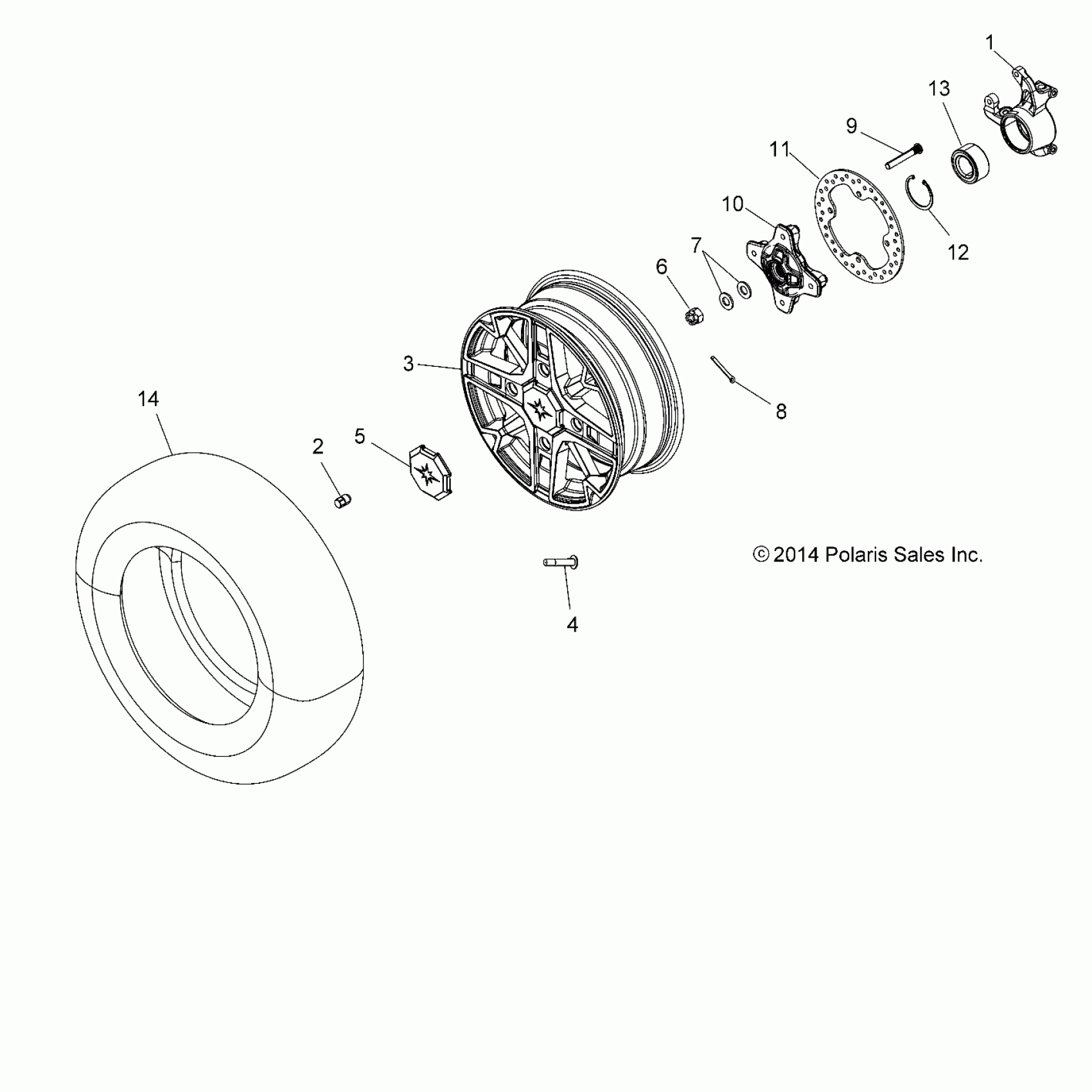

Polaris SPORTSMAN 850 SP (R08) - A16SXE85AS/AM/AB/A85A1/A2/A9 WHEELS, FRONT and HUB - A16SXE85AS/AM/AB (49ATVWHEELFRT15850SP) Diagram

#

Description
Price

1

ASM., STEERING KNUCKLE, RH [INCL. 12,13]

1822946

Unavailable

1

ASM., STEERING KNUCKLE, LH [INCL. 12,13]

1822945

Unavailable

1

KNUCKLE, LH

5136733

Unavailable

1

KNUCKLE, RH

5136734

Unavailable

2

NUT, WHEEL

7547361

$2.39

3

RIM, FRONT, CAST, BLACK [INCL. 5]

1522100-067

$173.19

4

VALVE-RIM

1525017

$5.59

5

CAP, RIM

1521999

Unavailable

6

NUT, CASTLE

7547406

$4.79

7

WASHER, CONE

7555796

$7.99

8

PIN, COTTER

7661404

$4.79

9

STUD, WHEEL

7518671

$1.59

10

HUB, WHEEL

5135499

Unavailable

11

DISC, BRAKE

5250205

$75.99

12

RING, RETAINING

7710440

$10.39

13

BEARING, BALL, SEALED

3514699

$39.99

14

TIRE-26X8-14

5415600

$145.19
