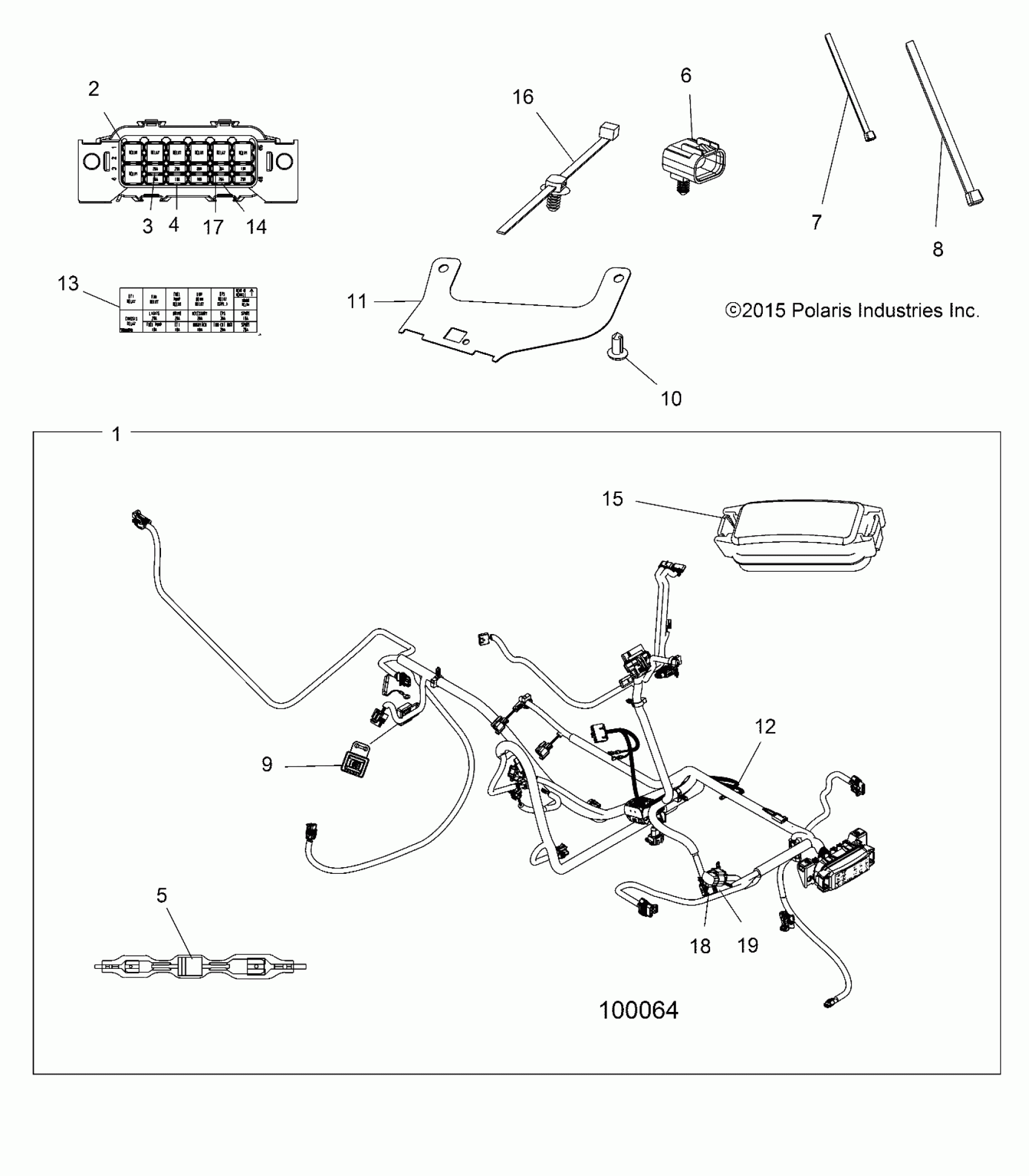

Polaris SPORTSMAN 850 SP (R08) - A16SXE85AS/AM/AB/A85A1/A2/A9 ELECTRICAL, HARNESS - A16SXE85AS/AM/AB/A85A1/A2/A9 (100064) Diagram

#

Description
Price

1

HARNESS-MAIN,850 EPS 1-UP/TOUR [INCL. 1-6,9,12-15, COVER]

2412996

$923.99

1

KIT, HARNESS, ENGINE TEMP

2878496

$59.99

1

KIT, HARNESS, TPS

2878498

$113.32

2

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

3

FUSE-PARK,20 AMP

2434017

Unavailable

4

FUSE-IGNITION,10 AMP

2434016

$4.79

5

DIODE, 6AMP

2411035

$51.99

6

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

9

MODULE, RESISTOR

4014055

Unavailable

10

CLIP, PUSH ON

7670125

$7.99

11

BRACKET, FUSE BLOCK

5257893

$10.39

11

SCREW

7518914

$3.19

12

Kit, Fusible Link, .8 MM

2202607

$39.99

12

Kit, Fusible Link, 1.0 mm

2202670

$35.99

13

LABEL, FUSE BOX

7180678

Unavailable

14

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

15

COVER, FUSEBOX

4015011

$55.99

15

SEAL, FUSE CENTER

5415598

$8.79

16

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

17

FUSE-MAIN,30 AMP

2434015

$7.19

18

CONNECTOR, CAP, EPS POWER [A1][A2]

4014236

$9.59

19

CONNECTOR, CAP, EPS SIGNAL [A1][A2]

4014235

$7.99
