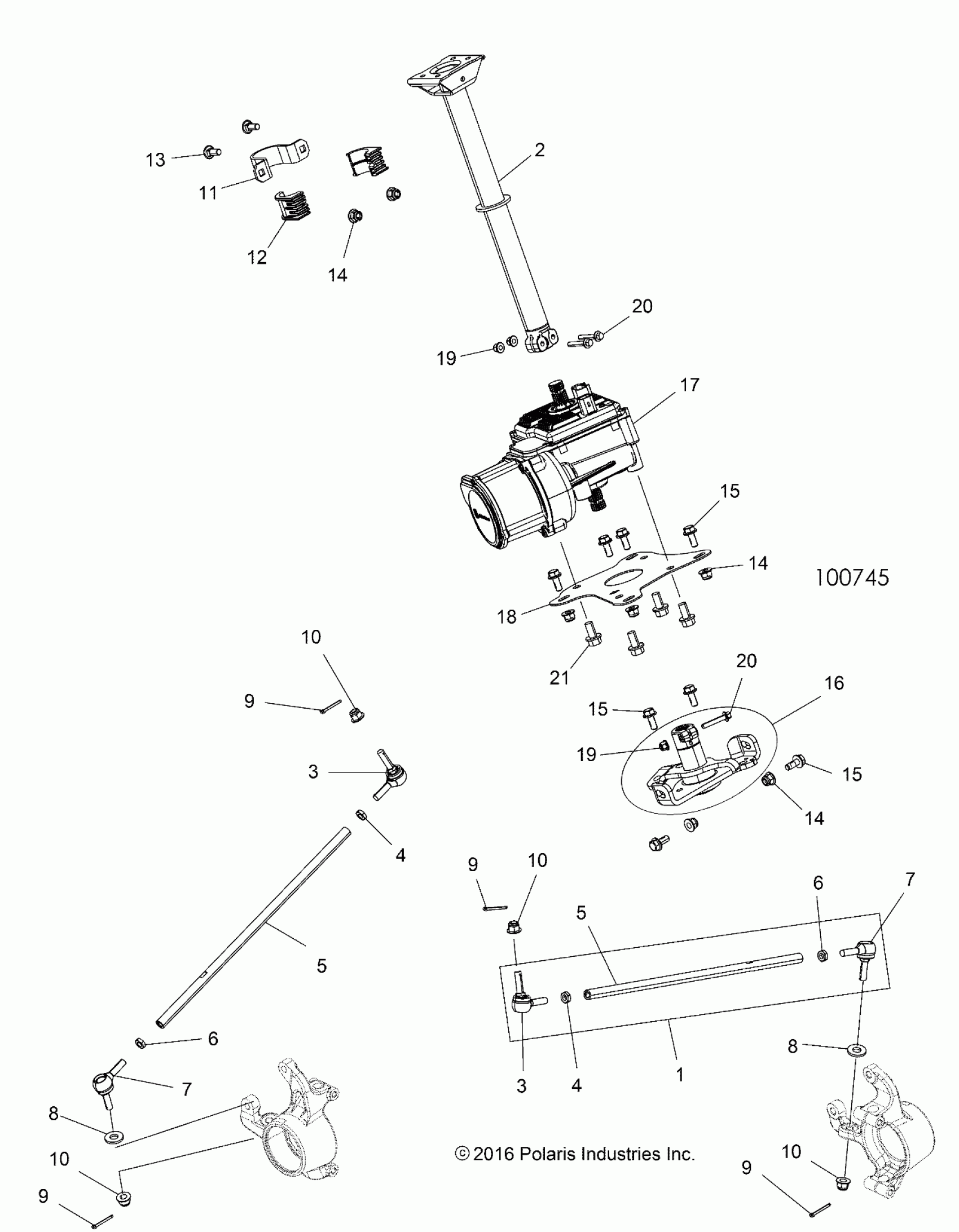

Polaris SPORTSMAN 850 SP 48 (R08) - A19SXA85B1/B4/SXE85BC/B9/SXZ85BJ STEERING, STEERING POST ASM. - A19SXE85BC/B9/ZBJ (100745) Diagram

#

Description
Price

1

ASM., TIE ROD [INCL. 3-7][3-7 AVAILABLE ONLY IN THIS ASSEMBLY]

1824007

$123.49

2

POST, STEERING, UPPER, BLACK

1823781-329

Unavailable

3

Rod End, RH

----

Unavailable

3

Rod End, RH

----

Unavailable

4

NUT, JAM, RH

----

Unavailable

4

NUT, JAM, RH

----

Unavailable

5

Tie Rod

----

Unavailable

5

Tie Rod

----

Unavailable

5

Tie Rod

----

Unavailable

6

NUT, JAM, LH

----

Unavailable

7

Rod End, LH

----

Unavailable

7

Rod End, LH

----

Unavailable

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

9

Pin, Cotter

7661203

$1.19

9

Pin, Cotter

7661203

$1.19

9

Pin, Cotter

7661203

$1.19

9

Pin, Cotter

7661203

$1.19

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

10

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

11

BRKT-BUSHING STRAP

5262582

$28.32

12

BUSHING-SWAY BAR,1.25

5450101

$7.14

13

BOLT, CARRIAGE

7518479

$3.97

14

Nut, Flange

7547317

$2.38

14

Nut, Flange

7547317

$2.38

14

Nut, Flange

7547317

$2.38

15

Bolt, Flange

7518450

$1.59

15

Bolt, Flange

7518450

$1.59

15

Bolt, Flange

7518450

$1.59

16

KIT, POST, STEERING, LOWER, BOLTED [INCL. POST AND HARDWARE]

2205364

$161.89

17

ASM-POWER STEERING,ATV,H-O

2414461

$2,599.99

18

BRACKET, POWER STEERING, BLACK

5254633-329

$40.46

19

NUT-M6 FLANGE,NYLOC

7547274

$1.19

19

NUT-M6 FLANGE,NYLOC

7547274

$1.19

20

SCREW, FLANGE

7516827

$6.35

20

SCREW, FLANGE

7516827

$6.35

21

BOLT, FLANGE

7518558

$3.97
