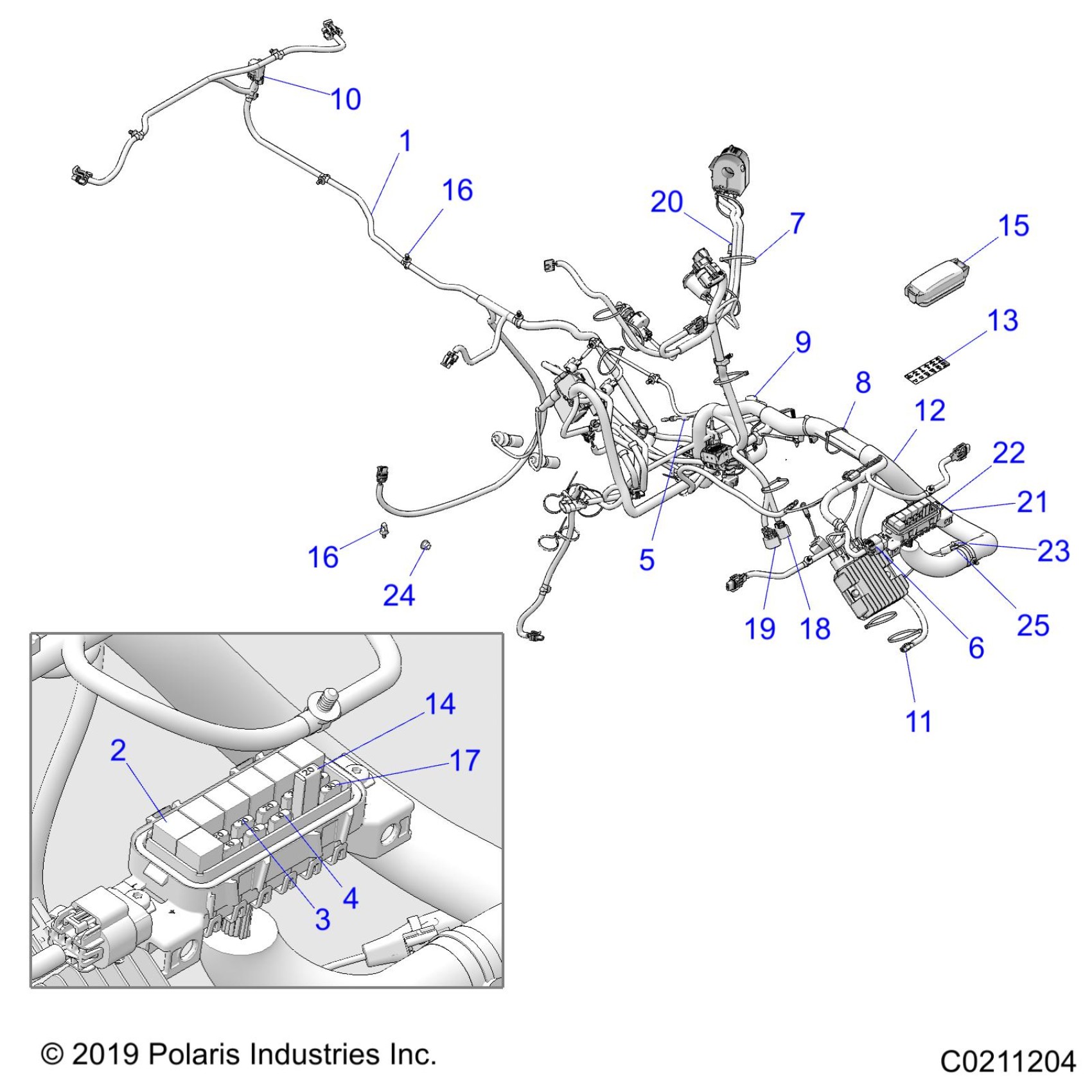

Polaris SPORTSMAN 850/LE 48" - A20SXA85A1/A7/CA1/A7/EA9/AF/AP/CA9/CAF/CAP/VAP ELECTRICAL, HARNESS - A20SXA85A1/A7/CA1/CA7/E85A9/AF/AP/CA9/CAF/CAP/V85AP/CAP (C0211204) Diagram

#

Description
Price

1

HARNESS-MAIN,SPXP NON-ETC

2415156

$998.79

2

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

3

FUSE-PARK,20 AMP

2434017

Unavailable

4

FUSE-IGNITION,10 AMP

2434016

$4.79

5

DIODE, 6AMP

2411035

$51.99

6

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

9

DIODE - 6 AMP

2410000

$35.99

10

COVER, TAILLIGHT, LED W/CLIP

4016259

$6.39

11

CAP, WINCH CONTACTOR

4014891

$7.99

12

Kit, Fusible Link, .8 MM

2202607

$39.99

12

Kit, Fusible Link, 1.0 mm

2202670

$35.99

13

LABEL, FUSE BOX

7192266

Unavailable

14

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

15

COVER, FUSEBOX

-------

Unavailable

15

COVER, FUSEBOX

-------

Unavailable

16

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

17

FUSE-MAIN,30 AMP

2434015

$7.19

18

CONNECTOR-CAP,EPS SIGNAL [A85A1][A85A7][A8CA7][A8CA1]

4014235

$7.99

19

CONNECTOR-CAP,EPS POWER [A85A1][A85A7][A8CA7][A8CA1]

4014236

$9.59

20

CAP, WINCH SWITCH

4014890

$8.79

21

BASE, FUSEBOX

-------

Unavailable

22

SCREW

7518914

$3.19

23

PLUG-HARNESS BATTERY CHARGE

2415060

$27.99

24

NUT-M8X1.25,HXFLG,NYLON INS

7547317

Unavailable

25

CLIP-ROUTING

7082073

$27.99
