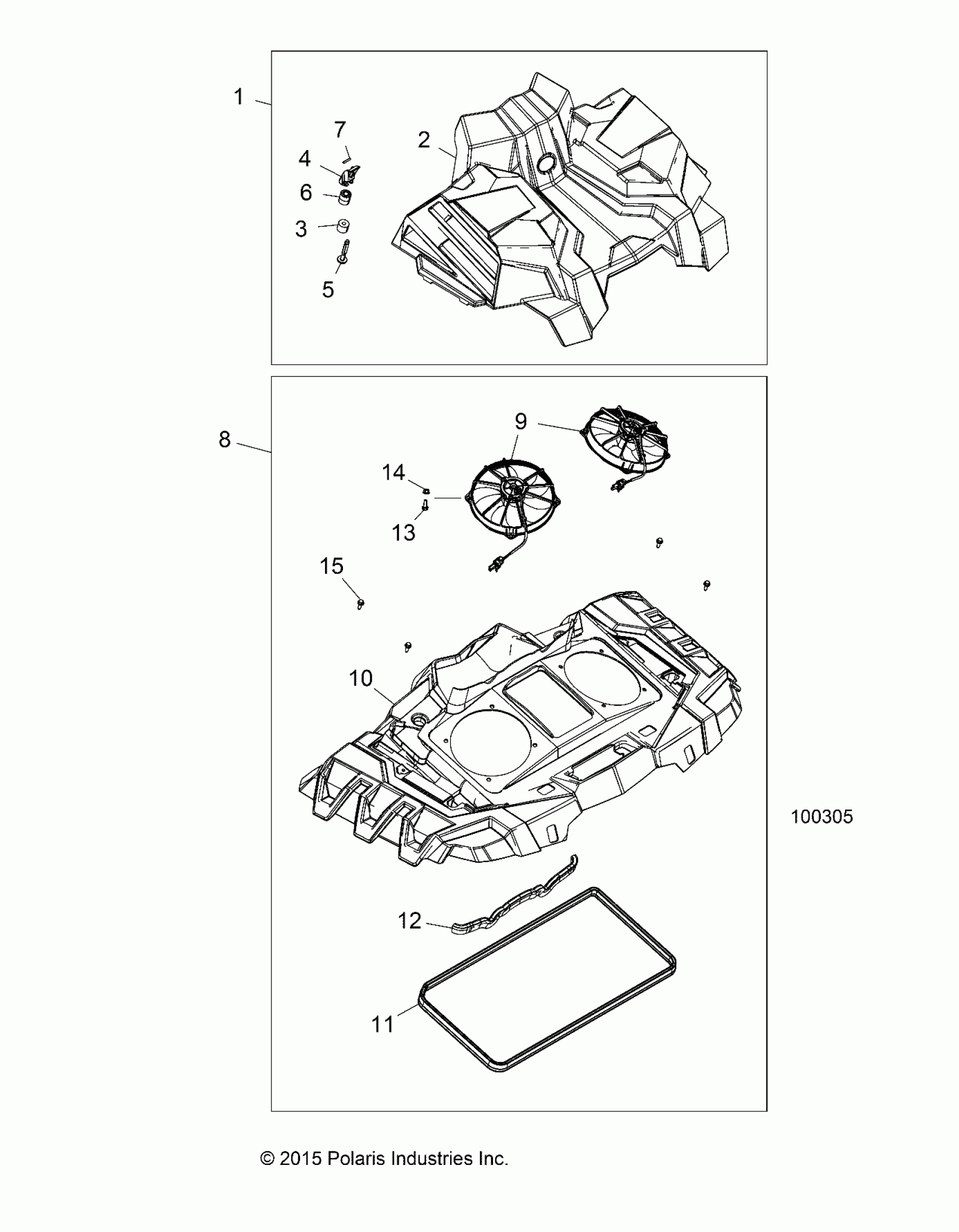

Polaris SPORTSMAN 850 HIGH LIFTER (R15) - A16SXN85A3 ENGINE, COOLING SYSTEM, FANS AND SHROUDS - A16SXN85A3 Diagram

#

Description

Price

1

ASM-RADIATOR SHROUD,ORANGE MAD

-------

Unavailable

2

SHROUD-RADIATOR,CENTER,ORG MAD

5451985-593

$163.99

3

BUSHING-RUBBER,LNR ANCHOR

5413887

$3.19

4

HANDLE-LNR ANCHOR,BLK

5438117

$4.84

5

SHAFT-LNR ANCHOR,BLK

5438118

Unavailable

6

SPACER-LNR ANCHOR

5521796

$3.19

7

PIN-DOWEL,5/32"X7/8",ZPC

7661970

$1.59

8

ASM-SHROUD,RADIATOR,LOWER

-------

Unavailable

9

FAN-RADIATOR OUTLET

2413007

$187.99

10

SHROUD-RADIATOR,LOWER,BLK

5451986-070

$135.99

11

SEAL-RADIATOR,170CM

5814210-170

$59.99

12

SEAL-RADIATOR,44CM

5814210-44

$27.99

13

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

14

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

15

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49
