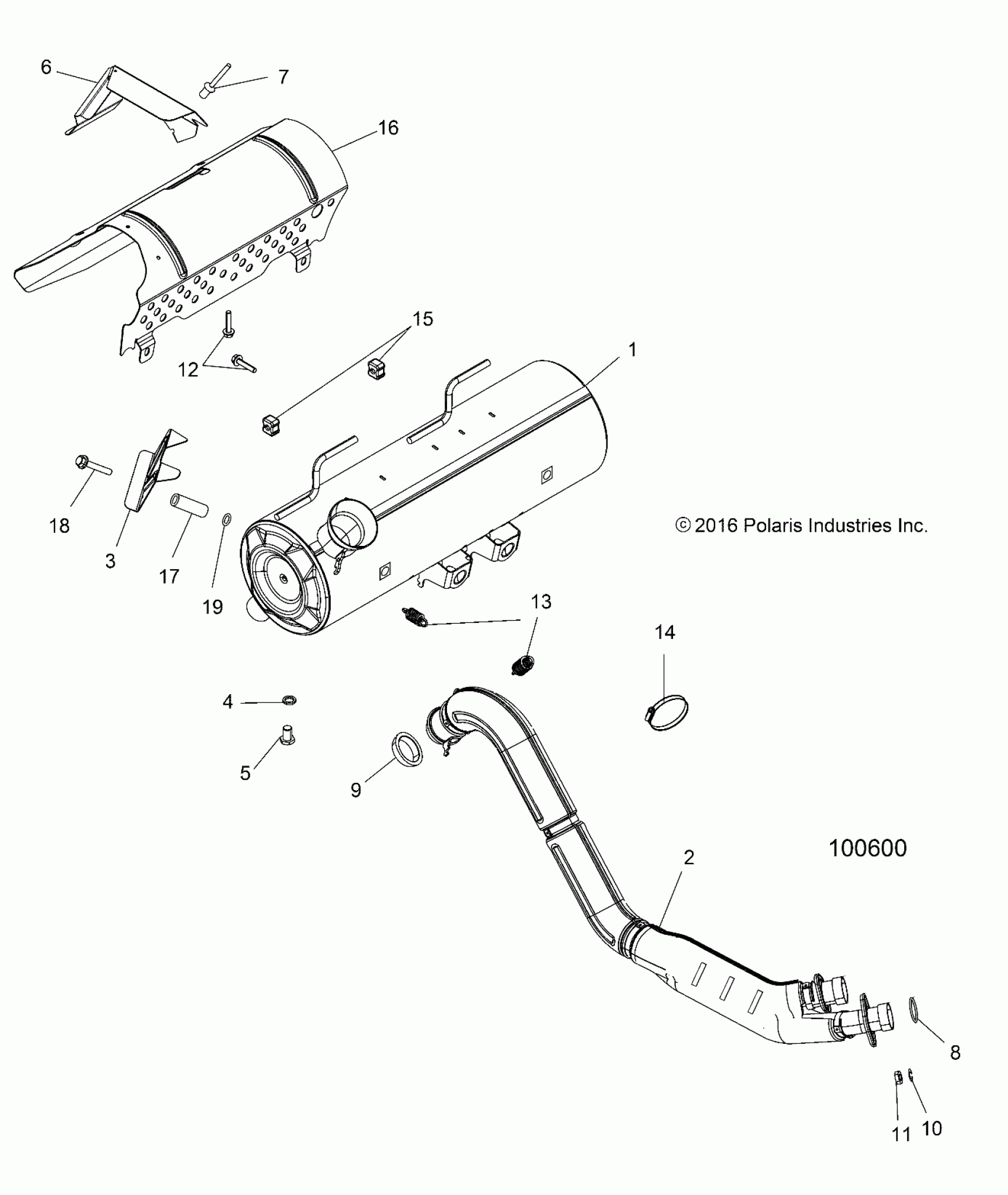

Polaris SPORTSMAN 850 HIGH LIFTER (R11) - A18SXN85A8 ENGINE, EXHAUST - A18SXN85A8 Diagram

#

Description
Price

1

WELD-EXHAUST SILENCER,BLK [INCL. 4,5]

1262970-489

$483.99

2

ASM-EXHAUST PIPE,TWIN [INCL. PIPE, SHIELDS]

1263071

$375.99

3

Shield, Exhaust Spring

5253865

$19.99

4

WASHER

7556230

$1.49

5

BOLT

7512666

$2.39

6

SHIELD, EXHAUST

5258649

$47.99

7

RIVET-3/16-.090-.290

7661637

$1.49

8

GASKET, EXHAUST

5255577

$8.79

9

SEAL, EXHAUST

3610179

$15.99

10

Washer, Lock

7556111

$1.59

11

NUT

7547076

$2.60

12

SCREW, FLANGE

7518513

$4.79

13

SPRING-EXHAUST

7041789

$7.99

14

CLAMP, WORM DRIVE

7080809

$9.59

15

GROMMET, SILENCER MOUNT

5413383

$4.79

16

Shield, Box, Storage

5252266

$95.99

17

Spacer, Exhaust Shield Spring

5336190

$3.99

18

SCREW

7519090

$3.99

19

RETAINER, BOLT

7670154

$1.49
