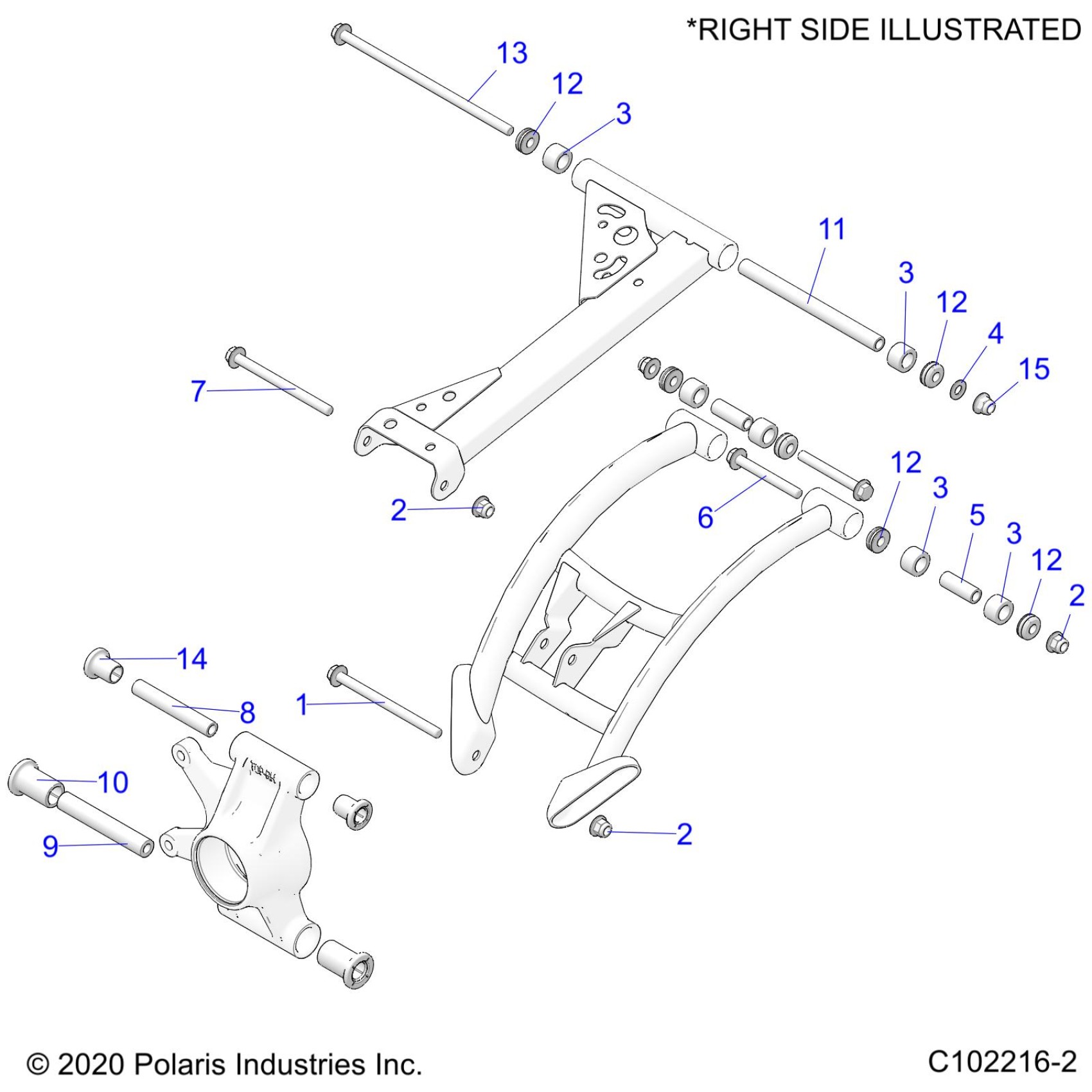

Polaris SPORTSMAN 850 HIGH LIFTER (R05) - A20SXN85A8/CA8 SUSPENSION, REAR CONTROL ARMS, MOUNTING - A20SXN85A8/CA8 (C102216-2) Diagram

SCR-HXFL-M10X1.5X140 8.8 ZY3

7518467

$5.59

NUT-M10X1.5,HXFLG, NYLON INS

7547313

$1.49

NUT-M10X1.5,HXFLG, NYLON INS

7547313

$1.49

NUT-M10X1.5,HXFLG, NYLON INS

7547313

$1.49

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

SCR-HXFL-M10X1.5X85 8.8 ZY3

7518466

$4.79

BOLT, FLANGE

7518675

$5.59

SHAFT, PIVOT

5137590

$8.79

SHAFT, A-ARM, LOWER CONTROL ARM

5136473

Unavailable

BUSHING, LOWER CONTROL ARM

5437651

$6.39

SHAFT-PIVOT,190MM,M10

5141510

$34.99

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

SCR-HXFL-M10X1.25X235 10.9 ZOD

7519086

$27.99

BUSHING-STANDARD,ORV

5439874

$2.39

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59
