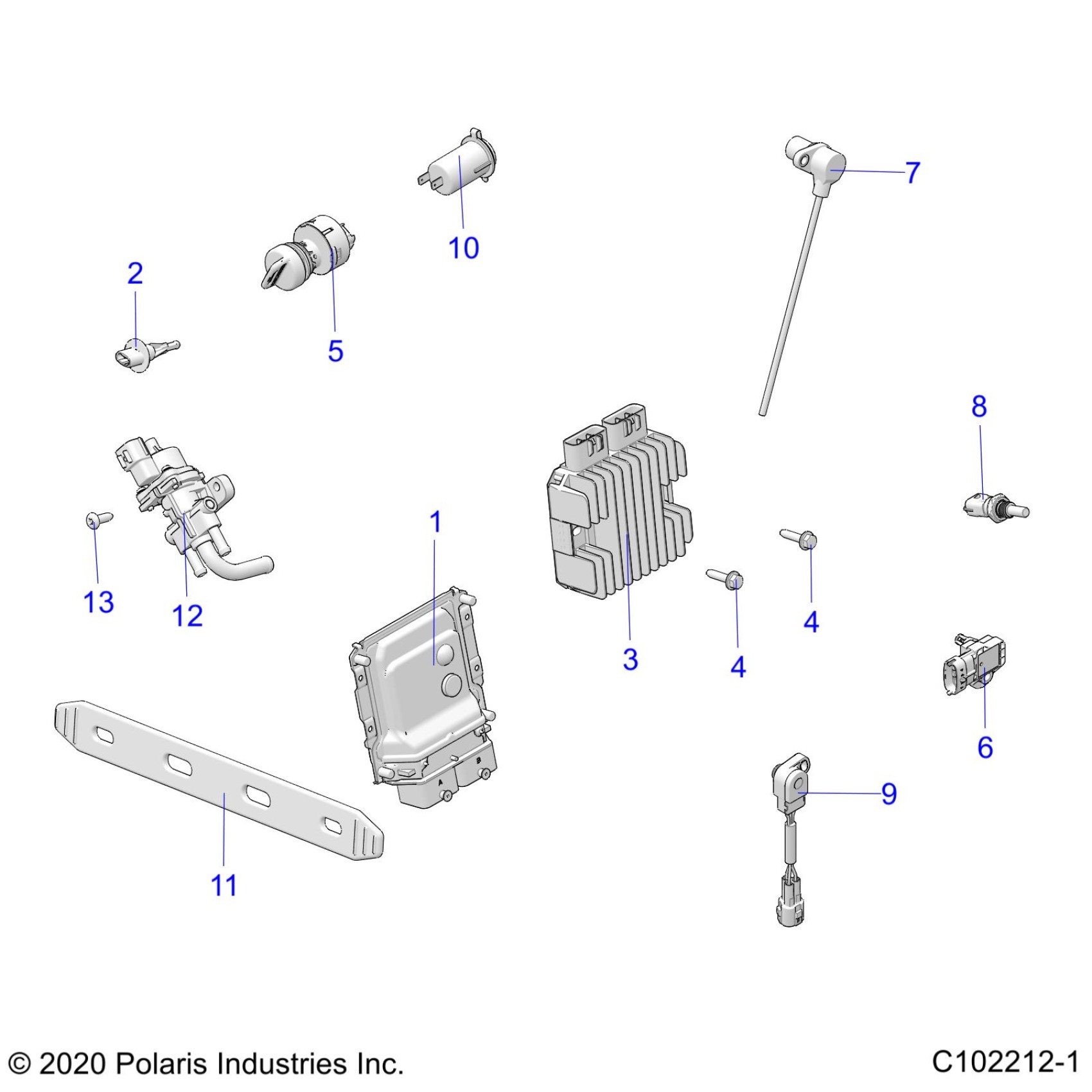

Polaris SPORTSMAN 850 HIGH LIFTER (R05) - A20SXN85A8/CA8 ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A20SXN85A8/CA8 (C102212-1) Diagram

ECU, BASE, M17

4012838

$440.69

Sensor, Air Temperature

2410687

$143.99

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$123.99

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

KEY SWITCH KEY COVER

5433534

$12.35

SWITCH, KEY, 3 POSITION, SEALED

4015033

Unavailable

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

SENSOR-TMAP DSS3-TF

2411528

$93.08

SCR-SENSOR TMAP [NOT ILLUSTRATED][USED WITH T-MAP]

3131726

Unavailable

Sensor, Crank Position

2411589

$79.99

SCREW-HXFL-M6X1.0X16 8.8 ZY3 [NOT ILLUSTRATED][USED WITH CRANK POSSITION SENSOR]

7518548

$1.59

SENSOR-THERMISTER

4010644

$87.13

SENSOR, THROTTLE POSITION

2412634

$243.99

O-RING [NOT ILLUSTRATED][USED WITH TPS]

3131729

$11.99

Screw [MAG Side] [NOT ILLUSTRATED][USED WITH TPS]

3131010

$4.79

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

STRAP, ECU

5414193

$27.99

VALVE, IAC

4013313

$175.99

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19
