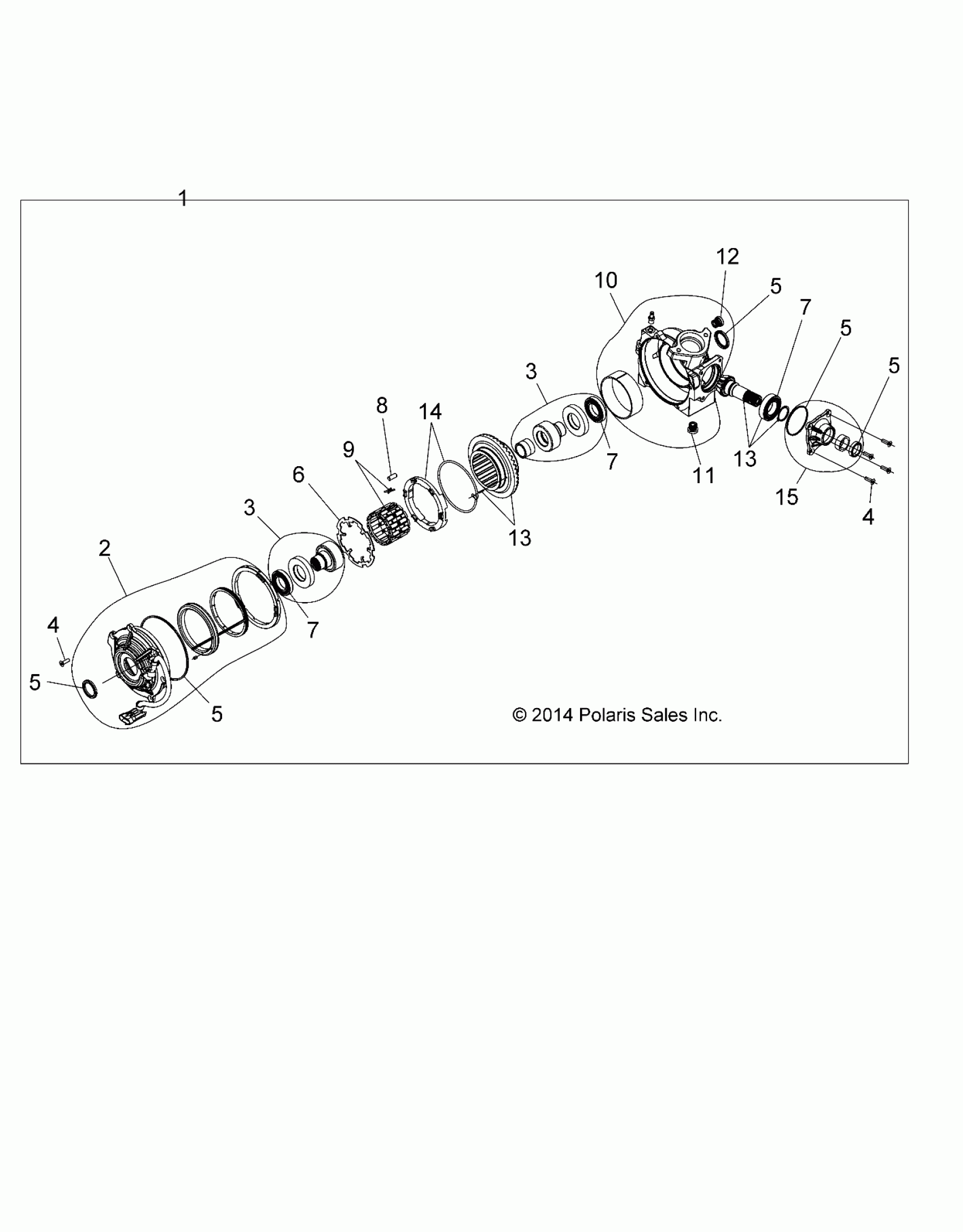

Polaris SPORTSMAN 850 HIGH LIFTER (R05) - A20SXN85A8/CA8 DRIVE TRAIN, FRONT GEARCASE INTERNALS - A20SXN85A8/CA8 (1333391) Diagram

ASM-GEARCASE,FRONT [INCL. 1-15]

1334066

$1,904.74

ASSY, COVR OUTLET [INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING]

3235634

$639.99

KIT, HUB ASSEMBLY [INCL. BEARINGS, BUSHING, HUBS, SPACERS]

3235911

$519.99

KIT, HUB ASSEMBLY [INCL. BEARINGS, BUSHING, HUBS, SPACERS]

3235911

$519.99

KIT, FASTENERS [INCL. QTY 10 SCREWS]

3235433

$39.27

KIT, FASTENERS [INCL. QTY 10 SCREWS]

3235433

$39.27

COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

3235434

$76.89

COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

3235434

$76.89

COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

3235434

$76.89

COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

3235434

$76.89

COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

3235434

$76.89

PLATE-4WD ARMATURE

3236048

$113.32

BEARINGS [INCL. ALL BEARINGS]

3236306

$104.99

BEARINGS [INCL. ALL BEARINGS]

3236306

$104.99

BEARINGS [INCL. ALL BEARINGS]

3236306

$104.99

K-CLUTCH ROLLS [INCL. SET OF 24]

3235624

$6.46

ASM-ROLL CAGE [INCL. CAGE, QTY 24 CLIPS]

3235625

$174.03

ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]

3235436

$899.99

KIT-PLUG,DRAIN

2203738

$42.74

KIT-PLUG,FILL

2203739

$44.51

KIT, GEAR HOUSING & PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]

3235636

$859.99

KIT, GEAR HOUSING & PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]

3235636

$859.99

KIT-TORSION,SPRING AND RETAINER

3235712

$43.56

ASM-INPUT,COVER [INCL. O-RING, COVER, BUSHING, SEAL]

3236143

$123.49
