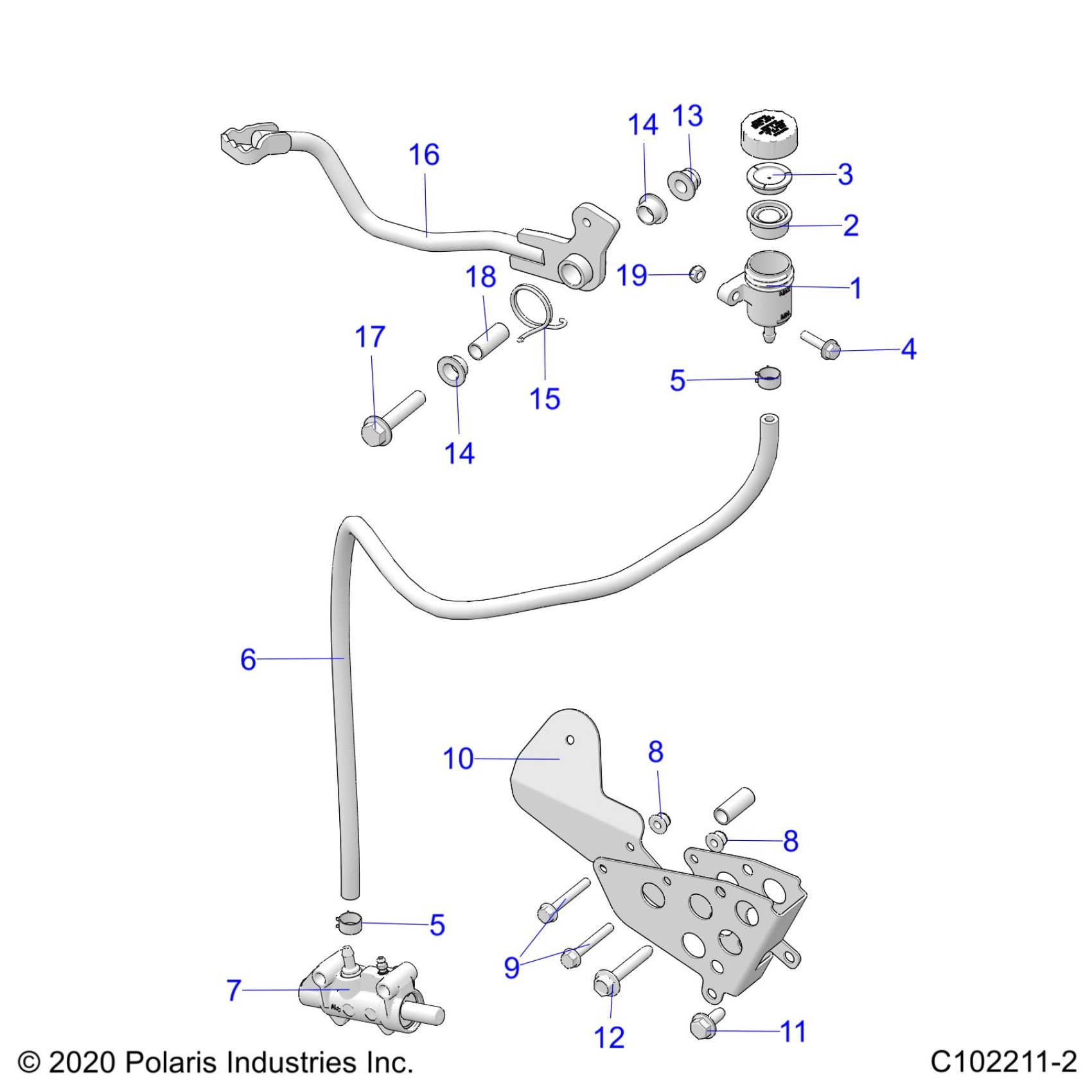

Polaris SPORTSMAN 850 HIGH LIFTER (R05) - A20SXN85A8/CA8 BRAKES, BRAKE PEDAL and MASTER CYLINDER - A20SXN85A8/CA8 (C102211-2) Diagram

#

Description
Price

1

ASM., RESERVOIR, BRAKE, REAR [INCL. 2,3, CAP]

1911224

$35.99

2

DIAPHRAGM, BRAKE RESERVOIR

5413262

$4.79

3

RING, BRAKE RESERVOIR

5437041

$5.59

4

BOLT, FLANGE, BLACK

7518576

$3.19

5

HOSE CLAMP, RED

7080003

$1.49

5

HOSE CLAMP, RED

7080003

$1.49

6

HOSE, RESERVOIR, BRAKE

1911267-826

$14.39

7

ASM-M/CYL,DIRMC,3/4",B/U-RING

1913033

$135.99

8

NUT-M6 FLANGE,NYLOC

7547274

$1.49

8

NUT-M6 FLANGE,NYLOC

7547274

$1.49

9

Screw

7517950

$5.59

10

BRKT-BRAKE MOUNT,BLK

5266924-329

$35.99

11

BOLT, FLANGE

7518555

$2.39

12

BOLT

7518677

$3.99

13

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

14

BUSHING, PIVOT, PEDAL

5433189

$3.99

14

BUSHING, PIVOT, PEDAL

5433189

$3.99

15

SPRING-TORSION,BRAKE

7041750

$8.79

16

WELD-LEVER,BRAKE,SPMN XP,BLK

1913360-067

$51.99

17

BOLT

7518559

$5.59

18

SPACER

5135720

$6.39

19

NUT-6MM X 1 NYLOK-Z

7546703

$1.49
