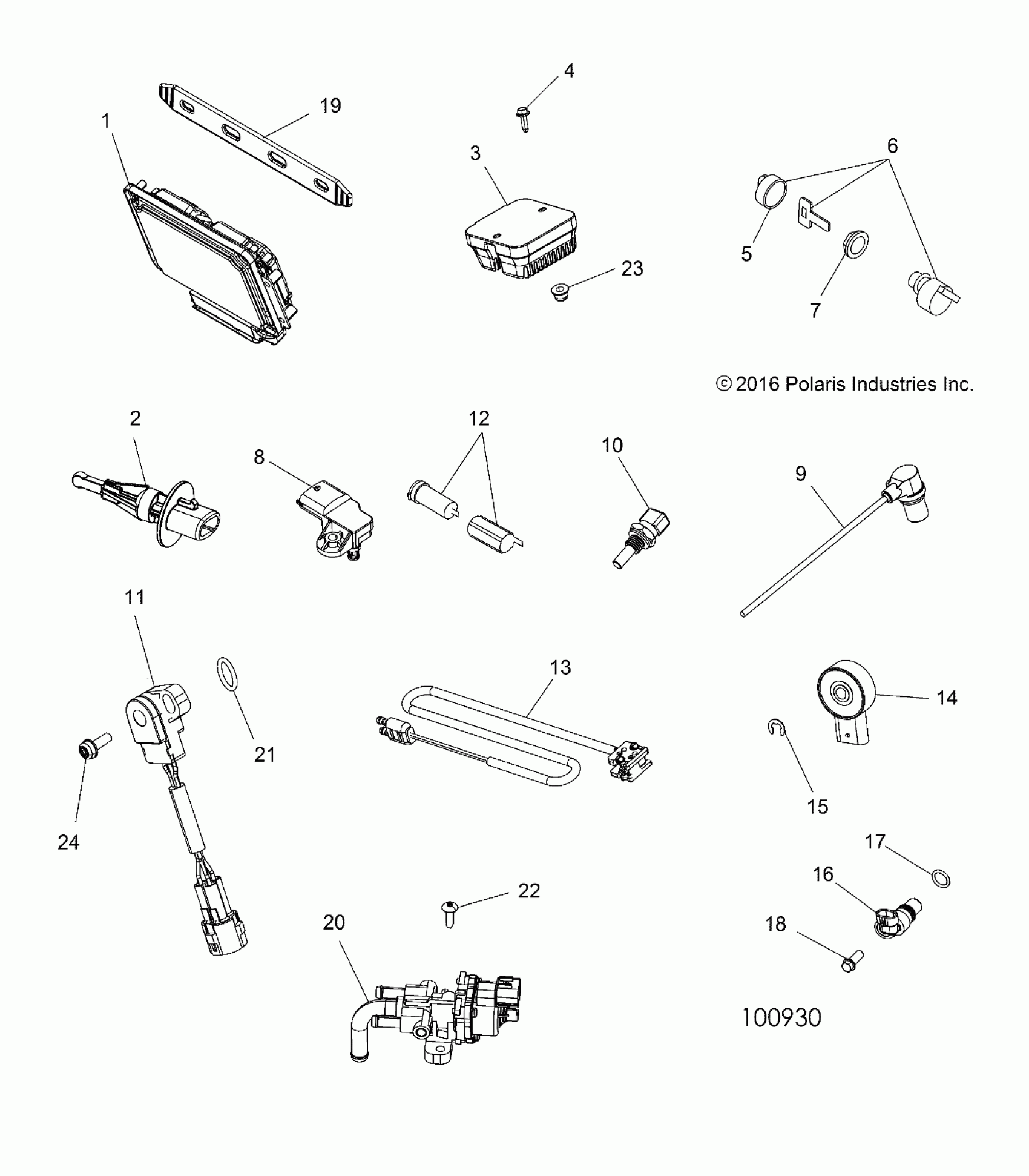

Polaris SPORTSMAN 850 HIGH LIFTER (R04) - A19SXN85A8 ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A19SXN85A8 Diagram

Description

Price

ECM, BASE, M17

4012838

$440.69

Sensor, Air Temp

2410687

$143.99

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$123.99

SCREW, FLANGE

7518576

$3.19

KEY SWITCH KEY COVER

5433534

$12.35

SWITCH, KEY, 3 POSITION [INCL. 5]

4015033

Unavailable

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

SENSOR-TMAP DSS3-TF

2411528

$93.08

SCREW

7518576

$3.19

SCREW

7518548

$1.59

Sensor, Crank Position

2411589

$79.99

SENSOR-THERMISTER

4010644

$87.13

SENSOR, THROTTLE POSITION

2412634

$243.99

RECEPTACLE-POD MNT,12 VOLT

4012393

$31.99

KIT, BRAKE LIGHT SWITCH

2202794

$72.84

SWITCH [GEAR POSITION]

3233835

Unavailable

RING, RETAINING

3233834

$10.39

SENSOR-SPEED,TRANS

4013908

Unavailable

O-RING

3234302

$7.19

SCREW

3234329

Unavailable

STRAP, ECU

5414193

$27.99

KIT, HARNESS, IAC

2878507

$135.99

VALVE, IAC

4013313

$175.99

O-RING

3131729

$11.99

SCREW

7519045

$3.19

NUT-M6 FLANGE,NYLOC

7547274

$1.49

SCREW

3131010

$4.79
