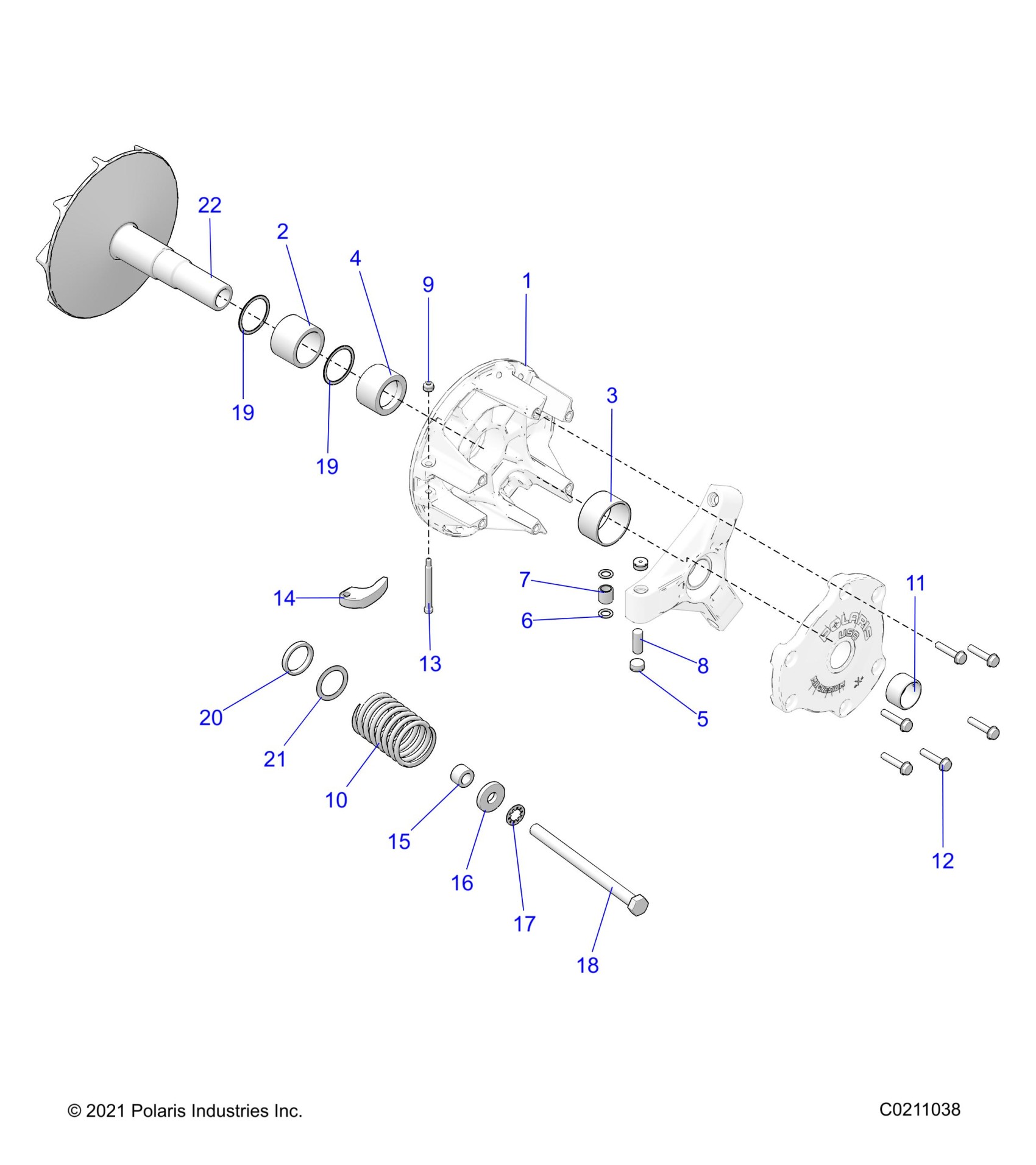

Polaris SPORTSMAN 850 HIGH LIFTER (R02) - A24SXN85A4 DRIVE TRAIN, PRIMARY CLUTCH - A24SXN85A4 (C0211038) Diagram

#

Description
Price

1

CLUTCH, DRIVE, EBS [INCL. 1-9,11-13,19]

1323378

$515.45

2

BEARING-NEEDLE

3514609

$35.99

3

BEARING-DU,1.75ID

3514492

$31.99

4

SPACER-CLUTCH

5633000

$27.99

5

BUTTON, CLUTCH, RUBBER BACKED

5439254

$7.99

6

WASHER-CLUTCH,SPIDER ROLLER

5438247

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

PIN-ROLLER

5020422

$2.39

9

NUT-10-24-FLEX LOC-Z

7541906

$3.19

10

SPRING-CLUTCH,58-135

7044263

$27.99

11

BEARING COVER, .75IN

3514684

$15.99

12

SCR-1/4-20X1.25 HX/FL GR5

7518062

$4.79

13

SCR-SH-1/4X2 SAE4037 BLKOX&OIL

7512266

$3.19

14

WEIGHT, SHIFT, 24-70, PM

5633136

$27.99

15

BUSHING-.475X.770X.50

5437682

$4.79

16

WASHER, FLAT

7556468

$3.99

17

Washer, Inter Lock

7556377

$3.19

18

Bolt, Clutch, LH

7518868

$9.59

19

WASHER-CLUTCH,VESPEL

7556335

$6.39

19

WASHER-CLUTCH,VESPEL

7556335

$6.39

20

SPACER, CLUTCH LIMITER

5438737

$3.99

21

SPACER, CLUTCH, LIMITER

5438963

$3.99

22

ASM-SHEAVE,STA,EBS,REV

1322797

$83.99
