Description

Price

1

ASM-TRANS,BOSS/LUK,SUPLOW

1334596

$2,265.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.19

3

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

3234309

$7.19

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

5

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30

3234634

$13.59

6

NUT, LOCK, HEX FLANGE NYLON 5/16-24

3233961

$2.79

7

WASHER, THRUST, 0.5 X 0.937 X 0.063

3234636

$7.99

8

WASHER, THRUST, .625 X 1.000 X 0.063

3234637

$11.19

9

WASHER, RIBBED

3235508

$3.99

10

PIN, DOWEL 6 X 20

3234330

$7.19

11

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

12

RING, RETAINING BASIC EXTERNAL

3233834

$10.39

13

RING RETAINING, IRR 7200-118

3233699

$7.19

14

RING, RETAINING, EXTERNAL SHR-66

3234318

$3.19

15

RING, RETAINING BASIC, EXTERNA

3234327

$7.19

16

RING, RETAINING BASIC, INTERNAL, 62MM

3234741

$9.59

17

RING, RETAINING BASIC, EXTERNAL, SHR-50

3234639

$10.39

18

RING, RETAINING, EXTERNAL USC-112

3234641

$12.79

19

SHAFT, INPUT 25T

3236308

$315.99

20

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

21

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.59

22

SHIM, 1.35 OD X 0.818 ID

3234643

$31.99

22

SHIM, 1.35 OD X 0.818 ID

3234643

$31.99

23

SHIM, 1.17 OD X 0.675 ID

3234644

$12.79

24

WASHER, THRUST, 1.568 OD X .1.110 ID

3234646

$23.99

25

WASHER, THRUST, � 33 X � 29 X 1.5

3234757

$11.19

26

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

26

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

28

BEARING

3233020

$47.99

29

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

30

BEARING BALL,6304STD 20X52X15

3234651

$15.99

31

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.99

32

BEARING, NEEDLE, SPLIT CAGE

3234759

$15.99

33

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.99

34

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

3234655

$15.99

35

BEARING, NEEDLE, 28 X 33 X 13

3234656

$15.99

36

SPRING, COMPRESSION, 0.648 O.D. X 1.33

3234687

$7.99

37

SPRING, WAVE, 1.60 ID X 0.375

3234688

$10.39

38

SPRING, PARK PAWL, TORSION

3234787

$23.99

39

SPRING, COMPRESSION, 0.45 OD X 1.58

3234790

$19.99

40

BELLHOUSING, MACH

3235196

$43.99

41

GEARCASE, MAIN, GTO MACH

3235615

$363.99

42

GEARCASE GTO , COVER, MACH.

3235729

$401.69

43

PAWL, PARK

3239339

$51.99

44

GEAR, SECTOR, 38T

3234694

$27.99

45

BULLET DETENT

3234695

$31.99

46

SPROCKET, 47 TOOTH

2204332

$171.99

47

SHAFT, OUTPUT REAR

3235195

$227.99

48

SHAFT, REVERSE, 61T

3235612

$219.99

49

GEAR, HELICAL 33T

3235613

$111.99

50

SHAFT, INPUT

3236557

$239.99

51

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$9.59

51

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$9.59

52

GEAR, 67T

3234706

$87.99

53

SPROCKET 48T 6-FACE

3236309

$51.99

54

SHAFT, SHIFT, BELLCRANK

3234712

$63.99

55

Rail, Shift, Shaft

3234714

$27.99

56

PLUG, DETENT

3234715

$35.99

57

RAIL, PARK SHAFT

3234716

$27.99

58

DOG, ENGAGEMENT, GTO, LOW

3234718

$175.99

59

PIPE, KNOCK

3234765

$12.79

59

PIPE, KNOCK

3234765

$12.79

60

FORK, SHIFT

3236310

$87.99

61

DOG, ENGAGEMENT, GTO, HIGH

3235190

$67.99

62

Sprocket, 19T

2204331

$83.99

63

DOG, ENGAGEMENT, GTO, REV/LOW

3235341

$171.99

64

FORK, SHIFT

3235342

$83.99

65

SUBASM., SWITCH SHAFT

3234767

$115.99

66

SUBASSY, OUTPUT, FRONT W/BEARINGS (#27)

3234723

$207.99

67

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25)

3235191

$307.99

68

KIT, GTO, PRIMARY SHIM PACK

2204268

$39.99

69

SUBASSY BEARING COVER W/SCREWS (#3)

3235198

$23.99

70

KIT, LUK, INPUT SHAFT SHIM PACK

2204343

$31.99

71

BELLCRANK, 15T SPLINE

3234724

$23.99

72

Deflector, Oil

3234725

$12.79

73

PLUG, M18 X 1.5

3234755

$27.99

73

PLUG, M18 X 1.5

3234755

$27.99

74

CHAIN, SILENT, TYPE 103 .25P X .48W X 58L

3235633

$251.99

75

CHAIN SILENT, 0.75 X .375P X 64P

3235245

$195.99

76

SWITCH, ROTARY, 2 PIN RESISTIVE

7662383

$111.99

77

SENSOR-SPEED,TRANS

4013908

Unavailable

78

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$35.99

78

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$35.99

78

SEAL, TRIPLE LIP, 0.984 X 1.85 X 0.315 VITON

3234892

$35.99

79

O-RING - N70, 9.5 MM X 2 MM

3236171

$10.55

80

LABEL, OIL

2877606

Unavailable

81

O-RING, -113 VITON

3233840

$11.19

82

O-RING, -014 VITON

3233828

$6.79

83

O-RING, 0.53 I.D X 0.082 WIDE

3234729

$13.75

84

SEAL, 35 X 62 X 8

3234769

$43.99

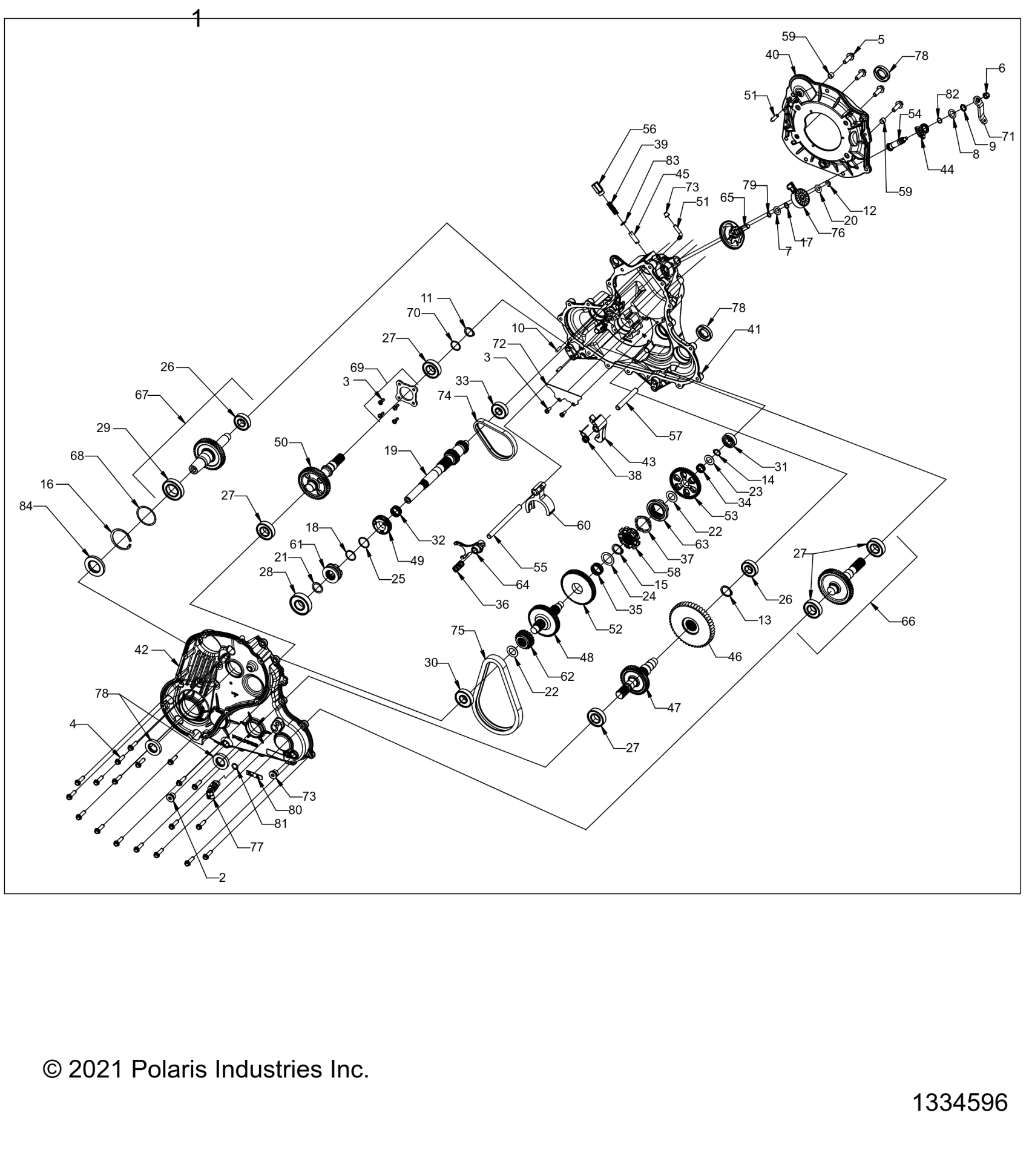

Polaris SPORTSMAN 850 HIGH LIFTER (R02) - A24SXN85A4 DRIVE TRAIN, MAIN GEARCASE - A24SXN85A4 (1334596) Diagram

ASM-TRANS,BOSS/LUK,SUPLOW

PLUG, M18 X 1.5 MAGNETIC

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

SCREW, 6-LOBE, PAN HD M6 X 1 X 16

SCREW-HEXFLANGEHEAD,M8X1.25X30

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30

NUT, LOCK, HEX FLANGE NYLON 5/16-24

WASHER, THRUST, 0.5 X 0.937 X 0.063

WASHER, THRUST, .625 X 1.000 X 0.063

WASHER, RIBBED

PIN, DOWEL 6 X 20

RING,RETAINING BASIC,EXTERNAL 0.984

RING, RETAINING BASIC EXTERNAL

RING RETAINING, IRR 7200-118

RING, RETAINING, EXTERNAL SHR-66

RING, RETAINING BASIC, EXTERNA

RING, RETAINING BASIC, INTERNAL, 62MM

RING, RETAINING BASIC, EXTERNAL, SHR-50

RING, RETAINING, EXTERNAL USC-112

SHAFT, INPUT 25T

WASHER,THRUST,0.446 X 0.88 X 0.025

WASHER, THRUST 1.300 X 0.995 X 0.065

SHIM, 1.35 OD X 0.818 ID

SHIM, 1.35 OD X 0.818 ID

SHIM, 1.17 OD X 0.675 ID

WASHER, THRUST, 1.568 OD X .1.110 ID

WASHER, THRUST, � 33 X � 29 X 1.5

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING

BEARING-BALL 6007 C3 35 X 62 X 14

BEARING BALL,6304STD 20X52X15

BEARING, BALL 6203 17 X 40 X 12

BEARING, NEEDLE, SPLIT CAGE

BEARING, BALL 6303, 17 X 47 X 14

BEARING, NEEDLE, CAGE ASSY 20 X 24 X 10

BEARING, NEEDLE, 28 X 33 X 13

SPRING, COMPRESSION, 0.648 O.D. X 1.33

SPRING, WAVE, 1.60 ID X 0.375

SPRING, PARK PAWL, TORSION

SPRING, COMPRESSION, 0.45 OD X 1.58

BELLHOUSING, MACH

GEARCASE, MAIN, GTO MACH

GEARCASE GTO , COVER, MACH.

PAWL, PARK

GEAR, SECTOR, 38T

BULLET DETENT

SPROCKET, 47 TOOTH

SHAFT, OUTPUT REAR

SHAFT, REVERSE, 61T

GEAR, HELICAL 33T

SHAFT, INPUT

TUBE, VENT 90 -1/4 INCH HOSE

TUBE, VENT 90 -1/4 INCH HOSE

GEAR, 67T

SPROCKET 48T 6-FACE

SHAFT, SHIFT, BELLCRANK

Rail, Shift, Shaft

PLUG, DETENT

RAIL, PARK SHAFT

DOG, ENGAGEMENT, GTO, LOW

PIPE, KNOCK

PIPE, KNOCK

FORK, SHIFT

DOG, ENGAGEMENT, GTO, HIGH

Sprocket, 19T

DOG, ENGAGEMENT, GTO, REV/LOW

FORK, SHIFT

SUBASM., SWITCH SHAFT

SUBASSY, OUTPUT, FRONT W/BEARINGS (#27)

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#46 & #25)

KIT, GTO, PRIMARY SHIM PACK

SUBASSY BEARING COVER W/SCREWS (#3)

KIT, LUK, INPUT SHAFT SHIM PACK

BELLCRANK, 15T SPLINE
