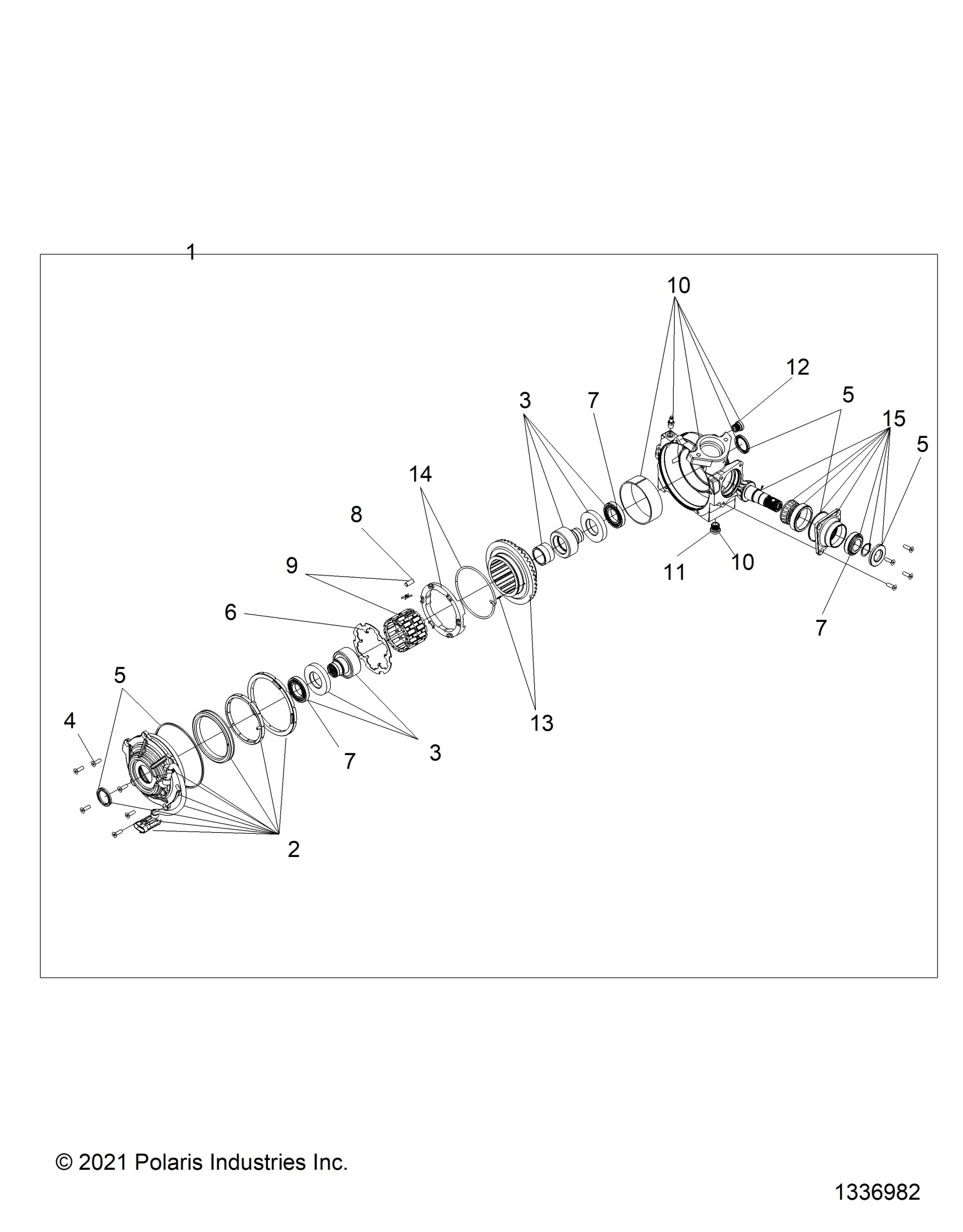

Polaris SPORTSMAN 850 HIGH LIFTER (R02) - A22SXN85A4 DRIVE TRAIN, FRONT GEARCASE INTERNALS - A22SXN85A4 (1336982) Diagram

ASM-GEARCASE,FRONT [INCL. 1-15]

1336982

$1,680.79

ASM., COVER OUTPUT [INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING]

3236667

$471.89

KIT, HUB ASSEMBLY [INCL. BEARINGS, BUSHING, HUBS, SPACERS]

3236675

$395.99

KIT, HUB ASSEMBLY [INCL. BEARINGS, BUSHING, HUBS, SPACERS]

3236675

$395.99

COVER, FASTENERS [INCL. QTY 10 SCREWS]

3235433

$35.99

COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

3239378

$71.99

COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

3239378

$71.99

COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]

3239378

$71.99

PLATE-4WD ARMATURE

3236048

$107.99

BEARINGS [INCL. ALL BEARINGS]

3239345

$83.99

BEARINGS [INCL. ALL BEARINGS]

3239345

$83.99

BEARINGS [INCL. ALL BEARINGS]

3239345

$83.99

K-CLUTCH ROLLS [INCL. SET OF 24]

3235624

$153.41

ASM-ROLL CAGE [INCL. CAGE, QTY 24 CLIPS]

3235625

$163.99

KIT, GEARCASE ASM. [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]

3239379

$695.19

KIT-PLUG,DRAIN

2203738

$35.99

KIT-PLUG,FILL

2203739

$39.99

ASM., GEAR HOUSING AND PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]

3239380

$659.99

KIT-TORSION,SPRING AND RETAINER

3235712

$35.99

ASM., COVER INPUT [INCL. O-RING, COVER, BUSHING, SEAL]

3239344

$171.59
